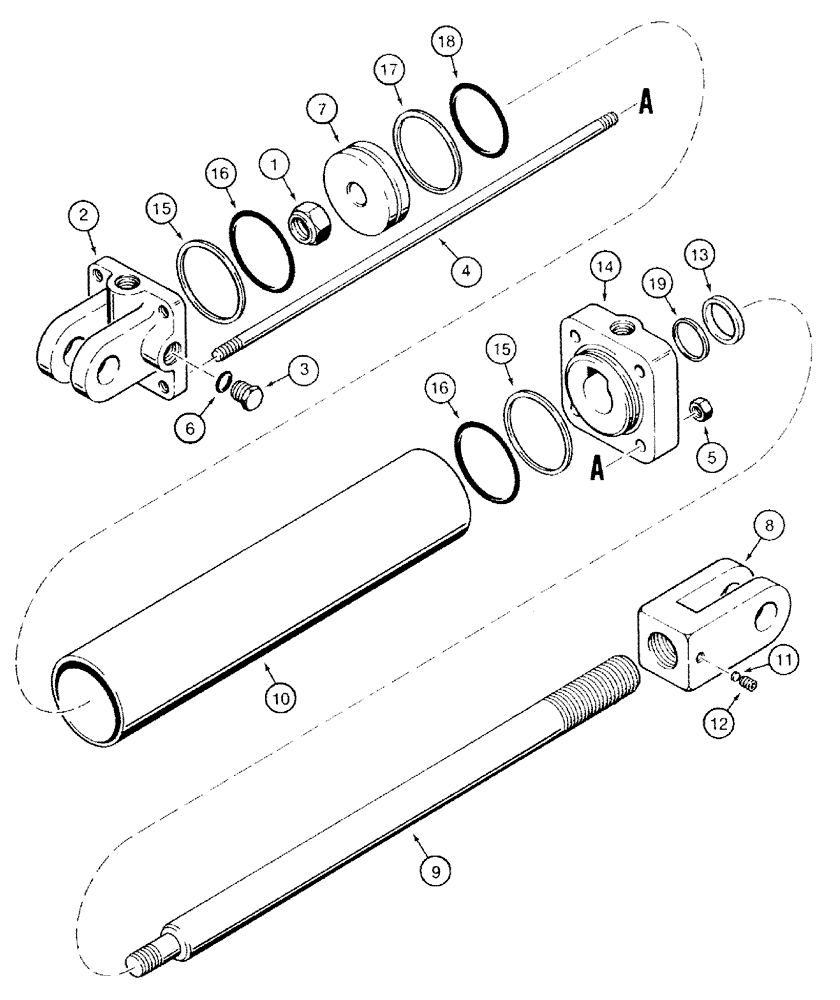

Запчасти Case IH 501 (8-13) - TRANSPORT LIFT CYLINDER, 1272149C91 (08) - HYDRAULICS

1272149C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift, Inc. REF 1 - 19

1шт.

No longer available, order 1272149C92 cylinder assembly

1шт.

1272149C92R

REMAN-HYD CYLINDER

501 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 1272149C91

1шт.

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

1272149C92

CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift, Inc. REF 1 - 19

1шт.

1272149C92R

REMAN-HYD CYLINDER

501 CASE IH DISK HARROW, ASSEMBLY, transport lift

1шт.

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

1

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

2

1282334C1

HEAD

CAP - end, cylinder

1шт.

3

214389

PLUG,3/4" - 16 ORB

1шт.

4

1282287C1

TIE-ROD,1/2" - 13 x 28.656"

BOLT - tie, cylinder

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch OD

1шт.

7

85179C1

PISTON

- cylinder

1шт.

8

145240C1

CLEVIS,1 -1/2" - 12

- rod

1шт.

9

1282397C1

PISTON ROD

ROD - piston

1шт.

10

NSS

NOT SOLD SEPARAT

TUBE - cylinder, order cylinder assembly

1шт.

11

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

12

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket, 3/8 NC x 3/8 inch

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

14

386764A1

CYLINDER BLOCK

GLAND - cylinder

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 x 3-1/2 inch, end cap and gland

2шт.

17

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 3 x 3-3/16 inch, piston

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

79978C2

SEAL KIT

KIT - cylinder repair, Inc. REF 6, 13 and 15 - 19

1шт.
