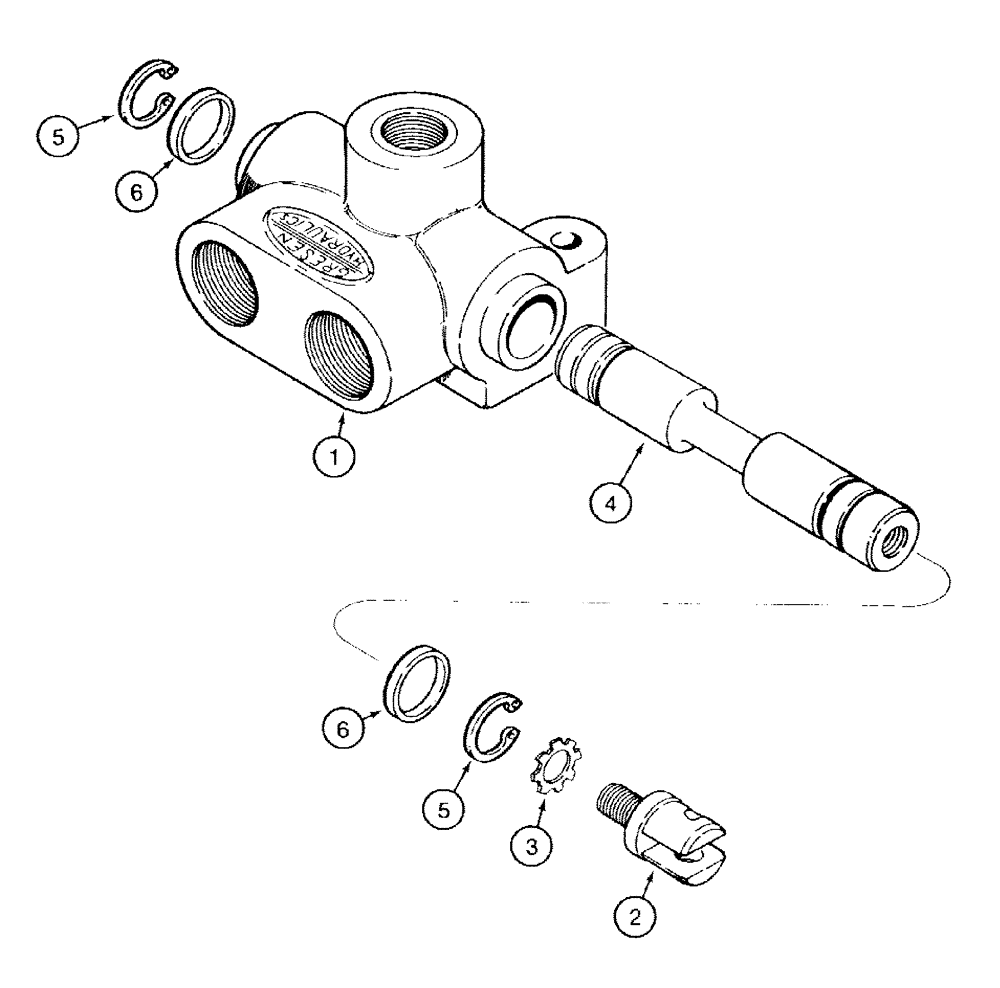

Запчасти Case IH 501 (8-07) - DIVERTER VALVE ASSEMBLY (08) - HYDRAULICS

478887R91

VALVE

ASSEMBLY - diverter, Inc. REF 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - diverter valve

1шт.

2

D23694

ADAPTER

EYE - spool

1шт.

3

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

5

100-1375

SNAP RING,#75, Ext

Ring, Snap, , Valve spool #75, Ext

2шт.

6

238-5113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

Square section, Valve spool -113, 70 Duro, .549" ID x .103" Thk

2шт.
