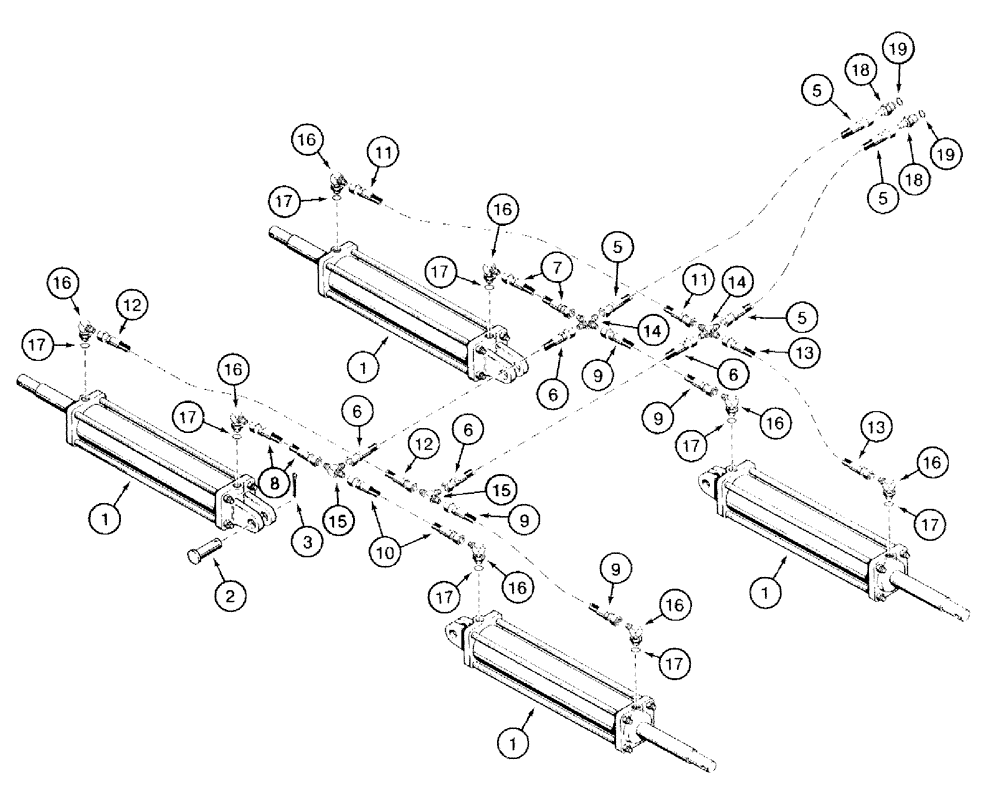

Запчасти Case IH 501 (8-06) - WING LIFT HYDRAULIC CIRCUIT, 3/8 INCH ID SUPPLY AND RETURN HOSES,115 INCH HOSE CROSS TO TEE, ITEM 6 (08) - HYDRAULICS

1

1282325C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, wing lift

4шт.

See Figure 8-16 for service parts

1шт.

2

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

PIN - clevis, 1-1/4 x 3-1/4 inch

4шт.

3

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

5

139654C2

HYDRAULIC HOSE

HOSE - 3/8 inch ID x 125 inch long, Serial Range: tractor-cross

2шт.

6

129768C1

HYDRAULIC HOSE

HOSE - 1/4 inch ID x 115 inch long, cross to tee, if used

2шт.

6

139517C1

HYDRAULIC HOSE

HOSE - 1/4 inch ID x 80 inch long, cross to tee, if used

2шт.

7

147875C1

HYDRAULIC HOSE,6.40 mm ID x 890.00 mm, SAE 100R1

- Cross to closed end of LH front wing lift cylinder 6.40 mm ID x 890.00 mm, SAE 100R1

1шт.

8

1284278C1

HYDRAULIC HOSE

HOSE - 1/4 inch ID x 41 inch long, tee to closed end of left-hand rear wing lift cylinder

1шт.

9

129908C1

HYDRAULIC HOSE

HOSE - 1/4 inch ID x 55 inch long, cross to closed end of right-hand front wing lift cylinder and tee to rod end of right-hand rear wing lift cylinder

2шт.

10

147878C1

HOSE

- 1/4 inch ID x 65 inch long, tee to closed end of right-hand rear wing lift cylinder

1шт.

11

97478C1

HOSE,6.35 mm ID x 1905.00 mm, SAE 100 R1

Cross to Rod End of Left-Hand Front Wing Lift Cylinder 6.35 mm ID x 1905.00 mm, SAE 100 R1

1шт.

12

97479C1

HYDRAULIC HOSE,6.35 mm ID x 2159.00 mm, SAE 100 R1

Tee to Rod End of Left-Hand Rear Wing Lift Cylinder 6.35 mm ID x 2159.00 mm, SAE 100 R1

1шт.

13

147876C1

HYDRAULIC HOSE

HOSE - 1/4 inch ID x 45 inch long, cross to rod end of right-hand front wing lift cylinder

1шт.

14

218-653

4 WAY CONNECTION,9/16"-18, 37 Degree

CROSS - special

2шт.

15

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare

2шт.

16

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 deg adj, 9/16-18 flared x 3/4-16 inch O-ring, Incl. Ref 17

8шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring

2шт.

19

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

529080R1

CLAMP

- hose

6шт.

424-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 2

- hex, 1/2 NC x 1-1/4 inch

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

6шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.
