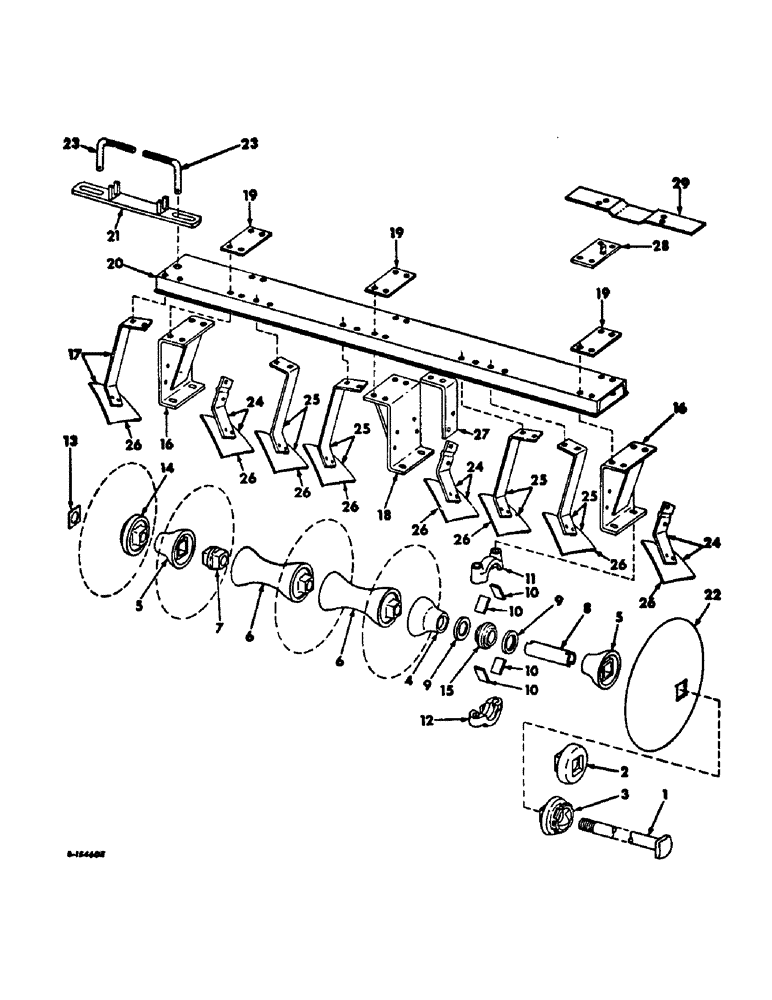

Запчасти Case IH 500 (Q-08) - FRONT AND REAR GANGS AND DISK, 1965 TO 1971

1

489249R1

BOLT, arbor, 4 for unit A

1шт.

1

486236R1

BOLT

arbor, 4 for unit B

1шт.

1

486202R1

BOLT,1 1/2" - 6 x 78.2"

arbor, 4 for unit C

1шт.

1

486237R1

BOLT,1 1/2" - 6 x 88.7"

arbor, 4 for unit D

1шт.

131132

REAR VIEW MIRROR

1 1/2"

4шт.

425-1024

NUT,1 1/2"-6, G5

1-1/2-6 hex.

4шт.

2

481324R3

WASHER

bumper

2шт.

3

489252R1

WASHER, arbor, 2 for unit A

1шт.

3

481325R1

WASHER, arbor, 2 for units B, C and D

1шт.

3

84151572

SLOTTED NUT

Castle nut SLOTTED, 1 1/2-6 GR 5 ZND

1шт.

4

481326R1

SPOOL

bearing, concave, 8 for unit A, 10 for unit 8, 12 for units C and D

1шт.

5

481327R1

SPOOL

bearing, convex, 8 for unit A, 10 for unit B, 12 for units C and D

1шт.

6

961344R1

SPOOL

spacing, order spool, 490536R1

1шт.

6

490536R1

SPOOL

spacing, 12 for unit A, 14 for unit B, 16 for unit C, 20 for unit D

1шт.

7

481328R1

LOCK ASSY

DRIVER, lock, 6 for units A and B, 8 for units C and D

1шт.

8

481329R1

TUBE

driver, 8 for unit A, 10 for unit B, 12 for units C and D

1шт.

9

486274R1

WASHER,55.63mm ID x 85.85mm OD x 3.17mm Thk

guard, 16 for unit A, 20 for unit B, 24 for units C and D

1шт.

10

481334R1

STRIP

PAD, bearing mounting, 32 for unit A, 40 for unit B, 48 for units C and D

1шт.

11

481335R1

BEARING CAP,1.88" ID x 2.65" OD x 2.5"

CAP, mounting upper bag, 8 for unit A, 10 for unit B, 12 for units C and D

1шт.

12

481336R1

CYLINDER END CAP

CAP, mounting lower brg, 8 for unit A, 10 for unit B, 12 for units C and D

1шт.

17888R1

BOLT

3/4 x 6 C-Z hex-hd mach, 2 per cap

1шт.

467750R1

WASHER

1-1/2 x 25/32 x 11 C-Z ga, 2 per cap

1шт.

131142

LOCK WASHER,3/4"

WASHER, LOCK, , 2 per cap 3/4"

1шт.

280954

NUT,3/4"-10, G5

2 per cap 3/4"-10, G5

1шт.

13

488836R1

STRIP

nut

4шт.

14

961342R1

WASHER

nut

4шт.

15

ST627

BALL BEARING,2.1875" ID x 3.937" OD x 2.187"

BEARING, ball, 8 for unit A, 10 for unit B, 12 for units C and D

1шт.

REF #15 - IF DLR NEEDS FLANGED BEARING, CAN ORDER ST740B

1шт.

16

481337R91

STANDARD ASSY, bearing, 6 for units A and B, 8 for units C and D

1шт.

17

481306R92

BLADE

ASSY, offset LH, harrows w/end disk scraper att

2шт.

17

481307R92

BLADE

ASSY, offset Rh, harrows w/end disk scraper att

2шт.

486181R1

BOLT

1/2-13 x 4 C-Z hex-hd mach

4шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. lock

4шт.

18

481330R91

STANDARD ASSY, offset brg, 2 for unit A, 4 for units B, C and D

1шт.

19

481333R2

BAR, reinforcing, 6 for unit A, 8 for unit B, 10 for units C and D

1шт.

18842R1

BOLT,Hex, 3/4"-10 x 4 1/2", G2

3/4 x 4-1/2 C-Z hex-hd mach, 4 per bar

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 4 per bar

1шт.

280954

NUT,3/4"-10, G5

4 per bar 3/4"-10, G5

1шт.

20

489253R1

BAR ASSY, rear gang LH, for unit A

1шт.

20

489254R1

BAR ASSY, rear gang RH, for unit A

1шт.

20

489258R1

BAR ASSY, front gang LH, for unit A

1шт.

20

489259R1

BAR

ASSY, front gang RH, for unit A

1шт.

20

486243R1

BAR ASSY, gang front LH, for unit B

1шт.

20

486244R1

BAR ASSY, gang front RH, for unit B

1шт.

20

486248R1

BAR ASSY, gang rear LH, for unit B

1шт.

20

486249R1

BAR ASSY, gang rear RH, for unit B

1шт.

20

486253R1

BAR ASSY, gang LH, 2 for unit C

1шт.

20

486254R1

BAR ASSY, gang RH, 2 for unit C

1шт.

20

486238R1

BAR ASSY, gang LH, 2 for unit D

1шт.

20

486239R1

BAR ASSY, gang RH, 2 for unit D

1шт.

21

468601R11

BAR

ASSY, angling

1шт.

22

482972R1

DISC

BLADE, 22 in. x 1/4 in. nothced disk

1шт.

22

960795R1

DISC

BLADE, 22 in. x 7 ga notched disk

1шт.

22

482971R1

DISC

BLADE, 22 in. x 1/4 in. solid disk

1шт.

22

967794R1

BLADE, 22 in. x 7 ga solid disk

1шт.

22

956954R1

DISC

BLADE, 24 in. x 6 ga notched disk

1шт.

22

960807R1

DISC

BLADE, 24 in. x 7 ga notched disk

1шт.

22

963863R1

DISC

BLADE, 24 in. x 1/4 in. notched disk

1шт.

22

956819R1

DISC

BLADE, 24 in. x 6 ga solid disk

1шт.

22

960806R1

DISC

BLADE, 24 in. x 7 ga solid disk

1шт.

22

963862R1

DISK HARROW

BLADE, 24 in. x 1/4 in. solid disk, 24 for unit A, 28 for unit B, 32 for unit C, 36 for unit D

1шт.

23

468603R1

ROD,7/8" - 9 x 6 23/64"

BOLT, angling

2шт.

21224R1

WASHER

1-1/2 x 29/32 x 7 C-Z ga

4шт.

426898

NUT,Jam, 7/8"-9, G5

7/8-9 C-Z hex. jam

4шт.

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot.

2шт.

24

481301R92

BLADE

ASSY, scraper LH

1шт.

24

481302R92

BLADE

ASSY, scraper RH, 4 for unit A, 6 for units B, C and D

1шт.

486180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

BOLT, 1/2-13 x 2 C-Z sq-nk crg, 2 per blade assy

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. lock, 2 per blade assy

1шт.

25

481306R92

BLADE

ASSY, offset LH

1шт.

25

481307R92

BLADE

ASSY, offset RH, 6 for units A and B, 8 for unit C, 10 for unit D

1шт.

486181R1

BOLT

1/2-13 x 4-1/2 C-Z sq-nk crg, 2 per blade assy

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. lock, 2 per blade assy

1шт.

26

481305R3

BLADE

scraper, 1 per blade assy

1шт.

106947

RIVET

1/2 x 1-3/8 truss-hd, 1 per blade

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 C-Z sq-nk crg

1шт.

138350R1

WASHER

17/32 x 1-1/4 x 3/16

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. lock, 1 per blade

1шт.

27

487309R1

ANGLE, inner scraper support LH

1шт.

27

487310R1

ANGLE, inner scraper support RH, for unit B w/o third brg att

1шт.

18841R1

BOLT,Hex, 3/4"-10 x 4", G2

3/4-10 x 4 C-Z hex-hd mach

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

3/4-10 C-Z hex.

4шт.

28

489250R1

BAR ASSY, reinforcing

2шт.

29

489251R1

BAR, spreader

1шт.
