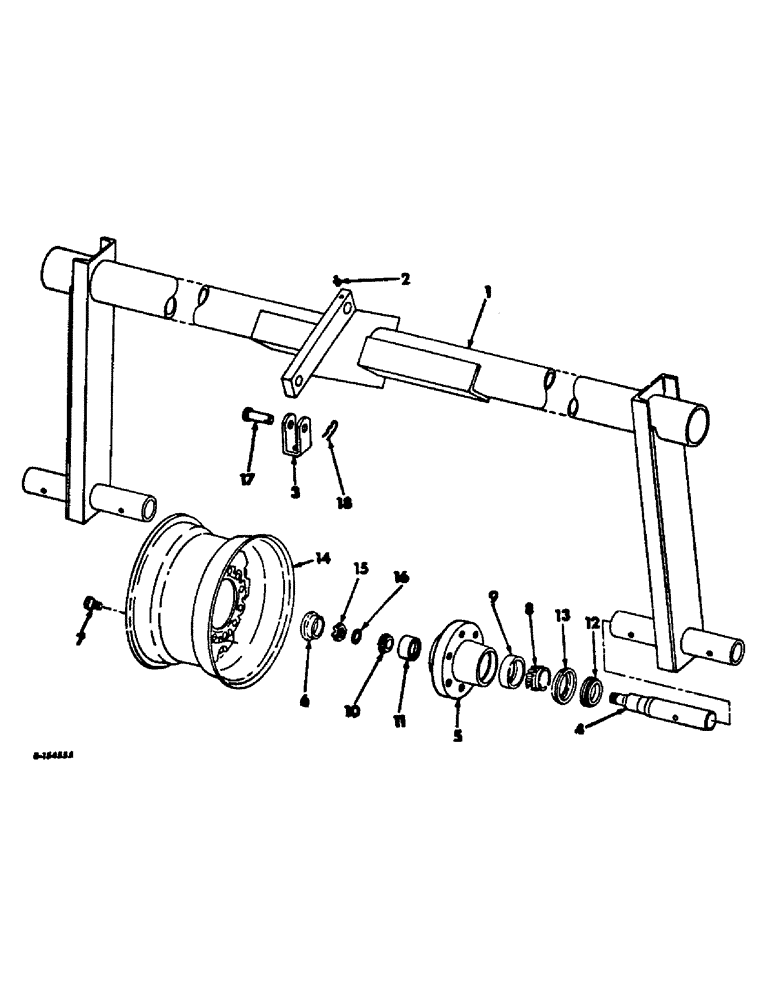

Запчасти Case IH 500 (Q-07) - AXLE WHEEL AND HUB

1

481314R92

AXLE ASSY

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8-16 x 3 C-Z hex-hd cap

2шт.

451009

NUT, 3/8-16 C-Z hex. lock

2шт.

2

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive type lub

1шт.

3

468580R1

CLEVIS

transport

1шт.

18842R1

BOLT,Hex, 3/4"-10 x 4 1/2", G2

3/4-10 x 4-1/2 C-Z hex-hd mach

1шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 C-Z hex. lock

1шт.

4

478375R1

SPINDLE

wheel

2шт.

5

465493R1

HUB

wheel

2шт.

6

663908R1

CAP

hub

2шт.

7

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel, will work for 351079R1

12шт.

8

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Roller, outer

2шт.

9

371883R1

BEARING CUP

Roller outer

2шт.

10

618023R1

CONE

roller bearing innner

2шт.

11

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Roller inner

2шт.

12

667599R91

OIL SEAL

oil

2шт.

13

667564R1

RING

wear sleeve

2шт.

14

481344R91

WHEEL

ASSY, 14 x 8KB, disk & rim, for 9.50, 14 tire

2шт.

14

481345R91

RIM

WHEEL ASSY, 14 x 6KB, disk & rim, for 9.50, 14 tire

2шт.

14

614424R91

WHEEL ASSY.

WHEEL ASSY, 15 x 6LB, disk & rim, for 7.60, 15 tire

2шт.

14

463034R1

RIM

WHEEL, dual 14 x 5KB, for 7.50 x 14 tire 4 ply

4шт.

15

69442D

NUT

3/4-16 slt hex. jam

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

16

366112R1

WASHER

1-1/4 x 25/32 x 11 ga C-Z

2шт.

17

F18422

AXLE PIN

PIN, 3/4 x 2-1/4 std-hd

1шт.

18

520175R1

CLIP

PIN, quick attachable cot.

1шт.
