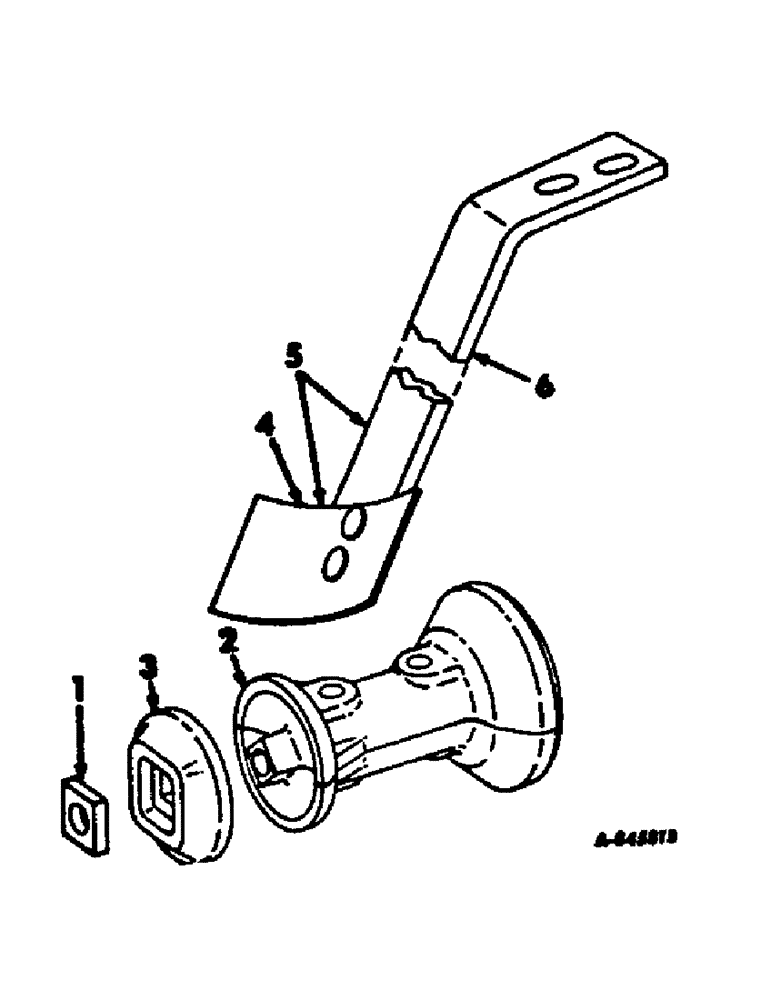

Запчасти Case IH 500 (Q-06) - FURROW FILLER AND FILLER DISK SCRAPER

1

466986R1

BLOCK

SPACER, arbor bolt head washer

2шт.

2

482970R2

SPOOL

furrow filler

4шт.

19475R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 2

1/2-13 x 3-1/4 C-Z hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

18840R1

BOLT

3/4-10 x 2-3/4 C-Z hex-hd mach

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

2шт.

3

P4165

WASHER, arbor bolt head

2шт.

4

483096R1

STRAP

BLADE, scraper

2шт.

106931

RIVET, 3/8 x 1-1/8 truss-hd

4шт.

5

483092R91

SCRAPER ASSY, LH

1шт.

5

483093R91

SCRAPER ASSY, RH

1шт.

6

483094R1

BRACKET, scraper LH

1шт.

6

483095R1

BRACKET, scraper RH

1шт.

18843R1

BOLT

3/4-10 x 5 C-Z hex-hd mach

4шт.

467750R21

WASHER, 25/32 x 1-1/2 x 11 ga C-Z

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.
