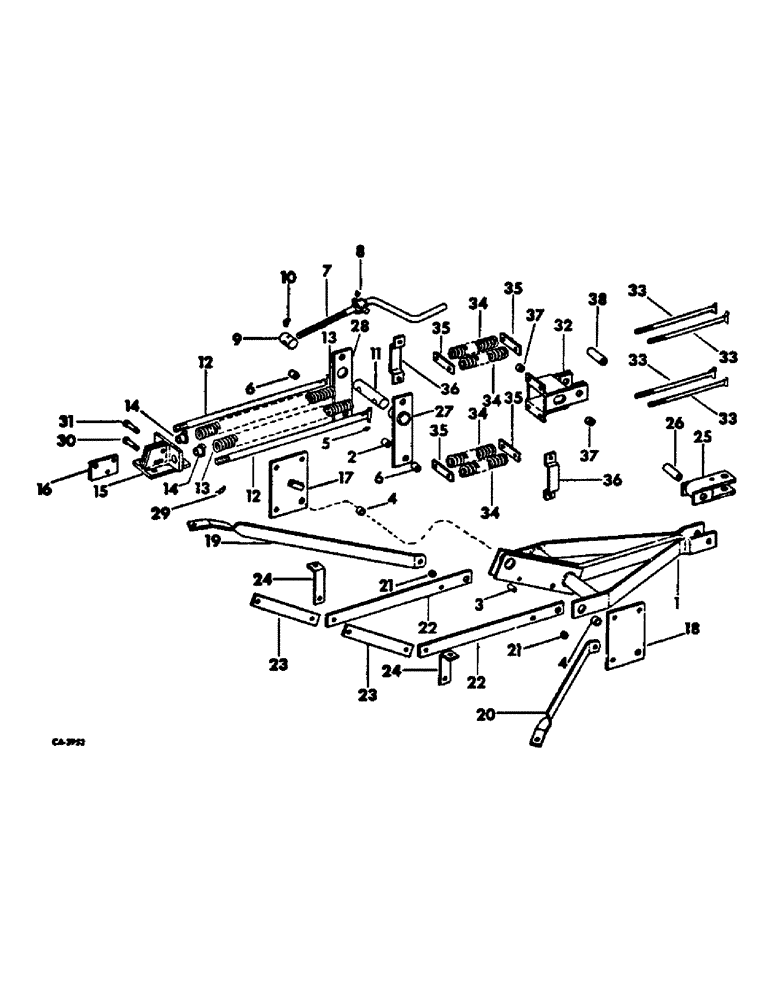

Запчасти Case IH 500 (Q-03) - HITCH, 1965 TO 1969

1

471175R91

TRAILER HITCH

HITCH ASSY

1шт.

18801R1

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 2

7/16-14 x 2-3/4 C-Z hex-hd mach

1шт.

18842R1

BOLT,Hex, 3/4"-10 x 4 1/2", G2

3/4-10 x 4-1/2 C-Z hex-hd mach

1шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

1шт.

280954

NUT,3/4"-10, G5

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

271818

SPRING,Hex, 7/8" - 9 x 2 3/4", Gr 5

SCREW, 7/8-9 x 2-3/4 C-Z hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

131047

WASHER,7/8"

LOCK, 7/8"

2шт.

2

582542R1

SPACER,3/4" Pipe x 1 1/4"

3/4 x 1-1/4 pipe

1шт.

3

K11064

SPACER,3/8" Pipe x 1 1/4"

3/8 x 1-1/4 pipe

1шт.

4

468528R2

BUSHING

hitch pivot

2шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

1шт.

6

468530R1

SPACER,3/4" Pipe x 9/16"

BUSHING

2шт.

7

468531R12

SCREW

ASSY, hitch

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

1шт.

9

468533R1

LINK

SWIVEL, crank

1шт.

10

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 45 deg angle lub

1шт.

11

468534R1

PIVOT, spring guide, order pivot 489127R1

1шт.

11

489127R1

PIN,50.8mm OD x 208.28mm L

PIVOT, spring guide

1шт.

12

468535R2

GUIDE

spring

2шт.

426899

NUT,Jam, 1"-8, G5

1-8 C-Z hex. jam

4шт.

21162R1

WASHER

2 x 1-1/32 x 7 ga C-Z

2шт.

13

481285R1

VALVE SPRING

SPRING, hitch 37-1/2 coils

2шт.

14

468537R1

SPRING SEAT

BUSHING, hitch spring

2шт.

15

481286R11

SUPPORT ASSY, cyl

1шт.

18838R1

BOLT, 3/4-10 x 2 C-Z hex-hd mach Hex, 3/4"-10 x 2", G2

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

280954

NUT,3/4"-10, G5

4шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

16

481287R1

BLOCK, cyl

1шт.

17

471180R91

BRACKET

PLATE ASSY, hitch LH

1шт.

280954

NUT,3/4"-10, G5

2шт.

21204R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8

SCREW, 3/4-10 x 1-3/4 C-Z hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

18

471181R91

PLATE

ASSY, hitch RH

1шт.

280954

NUT,3/4"-10, G5

2шт.

21204R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8

SCREW, 3/4-10 x 1-3/4 C-Z hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

19

481288R1

BRACE, diagonal LH, order brace 481472R1

1шт.

19

481472R1

BRACE

diagonal LH

1шт.

20

481289R1

BRACE, diagonal RH, order brace 481473R1

1шт.

20

481473R1

BRACE

diagonal RH

1шт.

21

PO10780

SPACER,3/4" Pipe x 7/16"

2шт.

22

481290R1

BAR, hitch

2шт.

23

481291R1

BAR, hitch short

2шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8-11 x 1-1/2 C-Z hex-hd mach

2шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8-11 x 2 C-Z hex-hd mach

2шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8-11 x 2-1/2 C-Z hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

6шт.

24

481292R1

BRACKET, hitch brace support

2шт.

18839R1

BOLT,Hex, 3/4" x 2 1/4"

3/4-10 x 2-1/4 C-Z hex-hd mach

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

3/4-10 C-Z hex.

2шт.

25

468546R11

CLEVIS

ASSY, hitch

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 C-Z hex-hd cap

1шт.

608595R1

NUT

5/8-11 C-Z hex. lock

1шт.

26

468548R1

BUSHING

hitch clevis

1шт.

20577R1

BOLT,Hex, 7/8" - 9 x 7", Gr 5

SCREW, 7/8-9 x 7 C-Z hex-hd cap

1шт.

21215R1

BOLT,7/8" x 7 1/4", Gr 1

7/8-9 x 7-1/4 C-Z hex-hd cap

1шт.

462250R1

NUT

7/8-9 C-Z hex. lock

2шт.

21212R1

WASHER

29/32 x 2 x 11 ga C-Z

2шт.

27

483184R91

ARM ASSY, adjusting

1шт.

28

483185R1

BAR

adjusting arm

1шт.

29

517843R1

COTTER PIN

PIN, 3/16 x 2-7/8 quick attachable cot.

1шт.

30

3490B

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2-1/4 std-hd

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

31

3490B

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2-1/4 std-hd

1шт.

32

481293R91

HITCH ASSY

1шт.

33

481295R1

ROD,3/4" - 10 x 15 1/2"

BOLT, spring

4шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 C-Z hex. lock

4шт.

34

512505R1

SPRING

hitch

4шт.

35

481299R1

BAR

spring back-up

4шт.

36

481300R1

CLAMP

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

37

468528R2

BUSHING

hitch

2шт.

38

468548R1

BUSHING

hitch clevis

1шт.

21215R1

BOLT,7/8" x 7 1/4", Gr 1

7/8-9 x 7-1/4 C-Z hex-hd mach

1шт.

462250R1

NUT

7/8-9 C-Z hex. lock

2шт.

20577R1

BOLT,Hex, 7/8" - 9 x 7", Gr 5

SCREW, 7/8-9 x 7 C-Z hex-hd cap

1шт.

21212R1

WASHER

29/32 x 2 x 11 ga C-Z

2шт.
