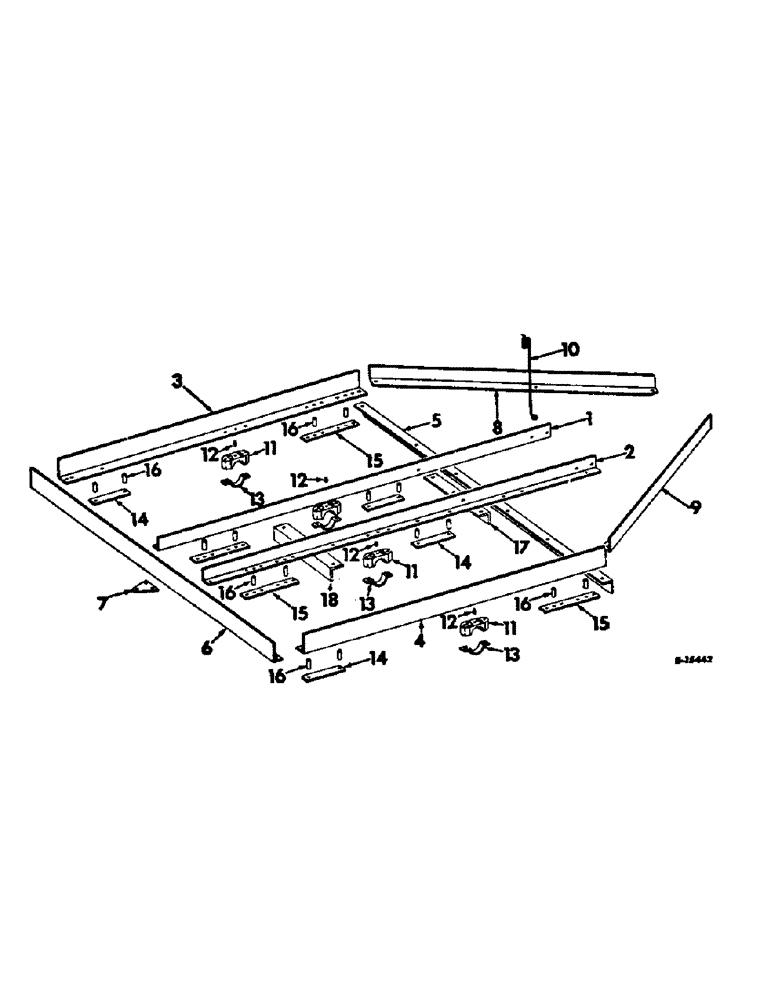

Запчасти Case IH 500 (Q-02) - MAIN FRAME AND RELATED PARTS

1

481275R1

ANGLE, inner frame LH

1шт.

2

481276R1

ANGLE, inner frame RH

1шт.

3

481277R1

ANGLE, outer framer LH

1шт.

4

481278R1

ANGLE, outer frame RH

1шт.

5

481279R1

ANGLE, front frame

1шт.

18837R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2

3/4-10 x 1-3/4 C-Z hex-hd mach

2шт.

18838R1

BOLT, 3/4-10 x 2 C-Z hex-hd mach Hex, 3/4"-10 x 2", G2

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

6

481280R1

ANGLE, rear frame

1шт.

148837R1

BOLT, 3/4-10 x 1-3/4 C-Z hex-hd mach

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

22086

NUT

3/4-10 C-Z hex.

4шт.

7

468514R1

BAR

PLATE, rear hitch

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8-11 x 1 3/4 C-Z hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

8

481281R1

ANGLE, diagonal LH

1шт.

18837R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2

3/4-10 x 1-3/4 C-Z hex-hd mach

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

9

481282R1

ANGLE, diagonal RH

1шт.

18837R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2

3/4-10 x 1-3/4 C-Z hex-hd mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

10

651793R1

SUPPORT

flexible hose

1шт.

18839R1

BOLT,Hex, 3/4" x 2 1/4"

3/4-10 x 2-1/4 C-Z hex-hd mach

1шт.

467750R1

WASHER

1-1/2 x 25/32 x 11 ga C-Z

1шт.

280954

NUT,3/4"-10, G5

1шт.

11

468517R1

BEARING

wheel shaft, order bearing 491921R1

4шт.

11

491921R1

CYLINDER END CAP

BEARING, wheel shaft

4шт.

12

126121

LUBE NIPPLE,1/8"-27 NPT x 1.36" lg

FITTING, 1/8-27 str lub, used w/bearing 468517R1

4шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub, used w/bearing 491921R1, wheel shaft bearing

1шт.

13

468518R1

CAP

wheel shaft bearing

4шт.

18842R1

BOLT,Hex, 3/4"-10 x 4 1/2", G2

3/4-10 x 4-1/2 C-Z hex-hd mach

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

14

481283R1

BAR, gang bar short clamp

4шт.

14

489330R1

BAR, gang bar short clamp, will work for 481283R1

4шт.

18842R1

BOLT,Hex, 3/4"-10 x 4 1/2", G2

3/4-10 x 1-1/2 C-Z hex-hd mach

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

15

481284R1

BAR, gang bar long clamp

4шт.

18842R1

BOLT,Hex, 3/4"-10 x 4 1/2", G2

3/4-10 x 4-1/2 C-Z hex-hd mach

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

16

468521R1

SPACER

gang bar

16шт.

18842R1

BOLT,Hex, 3/4"-10 x 4 1/2", G2

3/4-10 x 4-1/2 C-Z hex-hd mach

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

17

468522R2

ANGLE, cyl support

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

18

468579R1

ANGLE

transport bracket, order angle 489273R1

2шт.

18

489273R1

ANGLE

transport bracket

1шт.

18837R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2

3/4-10 x 1-3/4 C-Z hex-hd mach

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.
