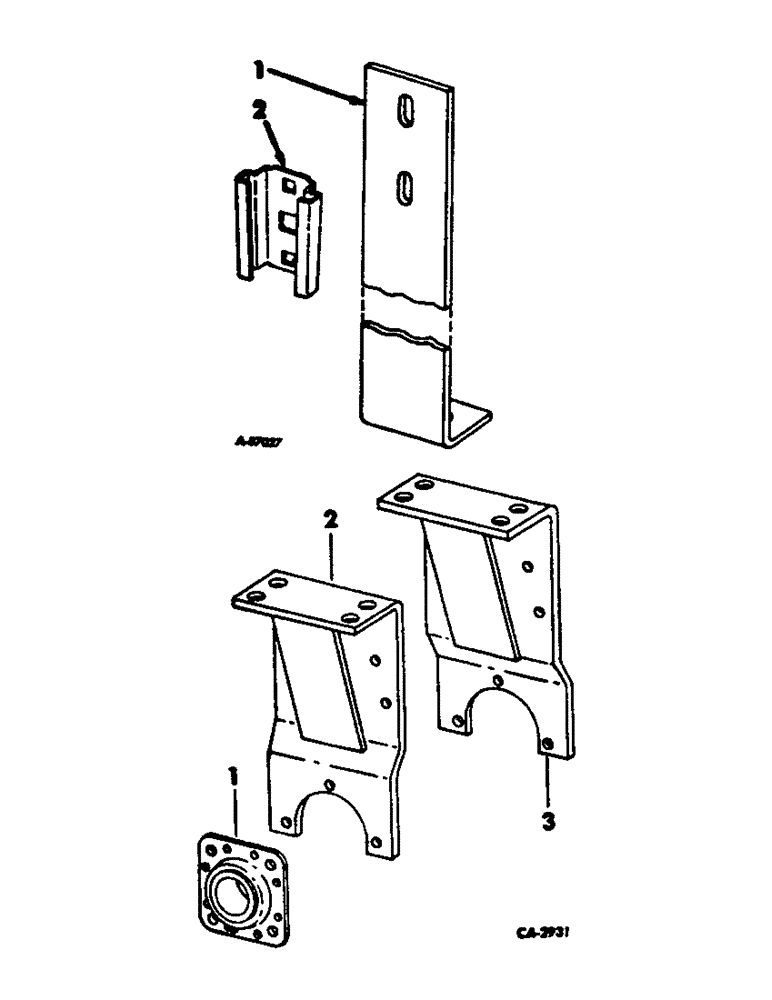

Запчасти Case IH 500 (Q-19[B]) - PRODUCT GRAPHICS

1

521996R3

SUPPORT

BRACKET, S, M, V socket

1шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8-11 x 2-1/4 znd hex-hd mach

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

2

398976R1

BRACKET

SOCKET, safety lamp bracket, will work for 363919R1

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

1

ST740

BEARING

ball

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 znd hex-hd mach

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

2

546677R1

STANDARD ASSY, bearing

1шт.

3

546676R1

STANDARD ASSY, offset brg

1шт.

547497R91

PACKAGE

product graphics, consist of

1шт.

2753254R1

PRODUCT GRAPHIC

model designation (NSS)

1шт.

547495R19

PACKAGE, product graphics

1шт.

2753985R1

PRODUCT GRAPHIC, International(NSS)

1шт.

2752854R1

PRODUCT GRAPHIC, IH (NSS)

1шт.
