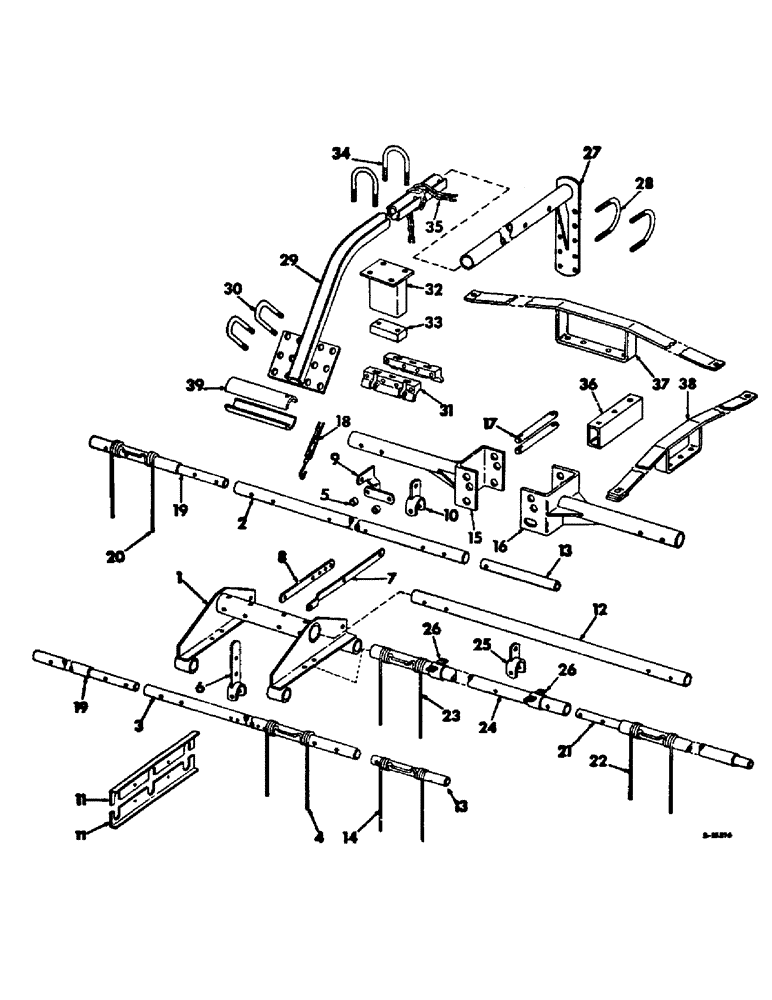

Запчасти Case IH 500 (Q-15) - MULCHER ATTACHMENT

1

485614R2

FRAME

ASSY, 1 ft., 3 in., for unit D

1шт.

1

485616R2

FRAME

ASSY, 3 ft., 9 in.

2шт.

2

485589R1

TUBE

BAR, 1st tooth, for unit D

1шт.

2

485599R1

TUBE

BAR, 1st tooth

2шт.

3

485590R1

TUBE

BAR, 3rd tooth, for unit D

1шт.

3

485600R1

TUBE

BAR, 3rd tooth

2шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), , 4 per bar 1/4" x 2 3/4"

1шт.

4

485613R1

TOOTH

2O for units A, B & C, 26 for unit D

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8-16 x 3 C-Z hex-hd cap, 2 for unit D

1шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

shoulder, 50 for unit D, 2 per tooth units A, B and C

1шт.

472144R1

NUT

3/8-16 two-way lock C-Z, 1 per bolt and screw

1шт.

5

485591R1

SPACER

BUSHING, tooth, 2 for unit C

1шт.

6

485592R1

ARM

HANDLE ASSY, 1 per frame assy

1шт.

NLS

NO LONGER SERVICED

SCREW, 7/16-14 x 2-3/4 C-Z hex-hd cap

2шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 two-way lock

2шт.

7

485593R1

SUPPORT

REACH, handle, 1 per handle assy

1шт.

8

485594R1

BAR

REACH, adj, 1 per handle assy

1шт.

21685R1

RIVET,Tr Hd, 3/8" x 1"

PIN, 7/16 x 1 zn-pltd std-hd

4шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

3шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

3шт.

480523R1

HAIR PIN COTTER

quick attachable

1шт.

9

485595R1

SUPPORT

POST ASSY, front, for unit C

1шт.

10

485601R1

ARM

POST ASSY, 1 per frame assy

1шт.

11

485598R1

SUPPORT

RAIL, center, 2 per post assy

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 C-Z hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

12

487725R1

TUBE, spanner short, for unit B

2шт.

12

487730R1

TUBE, spanner long, for unit A, for unit C

1шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

SCREW, 1/2 x 3-1/4 C-Z hex-hd cap

4шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 two-way lock C-Z

4шт.

13

487731R1

CONNECTOR, tooth bar, 2 for unit A

1шт.

13

487726R1

TUBE

CONNECTOR, tooth bar, for unit B, 2 for unit C

1шт.

14

485613R1

TOOTH

2 for unit B

1шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

shoulder

4шт.

472144R1

NUT

3/8-16 two-way lock C-Z

4шт.

15

487729R1

HINGE ASSY, outside, for unit C, note A

1шт.

16

487727R1

SUPPORT

HINGE ASSSY, inside, for unit C, note A

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

SCREW, 1/2-13 x 3-1/4 C-Z hex-hd cap

4шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 two-way lock C-Z

4шт.

280954

NUT,3/4"-10, G5

1шт.

17

487728R1

PIN, hinge, 2 for unit C, note A

1шт.

668752R1

WASHER

29/32 x 1-1/4 x 16 ga C-Z

2шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

2шт.

520177R11

PIN

quick attachable cot.

2шт.

18

(Not used in this application)

1шт.

20

485613R1

TOOTH

1 per bar assy

1шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

shoulder, 2 per tooth

1шт.

472144R1

NUT

3/8-16 two-way lock C-Z, 2 per tooth

1шт.

21

487731R1

CONNECTOR, tooth bar, for unit A

1шт.

22

485613R1

TOOTH

for unit B

1шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

shoulder

2шт.

472144R1

NUT

3/8-16 two-way lock C-Z

2шт.

23

485613R1

TOOTH

spring, 3 per frame assy, 485614R2, 5 per frame assy, 485616R2

1шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

shoulder, 2 per tooth

1шт.

472144R1

NUT

3/8-16 two-way lock C-Z, 2 per tooth

1шт.

24

485602R1

TUBE

BAR, 2nd tooth, for unit C

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

2шт.

24

485605R1

TUBE

BAR, 2nd tooth

2шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

3шт.

25

485601R1

ARM

POST ASSY, center, 1 per bar, 2nd tooth

1шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN, 7/16 x 1-1/2 C-Z std-hd

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

180159

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

SCREW, 7/16-14 x 2-3/4 C-Z hex-hd cap

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 two-way lock C-Z

1шт.

26

485603R1

BUSHING

ASSY, center bar, 2 per bar, 2nd tooth

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 C-Z hex-hd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

27

487716R1

ARM ASSY, mounting

2шт.

20299R1

BOLT, 5/8-11 x 3-3/4 C-Z hex-hd mach

4шт.

478684R1

NUT, 5/8-11 two-way lock

4шт.

28

487717R1

BOLT, arm mounting U

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

478684R1

NUT, 5/8-11 hex. lock

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

29

487724R1

ARM ASSY, lower carrying

2шт.

30

487719R1

BOLT, arm lower cayying U

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

31

487720R1

CLAMP

4шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2-13 x 3-1/2 C-Z hex-hd mach

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

32

487721R1

BUMPER ASSY

2шт.

33

487722R1

PAD, rubber

2шт.

18675R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

5/16-18 x 1-3/4 C-Z sq-nk crg

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

34

487753R1

BOLT U

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

35

487754R1

CHAIN, 175 links

1шт.

35

487723R1

CHAIN, 40 links

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1-1/2 C-Z hex-hd mach

4шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

8шт.

472144R1

NUT

3/8-16 two-way lock C-Z

4шт.

36

487778R1

SHIM, tube, 4 for unit C

1шт.

37

(Not used in this application)

1шт.

38

(Not used in this application)

1шт.

39

(Not used in this application)

1шт.
