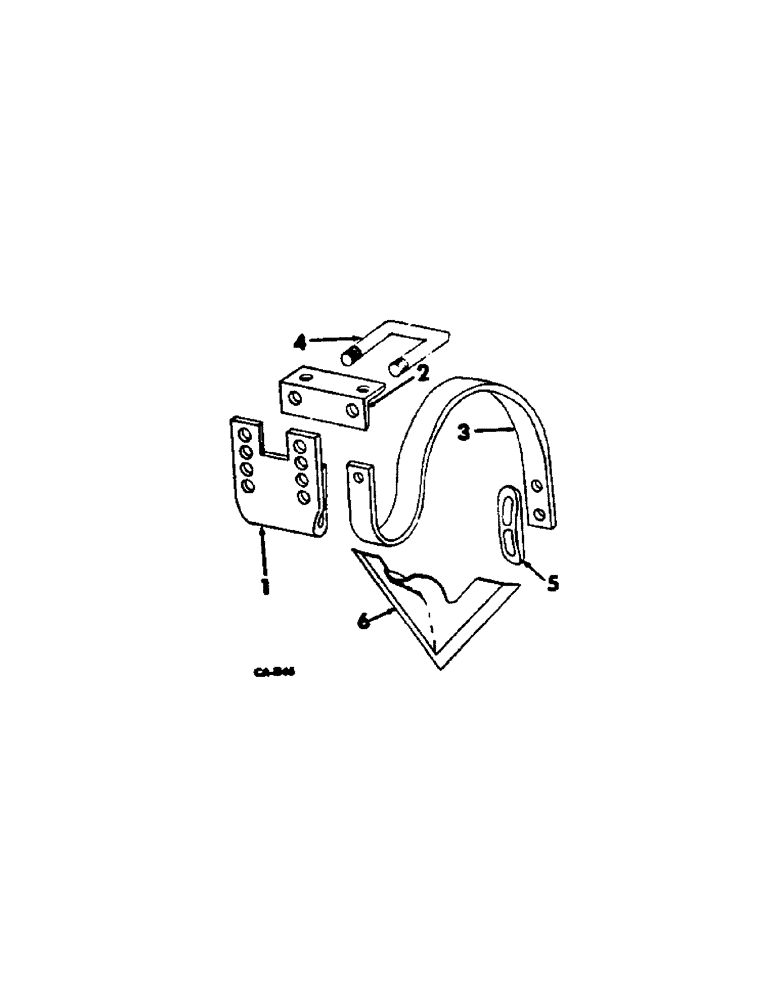

Запчасти Case IH 500 (Q-14) - CENTER TOOTH, W/6 IN. SWEEP

1

542563R1

SUPPORT ASSY.

SUPPORT, center spring tooth

1шт.

2

466947R1

ANGLE

BRACKET, support

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 znd hex-hd mach

2шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 znd hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-18 znd hex.

4шт.

3

542564R1

TOOTH

center spring

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cdp hex. lock

1шт.

4

543439R1

BOLT (SPREADER),U, 1/2" - 13 x 1.60"

U-BOLT

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

466868R1

WEDGE

sweep adjusting

1шт.

6

479005R2

SWEEP

6 in. universal

1шт.

25596BA

BOLT, 7/16-14 x 2 C-Z ov-hd plow

1шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

BOLT, 7/16 x 1-3/4 znd sq-nk crg

1шт.

271501

SOCKET

NUT, 7/16-14 znd hex.

2шт.
