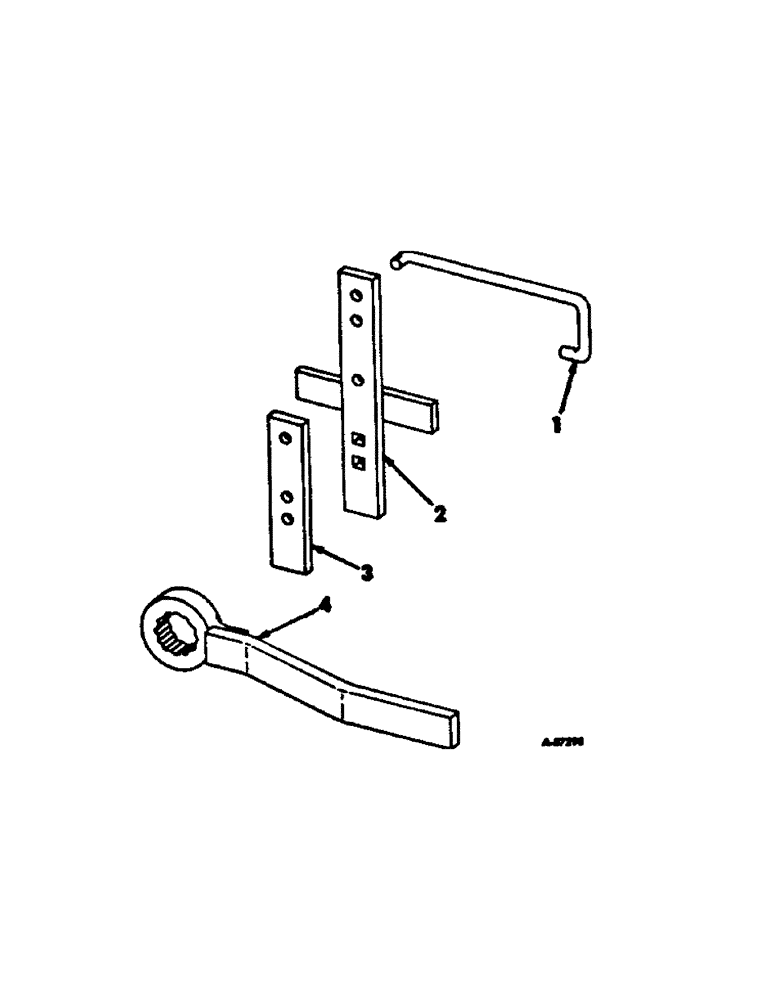

Запчасти Case IH 500 (Q-14[A]) - ARBOR TOOL KIT

544000R91

ARBOR BOLT TOOL PACKAGE, consist of

1шт.

1

485953R1

ROD, hook

1шт.

2

485950R1

HOLDER ASSY, disk

1шт.

3

485954R1

BAR, clamp

1шт.

21957R1

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2 C-Z std-hd

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8-11 x 2-1/2 C-Z sq-nk crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

4

485834R1

TOOL ASSY, arbor bolt nut

1шт.

520175R1

CLIP

PIN, quick-attaching cot.

1шт.
