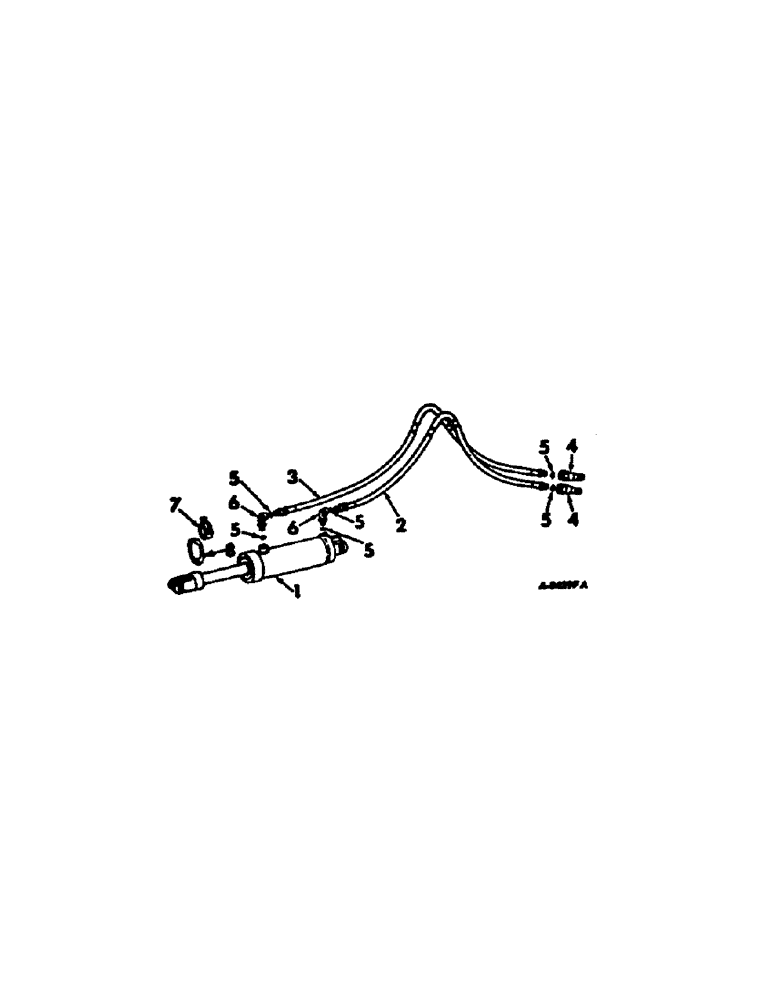

Запчасти Case IH 500 (Q-13) - HYUDRAULIC CYLINDER AND CONNECTIONS

1

388688R96

CYLINDER

hyd 4 x 8, refer to cyl, 1 for components

1шт.

1

1343711C1R

REMAN-HYD CYLINDER

500 INTERNATIONAL HARVESTER DISK HARROW, hyd 4 x 8, Reman for New PN 388688R96

1шт.

1

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

2

372437R91

HOSE

ASSY, hyd, 112 in.

1шт.

3

475228R91

HOSE

ASSY, hyd, 120 in.

1шт.

4

395149R1

QUICK MALE COUPLING

COUPLING ASSY, male str-thd

2шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

6шт.

6

371357R91

ELBOW

7/8-14 adjustable

2шт.

7

479849R91

PACKAGE

STOP ASSY, 1/2 in. hyd cyl

1шт.

7

643259R91

STOP

ASSY, 3/4 in. hyd cyl

1шт.

7

479850R91

PACKAGE

STOP ASSY, 1 in. hyd cyl

1шт.

7

643260R91

PACKAGE

STOP ASSY, 1-1/2 in. hyd cyl

1шт.

8

Q3498

WASHER

2-3/4 x 1-3/4 x 1/8

4шт.

479853R91

PACKAGE

hyd cyl stop, consists of (1) stop 479849R1, (1) stop 643259R91, (1) stop 479850R91, (1) stop 643260R91

1шт.
