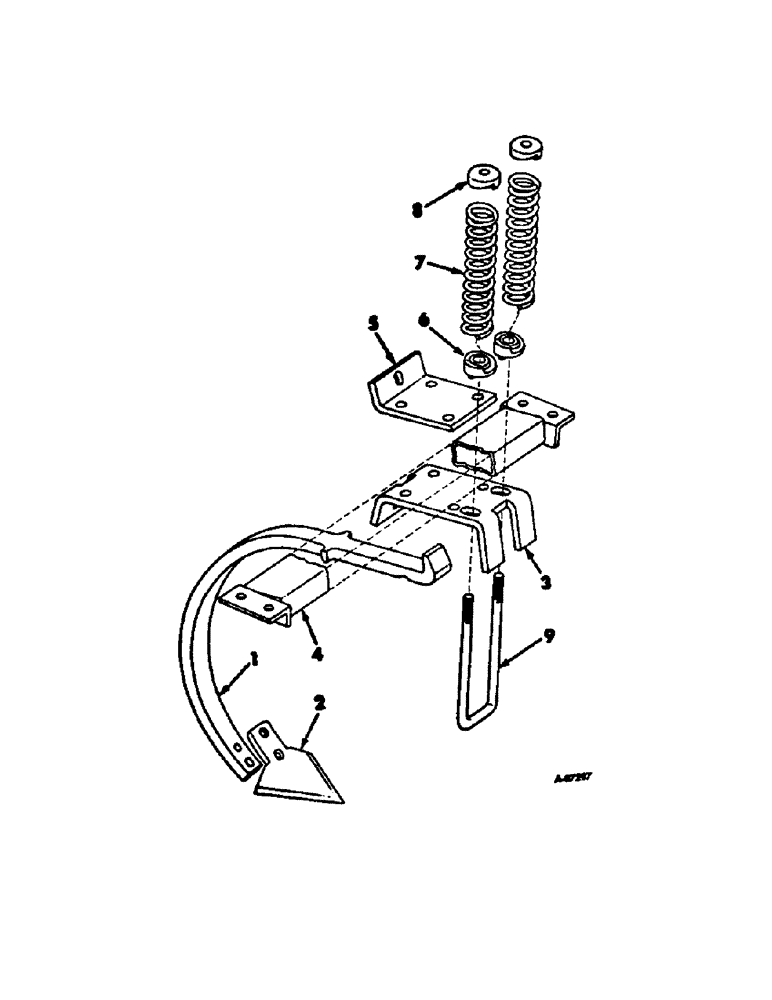

Запчасти Case IH 500 (Q-13[A]) - CENTER TOOTH W/8-1/4 IN. SWEEP

1

608341R1

SHANK

tooth

1шт.

2

602276R2

SWEEP

8 in., 1/4 in. thick

1шт.

15615R1

SCREW,#3, 1/2" - 13 x 2", Gr 2

BOLT, 1/2-13 x 2 plow

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

19662R1

BOLT,Hex, 3/4"-10 x 7 1/2", G2

3/4-10 x 7 C-Z hex-hd mach

1шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 C-Z lock

1шт.

486788R1

WASHER

25/32 x 1.5 x 1/4 C-Z

1шт.

3

485985R1

SUPPORT

BRACKET, clamping

1шт.

4

485982R1

TUBE ASSY

1шт.

5

485986R1

SUPPORT

BRACKET, transport

1шт.

18828R1

BOLT,Hex, 5/8"-11 x 4", G5

5/8-11 x 4 C-Z hex-hd mach

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

6

608349R1

RETAINER

lower

2шт.

7

608347R1

SPRING

2шт.

8

608348R1

RETAINER

upper

2шт.

9

485987R1

BOLT,3/4" - 10 x 13 1/2"

U

1шт.

280954

NUT,3/4"-10, G5

2шт.
