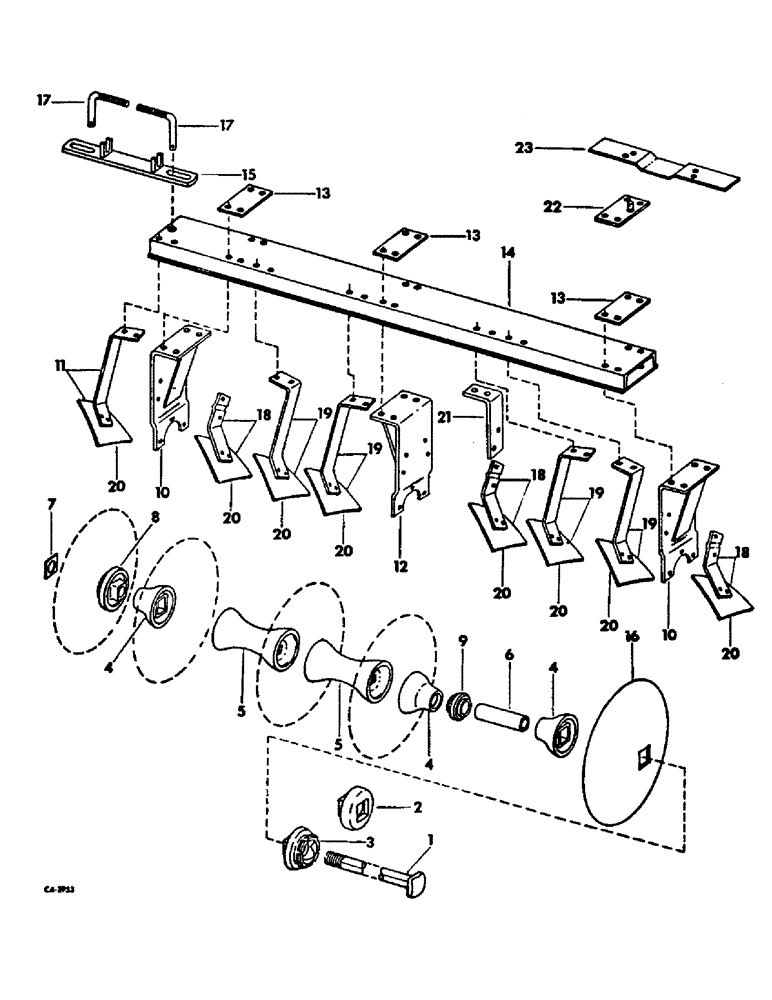

Запчасти Case IH 500 (Q-11) - FRONT AND REAR GANGS AND DISK, 1971 AND SINCE

1

549978R1

SQUARE BOLT

BOLT, arbor, 4 for unit A

1шт.

1

549979R1

BOLT,Rnd Cor Sq Hd, 1 1/2" - 6 x 1732mm

arbor, 4 for unit B

1шт.

1

549980R1

BOLT,1 1/2" - 6 x 2004mm

arbor, 4 for unit C

1шт.

1

549981R1

BOLT,1 1/2" - 6 x 2271mm

arbor, 4 for unit D

1шт.

131132

REAR VIEW MIRROR

1 1/2"

4шт.

220091

HUB,1 1/2"-6, G5

1-1/2-6 hex.

4шт.

2

549975R2

SQ HOLE WASHER

bumper

2шт.

3

549974R1

SQ HOLE WASHER

arbor, 2 for units B, C and D

1шт.

4

549977R1

SPOOL,56.4 mm ID x 155 mm OD x 101.8 mm

SPOOL BEARING, concave, 16 for unit A, 20 for unit B, 24 for unit C and D

1шт.

5

549976R1

SPOOL

SPOOL, spacing, 12 for unit A, 14 for unit B, 16 for unit C, 20 for unit D

1шт.

6

549971R1

SUPPORT TUBE

TUBE, bearing support, 8 for unit A, 10 for unit B, 12 for units C and D

1шт.

7

488836R1

STRIP

nut

4шт.

8

549973R1

SQ HOLE WASHER

nut

4шт.

9

ST740

BEARING

ball, 8 for unit A, 10 for unit B, 12 for units C and D

1шт.

10

546677R1

STANDARD ASSY, bearing, 6 for units A and B, 8 for units C and D

1шт.

11

481306R92

BLADE

ASSY, offset LH, harrows w/ends disk scraper att

2шт.

11

481307R92

BLADE

ASSY, offset RH, harrows w/ends disk scraper att

2шт.

486181R1

BOLT

1/2-13 x 4 C-Z hex-hd mach

4шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. lock

4шт.

12

546676R1

STANDARD ASSY, offset brg, 2 for unit A, 4 for units B, C and D

1шт.

13

481333R2

BAR, reinforcing, 8 for unit A, 10 for unit B, 12 for units C and D

1шт.

18842R1

BOLT,Hex, 3/4"-10 x 4 1/2", G2

3/4 x 4-1/2 C-Z hex-hd mach, 4 per bar

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 4 per bar

1шт.

280954

NUT,3/4"-10, G5

4 per bar 3/4"-10, G5

1шт.

14

489253R1

BAR ASSY, rear gang LH, for unit A

1шт.

14

489254R1

BAR ASSY, rear gang RH, for unit A

1шт.

14

489258R2

BAR ASSY, front gang LH, for unit A

1шт.

14

489259R2

BAR

ASSY, front gang RH, for unit A

1шт.

14

486243R1

BAR ASSY, gang front LH, for unit B

1шт.

14

486244R1

BAR ASSY, gang front RH, for unit B

1шт.

14

486248R1

BAR ASSY, gang rear LH, for unit B

1шт.

14

486249R1

BAR ASSY, gang rear RH, for unit B

1шт.

14

486253R1

BAR ASSY, gang LH, 2 for unit C

1шт.

14

486254R1

BAR ASSY, gang RH, 2 for unit C

1шт.

14

486238R1

BAR ASSY, gang LH, 2 for unit D

1шт.

14

486239R1

BAR ASSY, gang RH, 2 for unit D

1шт.

15

468601R11

BAR

ASSY, angling

1шт.

16

549900R1

BLADE, 22 in. x 1/4 in. notched disk

1шт.

16

549988R1

DISK HARROW

BLADE, 22 in. x 7 ga notched disk

1шт.

16

549991R1

DISK HARROW

BLADE, 22 in. x 1/4 in. solid disk

1шт.

16

549989R1

DISK HARROW

BLADE, 22 in. x 7 ga solid disk

1шт.

1

549984R1

DISK HARROW

BLADE, 24 in. x 6 ga notched disk

1шт.

16

549982R1

DISC

BLADE, 24 in. x 7 ga notched disk

1шт.

16

549986R1

DISK HARROW

BLADE, 24 in. x 1/4 in. notched disk

1шт.

16

549985R1

DISK HARROW

BLADE, 24 in. x 6 ga solid disk

1шт.

16

649983R1

BLADE, 24 in. x 7 ga solid disk

1шт.

16

549987R1

DISK HARROW

BLADE, 24 in. x 1/4 in. solid disk, 24 for unit A, 28 for unit B, 32 for unit C, 36 for unit D

1шт.

17

468603R1

ROD,7/8" - 9 x 6 23/64"

BOLT, angling

2шт.

21224R1

WASHER

1-1/2 x 29/32 x 7 C-Z ga

4шт.

426898

NUT,Jam, 7/8"-9, G5

7/8-9 C-Z hex. jam

4шт.

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot.

2шт.

18

481301R92

BLADE

ASSY, scraper LH

1шт.

18

481302R92

BLADE

ASSY, scraper RH, 4 for unit A, 6 for units B, C and D

1шт.

486180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

BOLT, 1/2-13 C-Z sq-nk crg, 2 per blade assy

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. lock, 2 per blade assy

1шт.

19

481306R92

BLADE

ASSY, offset LH

1шт.

19

481307R92

BLADE

ASSY, offset RH, 6 for units A and B, 8 for unit C, 10 for unit D

1шт.

486181R1

BOLT

1/2-13 x 4-1/2 C-Z sq-nk crg, 2 per blade assy

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. lock, 2 per blade assy

1шт.

20

481305R3

BLADE

scraper, 1 per blade assy

1шт.

106947

RIVET

1/2 x 1-3/8 truss-jd, 1 per blade

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 C-Z sq-nk crg

1шт.

138350R1

WASHER

17/32 x 1-1/4 x 3/16

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. lock, 1 per blade

1шт.

21

487309R1

ANGLE, inner scraper support LH

1шт.

21

487310R1

ANGlE, inner scraper support RH, for unit B w/o third brg att

1шт.

18841R1

BOLT,Hex, 3/4"-10 x 4", G2

3/4-10 x 4 C-Z hex-hd mach

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

3/4-10 C-Z hex.

4шт.

22

489250R1

BAR ASSY, reinforcing

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), , Ext prong 1/4" x 1 1/4"

2шт.

23

489251R2

BAR, spreader

1шт.
