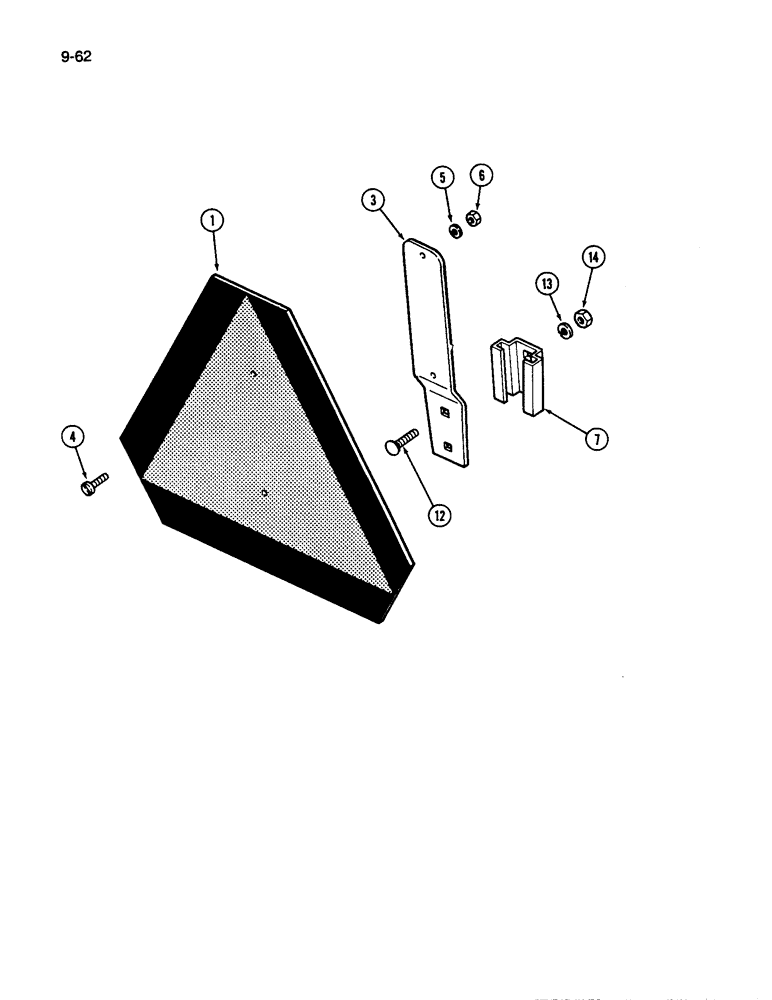

Запчасти Case IH 496 (9-62) - SMV EMBLEM (09) - CHASSIS/ATTACHMENTS

407220R1

PRODUCT GRAPHIC

KIT - slow moving vehicle

1шт.

1

NSS

NOT SOLD SEPARAT

EMBLEM - slow moving vehicle

1шт.

321-4311

DECAL

- SMV emblem

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET - emblem support

1шт.

4

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

5

120391

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch

2шт.

6

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

7

398976R1

BRACKET

SOCKET - SMV emblem

1шт.

12

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.
