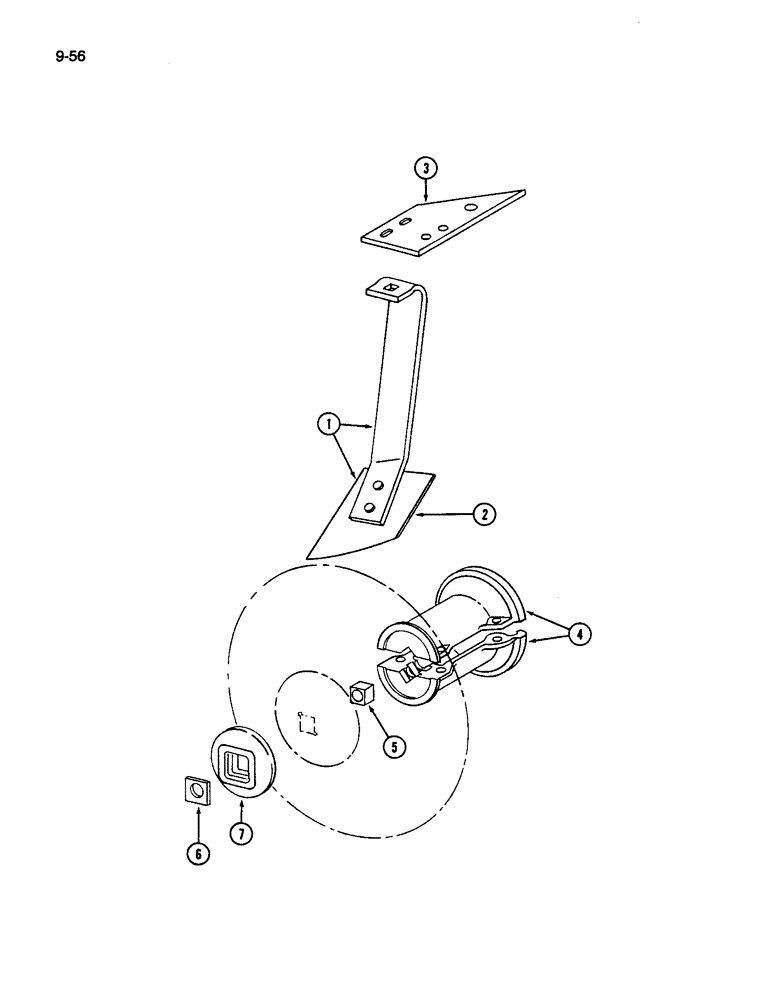

Запчасти Case IH 496 (9-56) - FURROW FILLER AND SCRAPER ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1

121119C92

SCRAPER

ASSEMBLY - disc, left

1шт.

121120C92

SCRAPER

ASSEMBLY - disc, right

1шт.

2

121118C1

BLADE

- scraper

1шт.

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

BOLT - special, scraper retaining

2шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

121233C1

RIVET,20mm OD x 29mm L

RIVET - blade retaining

2шт.

3

139709C1

SUPPORT

BRACKET - scraper, left

1шт.

3

139710C1

SUPPORT

BRACKET - scraper, right

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

Ref #4 129797c1 is only one half per print not top and bottom. 7-98 jhw

1шт.

4

129797C1

HUB

SPOOL - furrow filler

4шт.

424-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 2

- hex, 1/2 NC x 1-1/2 inch, Grade 2

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

5

100694C1

PLATE,SMALL SQUARE

BLOCK - driver

2шт.

6

100695C1

SPACER

- driver block

2шт.

7

596769R1

SQ HOLE WASHER

WASHER - head

2шт.

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- hex, 7/8 NC x 3 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.
