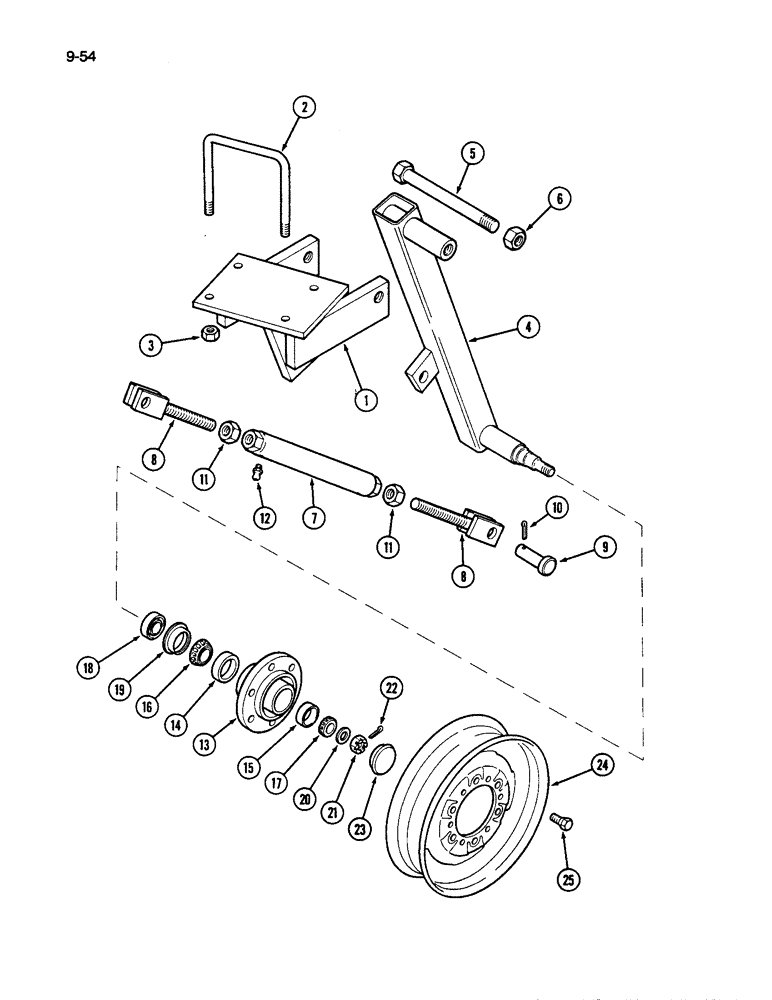

Запчасти Case IH 496 (9-54) - WING GAUGE WHEEL ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1

1978669C1

BRACKET

ASSEMBLY - mounting, left

1шт.

1

1978670C1

BRACKET

ASSEMBLY - mounting, right

1шт.

2

817740C1

U-BOLT

- mounting

4шт.

3

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

8шт.

4

1978667C1

TUBE

ASSEMBLY - wheel mounting, left

1шт.

4

1978668C1

TUBE

ASSEMBLY - wheel mounting, right

1шт.

5

122892C21

STUD

- Assy - wheel pivot

2шт.

6

489528R1

LOCK NUT

- hex lock, 1 inch NC

2шт.

7

480249R1

TRUSS ROD

TURNBUCKLE - landing

2шт.

8

1344919C1

CLEVIS

YOKE - turnbuckle, left

2шт.

8

1344920C1

CLEVIS

YOKE - turnbuckle, right

2шт.

9

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch

4шт.

10

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

4шт.

11

425-1416

JAM NUT,Jam, 1"-8, G5

- hex, jam, 1 inch NC

4шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

4шт.

13

810087C2

HUB

- wheel, six bolt mount

2шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

2шт.

14

651817R1

BEARING CUP

CUP - bearing, inner

2шт.

15

651814R1

BEARING CUP

CUP - bearing, outer

2шт.

16

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, inner

2шт.

17

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing, outer

2шт.

17

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

18

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

2шт.

19

472222R1

SLEEVE

- oil seal

2шт.

20

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat hardened, 25/32 x 1-1/4 x 1/8 inch

2шт.

21

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

2шт.

22

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

23

B13280

HUB CAP

CAP - wheel hub

2шт.

24

T25842

RIM

WHEEL - 14 x 5 inch, six bolt mount

2шт.

810769C1

VALVE

- tubeless tire, steel

2шт.

25

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

12шт.
