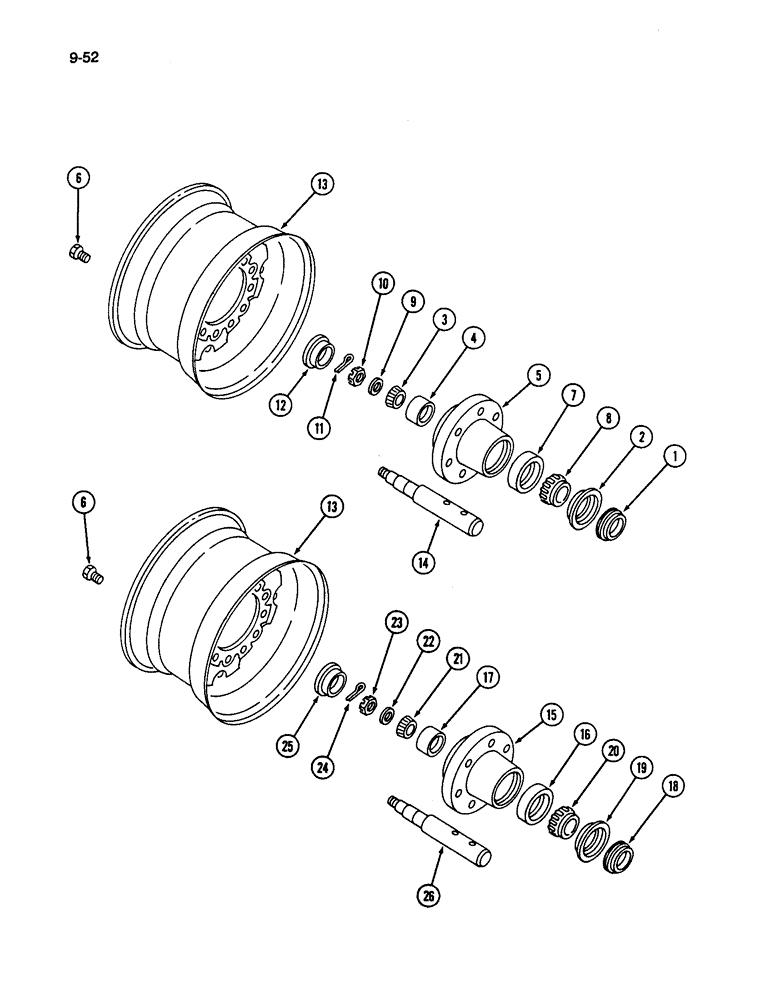

Запчасти Case IH 496 (9-52) - DUAL WHEEL ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1

667599R91

OIL SEAL

- wheel hub oil

2шт.

2

667564R1

RING

- oil seal wear

2шт.

3

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

2шт.

4

371883R1

BEARING CUP

Outer

2шт.

5

465493R2

HUB

- wheel, 6 bolt

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 inch NF

2шт.

6

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-1/2 inch

12шт.

7

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

2шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE - bearing, inner

2шт.

9

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, hardened

2шт.

10

69442D

NUT

- slotted hex, 3/4 inch NF

2шт.

11

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

2шт.

12

663908R1

CAP

- hub

2шт.

13

481344R91

WHEEL

- 14 x 8 KB

2шт.

810768C1

VALVE

- tubeless tire steel

2шт.

13

A57879

RIM

WHEEL - 15 x 8 LB

2шт.

810769C1

VALVE

- tubeless tire steel

2шт.

14

478375R1

SPINDLE

- wheel

2шт.

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

2шт.

15

606468R21

HUB

- wheel, 6 bolt, heavy duty

2шт.

16

663558R1

BEARING CUP

CUP - bearing, inner

1шт.

17

651817R1

BEARING CUP

CUP - bearing, outer

1шт.

606556R91

OIL SEAL

SEAL ASSEMBLY - wheel hub oil, with wear sleeve

2шт.

18

NSS

NOT SOLD SEPARAT

SEAL - wheel hub oil

1шт.

19

NSS

NOT SOLD SEPARAT

RING - oil seal wear

1шт.

20

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - bearing, inner

2шт.

21

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, outer

2шт.

22

495-81060

WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk

- flat, 29/32 x 1-3/4 x 7/64 inch

2шт.

23

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

2шт.

REF#23 P/N 70120D NUT IS A 7/8-14 FINE THREAD. PARTSBOOK IS IN ERROR. 9/3/96 JBEDFORD.

1шт.

24

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

2шт.

25

663906R1

CAP

- wheel hub

2шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, straight, 1/4 inch NF

2шт.

26

1978726C1

SPINDLE

- wheel

2шт.

424-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 2

- hex, 1/2 NC x 3-1/2 inch, Grade 2

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.
