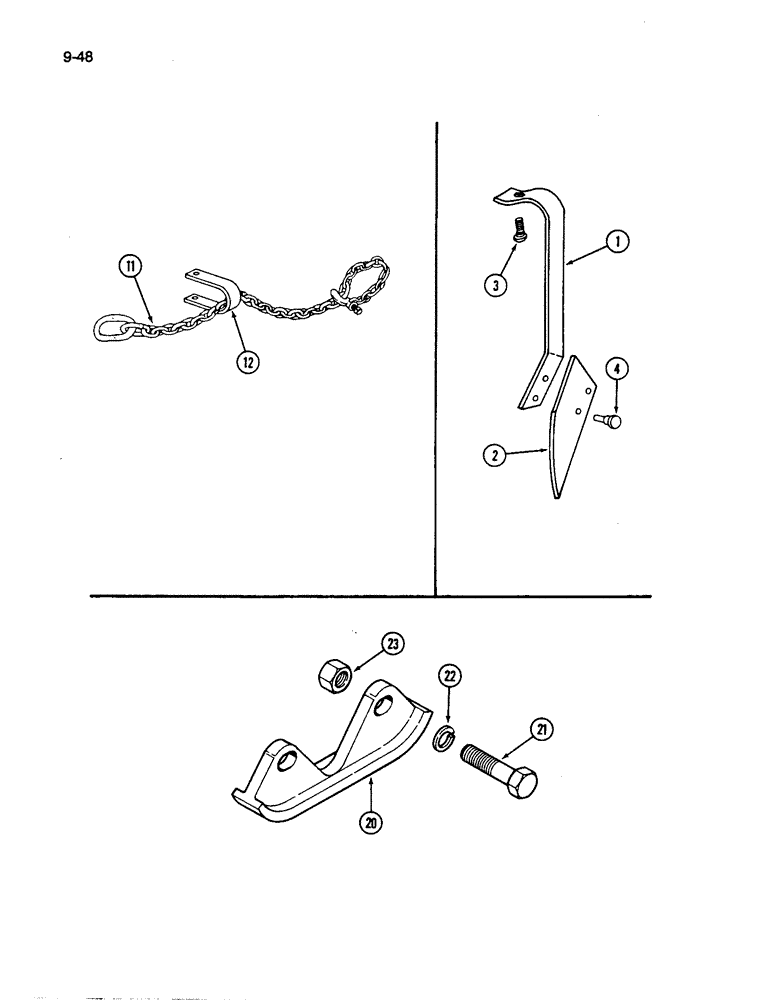

Запчасти Case IH 496 (9-48) - DISC SCRAPER, SAFETY CHAIN, BEARING WEAR GUARD (09) - CHASSIS/ATTACHMENTS

1

121119C92

SCRAPER

ASSEMBLY - disc, left (Quantity of 1 per disc)

1шт.

1

121120C92

SCRAPER

ASSEMBLY - disc, right (Quantity of 1 per disc)

1шт.

2

121118C1

BLADE

- scraper

1шт.

3

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

BOLT - special, scraper retaining

1шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

1шт.

4

121233C1

RIVET,20mm OD x 29mm L

RIVET - blade retaining

2шт.

11

100682C3

CHAIN (AG)

CHAIN ASSEMBLY - safety, 5/16 link x 59-1/4 inch, safety chain

1шт.

12

1279163C1

CLEVIS COUPLING

CLEVIS - chain, safety

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Safety chain Hex, 5/8"-11 x 3 1/2", G5

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC, safety chain

1шт.

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch, safety chain

1шт.

495-81047

WASHER,25/32" x 2" x .179"

- flat, 25/32 x 2 x 5/32 inch, safety chain

1шт.

18444R1

NUT,3/4"-10, GB

- hex lock, 3/4 inch NC, safety chain

1шт.

20

129753C1

BEARING COVER

- bearing wear

2шт.

21

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Bearing wear guard Hex, 1/2"-13 x 2", G5

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Bearing wear guard 1/2"

2шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Bearing wear guard 1/2"-13, G5

2шт.
