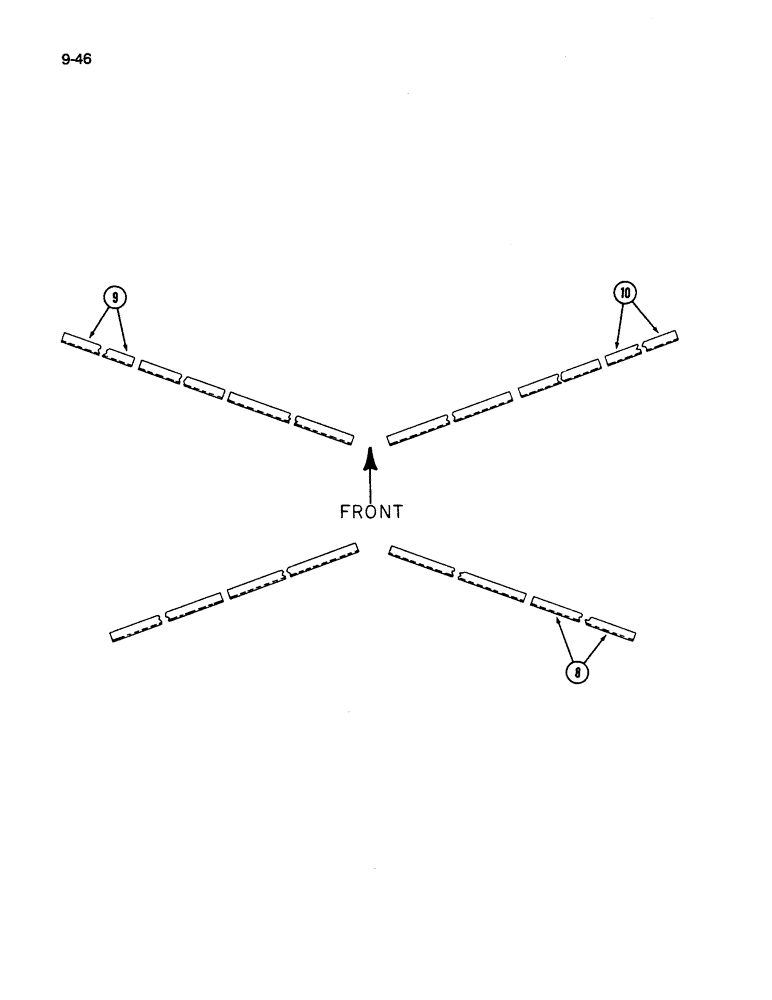

Запчасти Case IH 496 (9-46) - SCRAPER SUPPORT (09) - CHASSIS/ATTACHMENTS

8

139550C1

ANGLE

SUPPORT - wing scraper, right rear (Disk Harrow coded Q and U)

1шт.

8

139551C1

ANGLE

SUPPORT - wing scraper, right rear (Disk Harrow coded R)

1шт.

8

139552C1

ANGLE

SUPPORT - wing scraper, right rear (Disk Harrow coded S)

1шт.

8

121138C1

ANGLE

SUPPORT - wing scraper, right rear (DIsk Harrow coded T)

1шт.

411-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT - round head square neck, 5/8 NC x 1-3/4 inch, Grade 2

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

1шт.

9

129815C1

ANGLE

SUPPORT - wing scraper, inner, left front (Disk Harrow coded S)

1шт.

10

129815C1

ANGLE

SUPPORT - wing scraper, inner, right front (Disk Harrow coded S)

1шт.
