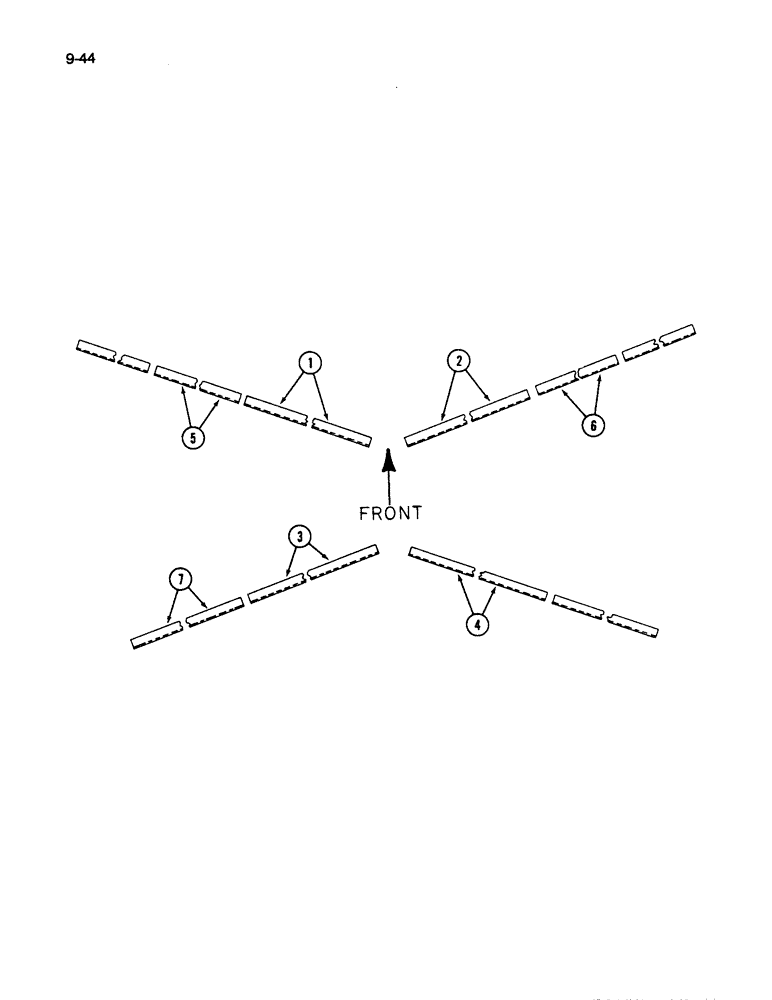

Запчасти Case IH 496 (9-44) - SCRAPER SUPPORT (09) - CHASSIS/ATTACHMENTS

1

121138C1

ANGLE

SUPPORT - main scraper, left front (Disk Harrow coded Q, R and S)

1шт.

1

121173C2

ANGLE

SUPPORT - main scraper, left front (Disk Harrow coded T and U)

1шт.

2

121138C1

ANGLE

SUPPORT - main scraper, right front (Disk Harrow coded Q, R and S)

1шт.

2

121173C2

ANGLE

SUPPORT - main scraper, right front (Disk Harrrow coded T and U)

1шт.

3

121141C2

ANGLE

SUPPORT - main scraper, left rear (Disk Harrow coded Q, R and S)

1шт.

3

129906C1

ANGLE

SUPPORT - main scraper, left rear (Disk Harrow coded T and U)

1шт.

4

121142C2

ANGLE

SUPPORT - main scraper, right rear (Disk Harrow coded Q, R and S)

1шт.

4

129905C1

NUT

SUPPORT - main scraper, right rear (Disk Harrow coded T and U)

1шт.

5

121149C2

ANGLE

SUPPORT - wing scraper, left front (Disk Harrow coded Q and U)

1шт.

5

129817C1

ANGLE

SUPPORT - wing scraper, left front (Disk Harrow coded R)

1шт.

5

121141C2

ANGLE

SUPPORT - wing scraper, left front (Disk Harrow coded S)

1шт.

5

129813C1

ANGLE

SUPPORT - wing scraper, left front (Disk Harrow coded T)

1шт.

6

121148C1

ANGLE

SUPPORT - wing scraper, right front (Disk Harrow coded Q and U)

1шт.

6

129818C1

ANGLE

SUPPORT - wing scraper, right front (Disk Harrow coded R)

1шт.

6

121142C2

ANGLE

SUPPORT - wing scraper, right front (Disk Harrow coded S)

1шт.

6

129814C1

ANGLE

SUPPORT - wing scraper, right front (Disk Harrow coded T)

1шт.

7

139550C1

ANGLE

SUPPORT - wing scraper, left rear (Disk Harrow coded Q and U)

1шт.

7

139551C1

ANGLE

SUPPORT - wing scraper, left rear (Disk Harrow coded R)

1шт.

7

139552C1

ANGLE

SUPPORT - wing scraper, left rear (Disk Harrow coded S)

1шт.

7

121138C1

ANGLE

SUPPORT - wing scraper, left rear (Disk Harrow coded T)

1шт.
