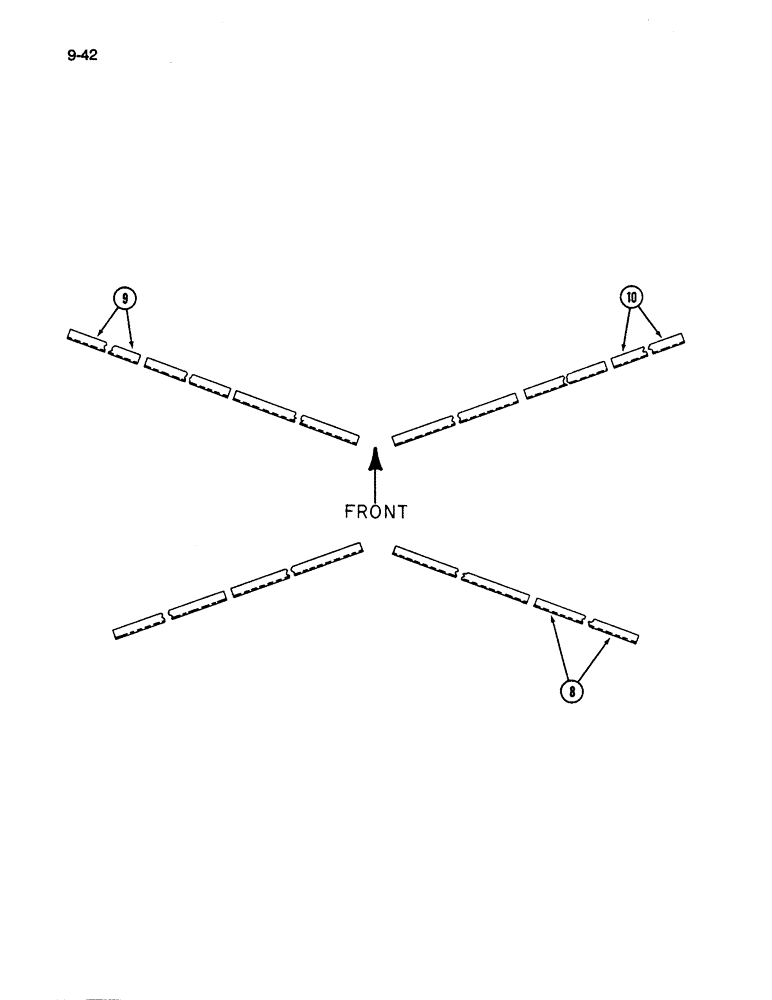

Запчасти Case IH 496 (9-42) - SCRAPER SUPPORT (09) - CHASSIS/ATTACHMENTS

8

121131C1

ANGLE

SUPPORT - wing scraper, right rear (Disk Harrow coded N and Y)

1шт.

8

121189C2

ANGLE

SUPPORT - wing scraper, right rear (Disk Harrow coded K and V)

1шт.

8

121036C1

ANGLE

SUPPORT - wing scraper, right rear (Disk Harrow coded L and W)

1шт.

8

139549C1

ANGLE

SUPPORT - wing scraper, right rear (Disk Harrow coded M and X)

1шт.

8

129741C1

ANGLE

SUPPORT - wing scraper, right rear (Disk Harrow coded P and Z)

1шт.

411-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT - round head square neck, 5/8 NC x 1-3/4 inch, Grade 2

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

1шт.

9

121166C3

ANGLE

SUPPORT - wing scraper extension, front (Disk Harrow coded M and X)

1шт.

10

121165C3

ANGLE

SUPPORT - wing scraper extension, front (Disk Harrow coded M and X)

1шт.
