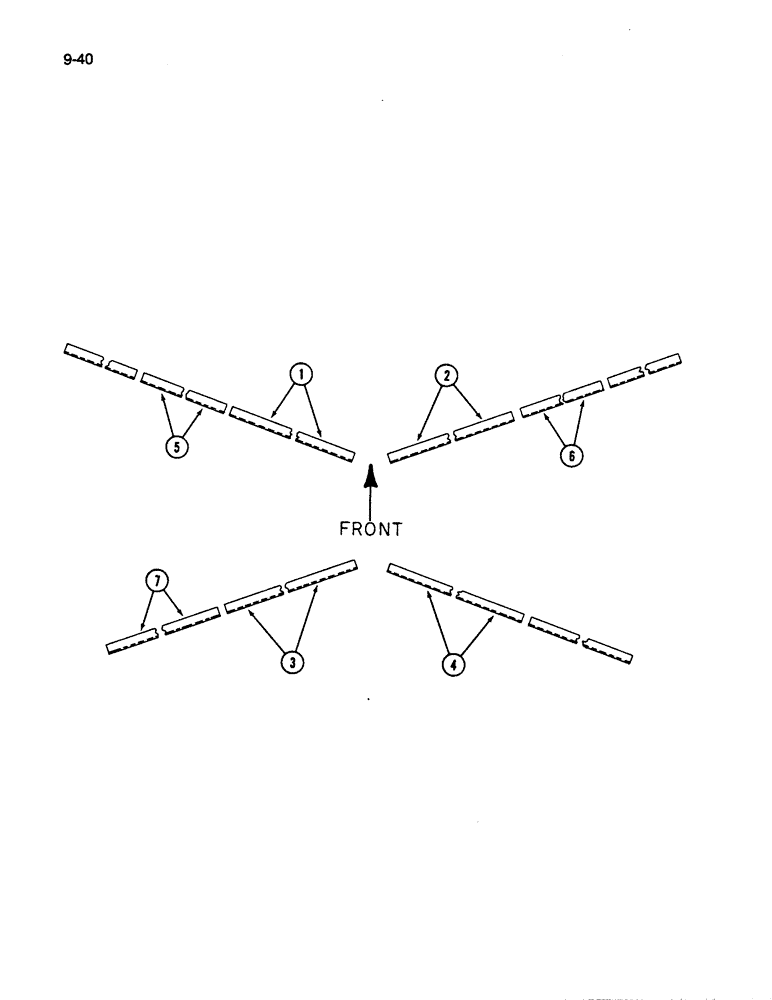

Запчасти Case IH 496 (9-40) - SCRAPER SUPPORT (09) - CHASSIS/ATTACHMENTS

1

121131C1

ANGLE

SUPPORT - main scraper, left front (Disk Harrow coded K, L, M, V, W and X)

1шт.

1

121163C2

ANGLE

SUPPORT - main scraper, left front (Disk Harrow coded N, P, Y and Z)

1шт.

2

121130C1

ANGLE

SUPPORT - main scraper, right front (Disk Harrow coded K, L, M, V, W and X)

1шт.

2

121164C2

ANGLE

SUPPORT - main scraper, right front (Disk Harrow coded N, P, Y and Z)

1шт.

3

121499C1

SCRAPER

SUPPORT - main scraper, left rear (Disk Harrow coded K, L, M, V, W and X)

1шт.

3

129788C1

ANGLE

SUPPORT - main scraper, left rear (Disk Harrow coded N, P, Y and Z)

1шт.

4

121500C1

ANGLE

SUPPORT - main scraper, right rear (Disk Harrow coded K, L, M, V, W and X)

1шт.

4

129789C1

ANGLE

SUPPORT - main scraper, right rear (Disk Harrow coded N, P, Y and Z)

1шт.

5

121499C1

SCRAPER

SUPPORT - wing scraper, left front (Disk Harrow coded M, N, X and Y)

1шт.

5

121129C2

ANGLE

SUPPORT - wing scraper, left front (Disk Harrow coded K, P, V and Z)

1шт.

5

121160C2

ANGLE

SUPPORT - wing scraper, left front (Disk Harrow coded L and W)

1шт.

6

121128C2

ANGLE

SUPPORT - wing scraper, right front (Disk Harrow coded K, P, V and Z)

1шт.

6

121500C1

ANGLE

SUPPORT - wing scraper, right front (Disk Harrow coded M, N, X and Y)

1шт.

6

121159C2

ANGLE

SUPPORT - wing scraper, right front (Disk Harrow coded L and W)

1шт.

7

121130C1

ANGLE

SUPPORT - wing scraper, left rear (Disk Harrow coded N and Y)

1шт.

7

121188C2

ANGLE

SUPPORT - wing scraper, left rear (Disk Harrow coded K and V)

1шт.

7

121035C1

ANGLE

SUPPORT - wing scraper, left rear (Disk Harrow coded L and W)

1шт.

7

139548C1

ANGLE

SUPPORT - wing scraper, left rear (Disk Harrow coded M and X)

1шт.

7

129740C1

ANGLE

SUPPORT - wing scraper, left rear (Disk Harrow coded P and Z)

1шт.
