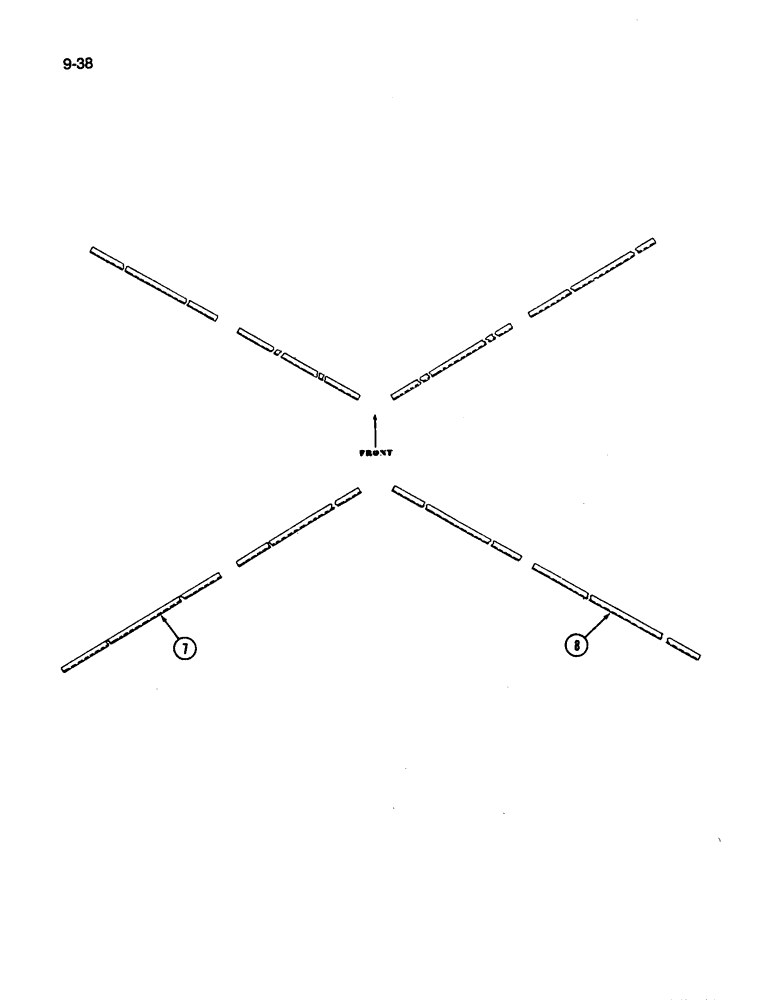

Запчасти Case IH 496 (9-38) - SCRAPER SUPPORT (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
7
121138C1
ANGLE
SUPPORT - wing scraper, left rear (Disk Harrow coded D)
1шт.
7
139550C1
ANGLE
SUPPORT - wing scraper, left rear (Disk Harrow coded A and E)
1шт.
7
139551C1
ANGLE
SUPPORT - wing scraper, left rear (Disk Harrow coded B)
1шт.
7
139552C1
ANGLE
SUPPORT - wing scraper, left rear (Disk Harrow coded C)
1шт.
7
121130C1
ANGLE
SUPPORT - wing scraper, left rear (Disk Harrow coded I)
1шт.
7
121188C2
ANGLE
SUPPORT - wing scraper, left rear (Disk Harrow coded F)
1шт.
7
121035C1
ANGLE
SUPPORT - wing scraper, left rear (Disk Harrow coded G)
1шт.
7
139548C1
ANGLE
SUPPORT - wing scraper, left rear (Disk Harrow coded H)
1шт.
7
129740C1
ANGLE
SUPPORT - wing scraper, left rear (Disk Harrow coded J)
1шт.
8
121138C1
ANGLE
SUPPORT - wing scraper, right rear (Disk Harrow coded D)
1шт.
8
139550C1
ANGLE
SUPPORT - wing scraper, right rear (Disk Harrow Coded A and E)
1шт.
8
139551C1
ANGLE
SUPPORT - wing scraper, right rear (Disk Harrow coded B)
1шт.
8
139552C1
ANGLE
SUPPORT - wing scraper, right rear (Disk Harrow coded C)
1шт.
8
121131C1
ANGLE
SUPPORT - wing scraper, right rear (Disk Harrow coded I)
1шт.
8
121189C2
ANGLE
SUPPORT - wing scraper, right rear (Disk Harrow coded F)
1шт.
8
121036C1
ANGLE
SUPPORT - wing scraper, right rear (Disk Harrow coded G)
1шт.
8
129741C1
ANGLE
SUPPORT - wing scraper, right rear (Disk Harrow coded J)
1шт.
8
139549C1
ANGLE
SUPPORT - wing scraper, right rear (Disk Harrow coded H)
1шт.
411-1028
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2
BOLT - round head square neck, 5/8 NC x 1-3/4 inch, Grade 2
1шт.
195313C1
FLANGE NUT,Flg, USR, 5/8"-12
- hex flange lock, 5/8 inch NC, Grade 8
1шт.
Выбрано товаров: 20
