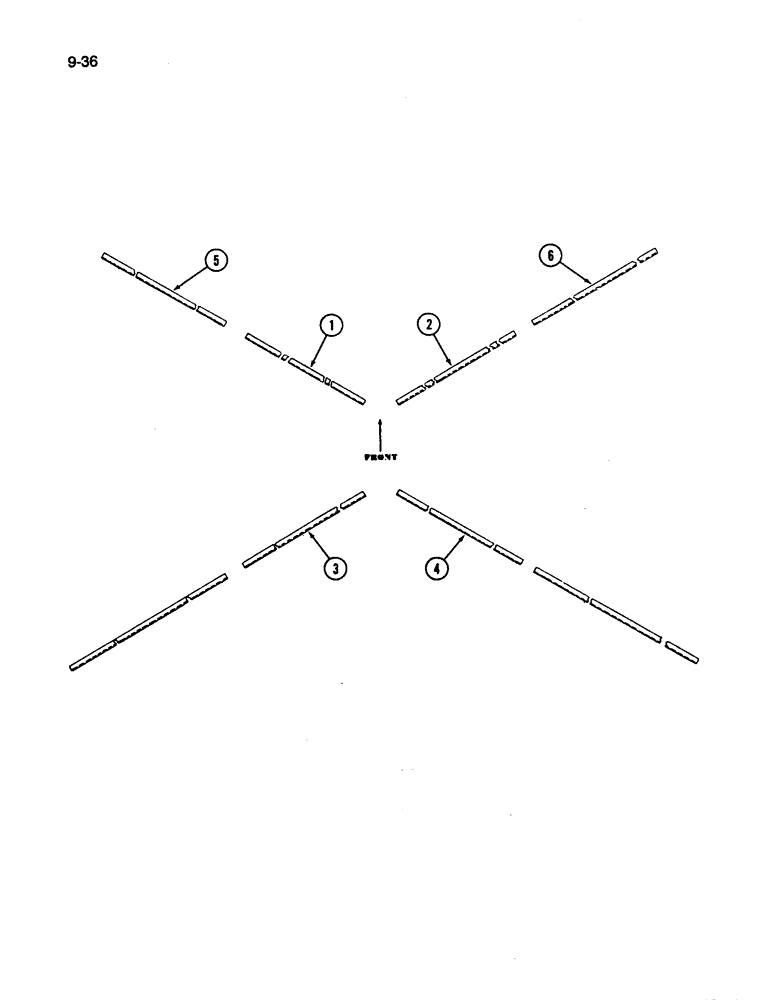

Запчасти Case IH 496 (9-36) - SCRAPER SUPPORT (09) - CHASSIS/ATTACHMENTS

1

121138C1

ANGLE

SUPPORT - main scraper, left front (Disk Harrow coded A, B and C)

1шт.

1

121173C2

ANGLE

SUPPORT - main scraper, left front (Disk Harrow coded D and E)

1шт.

1

121131C1

ANGLE

SUPPORT - main scraper, left front (Disk Harrow coded F, G and H)

1шт.

1

121163C2

ANGLE

SUPPORT - main scraper, left front (Disk Harrow coded I and J)

1шт.

2

121138C1

ANGLE

SUPPORT - main scraper, right front (Disk Harrow coded A, B and C)

1шт.

2

121173C2

ANGLE

SUPPORT - main scraper, right front (Disk Harrow coded D and E)

1шт.

2

121130C1

ANGLE

SUPPORT - main scraper, right front (Disk Harrow coded F, G and H)

1шт.

2

121164C2

ANGLE

SUPPORT - main scraper, right front (Disk Harrow coded I and J)

1шт.

3

121141C2

ANGLE

SUPPORT - main scraper, left rear (Disk Harrow coded A, B and C)

1шт.

3

129905C1

NUT

SUPPORT - main scraper, left rear (Disk Harrow coded D and E)

1шт.

3

121499C1

SCRAPER

SUPPORT - main scraper, left rear (Disk Harrow coded F, G and H)

1шт.

3

129788C1

ANGLE

SUPPORT - main scraper, left rear (Disk Harrow coded I and J)

1шт.

4

121142C2

ANGLE

SUPPORT - main scraper, right rear (Disk Harrow coded A, B and C)

1шт.

4

129906C1

ANGLE

SUPPORT - main scraper, right rear (Disk Harrow coded D and F)

1шт.

4

121500C1

ANGLE

SUPPORT - main scraper, right rear (Disk Harrow coded F, G and H)

1шт.

4

129789C1

ANGLE

SUPPORT - main scraper, right rear (Disk Harrow coded I and J)

1шт.

5

129813C2

ANGLE

SUPPORT - wing scraper, left front (Disk Harrow coded D)

1шт.

5

121148C2

ANGLE

SUPPORT - wing scraper, left front (Disk Harrow coded A and E)

1шт.

5

129817C1

ANGLE

SUPPORT - wing scraper, left front (Disk Harrow coded B)

1шт.

5

129820C2

ANGLE

SUPPORT - wing scraper, left front (Disk Harrow coded C)

1шт.

5

121499C1

SCRAPER

SUPPORT - wing scraper, left front (Disk Harrow coded I)

1шт.

5

121129C2

ANGLE

SUPPORT - wing scraper, left front (Disk Harrow coded F and J)

1шт.

5

121160C2

ANGLE

SUPPORT - wing scraper, left front (Disk Harrow coded G)

1шт.

5

121493C1

ANGLE

SUPPORT - wing scraper, left front (Disk Harrow coded H)

1шт.

6

129814C2

ANGLE

SUPPORT - wing scraper, right front (Disk Harrow coded D)

1шт.

6

121149C2

ANGLE

SUPPORT - wing scraper, right front (Disk Harrow coded A and E)

1шт.

6

129818C1

ANGLE

SUPPORT - wing scraper, right front (Disk Harrow coded B)

1шт.

6

129821C2

ANGLE

SUPPORT - wing scraper, right front (Disk Harrow coded C)

1шт.

6

121500C1

ANGLE

SUPPORT - wing scraper, right front (Disk Harrow coded I)

1шт.

6

121128C2

ANGLE

SUPPORT - wing scraper, right front (Disk Harrow coded F and J)

1шт.

6

121159C2

ANGLE

SUPPORT - wing scraper, right front (Disk Harrow coded G)

1шт.

6

121494C1

ANGLE

SUPPORT - wing scraper, right front (Disk Harrow coded H)

1шт.
