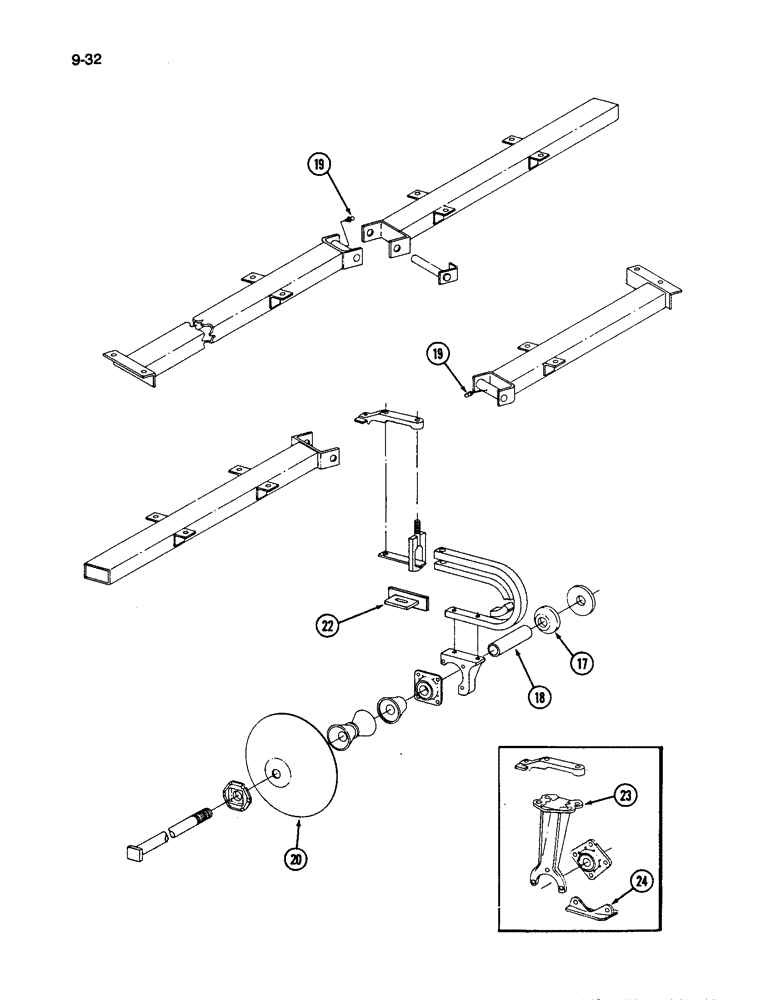

Запчасти Case IH 496 (9-32) - DISC AND GANG 1-1/2 INCH ROUND ARBOR BOLT (09) - CHASSIS/ATTACHMENTS

17

101190C1

SPOOL

- bearing, 3 inch (Disk Harrow coded K, N, P, Q, T, U and Y)

16шт.

17

101190C1

SPOOL

- bearing, 3 inch (Disk Harrow coded L, R and Z)

20шт.

17

101190C1

SPOOL

- bearing, 3 inch (Disk Harrow coded M, S, V and W)

22шт.

17

101190C1

SPOOL

- bearing, 3 inch (Disk Harrow coded X)

24шт.

18

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

- support, 7-1/2 inch spacing (Disk Harrow coded Q, T and U)

16шт.

18

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

- support, 7-1/2 inch spacing (Disk Harrow coded R)

20шт.

18

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

- support, 7-1/2 inch spacing (Disk Harrow coded S)

22шт.

18

112410C1

TUBE

BUSHING - support, 9 inch spacing (Disk Harrow coded K, N, P and Y)

16шт.

18

112410C1

TUBE

BUSHING - support, 9 inch spacing (Disk Harrow coded L and Z)

20шт.

18

112410C1

TUBE

BUSHING - support, 9 inch spacing (Disk Harrow coded M, V, and W)

22шт.

18

112410C1

TUBE

BUSHING - support, 9 inch spacing (Disk Harrow coded X)

24шт.

19

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, straight, 1/4 inch taper drive thread

4шт.

20

31000R1

DISC

- square hole concave, 560 mm diameter x 5 mm thick

1шт.

20

30999R1

DISC

- square hole concave, 510 mm diameter x 5 mm thick

1шт.

20

31217R2

DISC

- solid, 560 diameter x 6.5 mm thick

1шт.

20

31232R2

DISC

- solid, 510 diameter x 6.5 mm thick

1шт.

20

31345R1

DISC

- solid, 560 diameter x 5 mm thick

1шт.

20

31268R1

DISC

- solid, 510 diameter x 4.5 mm thick

1шт.

20

31269R1

DISC

- solid, 560 diameter x 4.5 mm thick

1шт.

20

31196R1

DISK HARROW

DISC - notched, 510 diameter x 6.5 mm thick

1шт.

20

31197R1

DISK HARROW

DISC - notched, 560 diameter x 5 mm thick

1шт.

22

1263626C2

ANGLE

BRACKET - stiffener (Disk Harrow coded K, N, P, Q, T, and U)

16шт.

22

1263626C2

ANGLE

BRACKET - stiffener (Disk Harrow coded L and R)

20шт.

22

1263626C2

ANGLE

BRACKET - stiffener (Disk Harrow coded M and S)

22шт.

23

129532C2

HOLDER

SUPPORT - bearing (Disk Harrow coded Y)

16шт.

23

129532C2

HOLDER

SUPPORT - bearing (Disk Harrow coded Z)

20шт.

23

129532C2

HOLDER

SUPPORT - bearing (Disk Harrow coded V and W)

22шт.

23

129532C2

HOLDER

SUPPORT - bearing (Disk Harrow coded X)

24шт.

24

129753C1

BEARING COVER

- bearing wear (Disk Harrow coded V, W, X, Y and Z)

2шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
