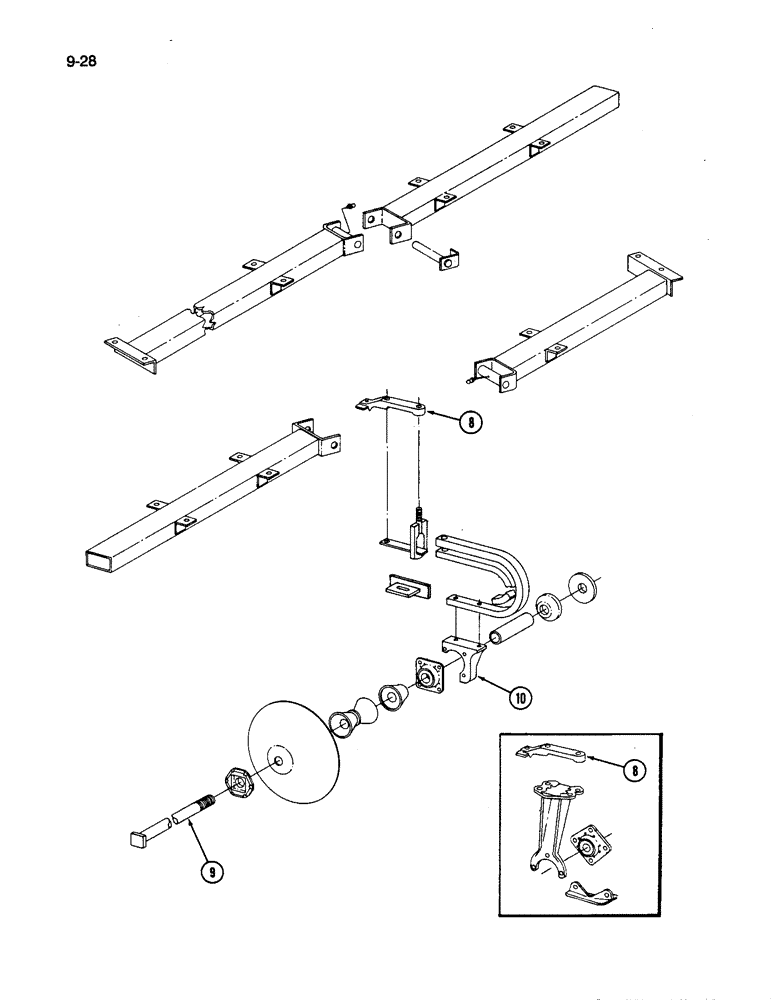

Запчасти Case IH 496 (9-28) - DISC AND GANG 1-1/2 INCH ROUND ARBOR BOLT (09) - CHASSIS/ATTACHMENTS

8

1980776C1

SUPPORT

- standard mounting (Disk Harrow coded K, N, P, Q, T and U)

16шт.

8

1980776C1

SUPPORT

- standard mounting (Disk Harrow coded L and R)

20шт.

8

1980776C1

SUPPORT

- standard mounting (Disk Harrow coded M and S)

22шт.

8a

1980788C1

SUPPORT

- scraper angle, left (Disk Harrow coded K, N, P, Q, T and U)

8шт.

8a

1980788C1

SUPPORT

- scraper angle, left (Disk Harrow coded L and R)

10шт.

8a

1980788C1

SUPPORT

- scraper angle, left (Disk Harrow coded M and S)

11шт.

8

1980789C1

SUPPORT

- scraper angle, right (Disk Harrow coded K, N, P, Q, T and U)

8шт.

8

1980789C1

SUPPORT

- scraper angle, right (Disk Harrow coded L and R)

10шт.

8

1980789C1

SUPPORT

- scraper angle, right (Disk Harrow coded M and S)

11шт.

8

139583C5

SUPPORT

- scraper bar (Disk Harrow coded Y)

16шт.

8

139583C5

SUPPORT

- scraper bar (Disk Harrow coded Z)

20шт.

8

139583C5

SUPPORT

- scraper bar (Disk Harrow coded V and W)

22шт.

8

139583C5

SUPPORT

- scraper bar (Disk Harrow coded X)

24шт.

Item no. 8, the one illustrated in the catalog is 139583c5.

1шт.

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

- hex, 3/4 NC x 7 inch

1шт.

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

- hex, 3/4 NC x 5-1/4 inch

1шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT - hex lock, two way, 3/4 inch NC

1шт.

9

REF

INSTRUCTION

BOLT - arbor, 1-1/2 inch diameter (See Page 9-35)

4шт.

425-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - slotted, 1-1/2 inch (Disk Harrow coded K, L, N, P, Q, R, T, U, V, W, Y and Z)

8шт.

425-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - slotted, 1-1/2 inch (Disk Harrow coded M, S and X)

10шт.

432-1648

COTTER PIN,1/4" x 3"

(Disk Harrow coded K, L, N, P, Q, R, T, U, V, W, Y and Z) 1/4" x 3"

8шт.

432-1648

COTTER PIN,1/4" x 3"

(Disk Harrow coded M, S and X) 1/4" x 3"

10шт.

1284383C1

WASHER

- arbor bolt (Disk Harrow coded K, L, N, P, V, W, Y and Z)

8шт.

1284383C1

WASHER

- arbor bolt (Disk Harrow coded M and X)

10шт.

10

147873C1

SUPPORT

RETAINER - bearing, left (Disk Harrow coded K, N, P, Q, T and U)

8шт.

10

147873C1

SUPPORT

RETAINER - bearing, left (Disk Harrow coded L AND R)

10шт.

10

147873C1

SUPPORT

RETAINER - bearing, left (Disk Harrow coded M and S)

11шт.

10

147874C1

SUPPORT

RETAINER - bearing, right (Disk Harrow coded K, N, P, Q, T and U)

8шт.

10

147874C1

SUPPORT

RETAINER - bearing, right (Disk Harrow coded L and R)

10шт.

10

147874C1

SUPPORT

RETAINER - bearing, right (Disk Harrow coded M and S)

11шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

- hex, 5/8 NC x 2-3/4 inch (Replaces 413-1044)

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- hex, 5/8 NC x 3-1/4 inch (Replaces 413-1052)

1шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC

1шт.
