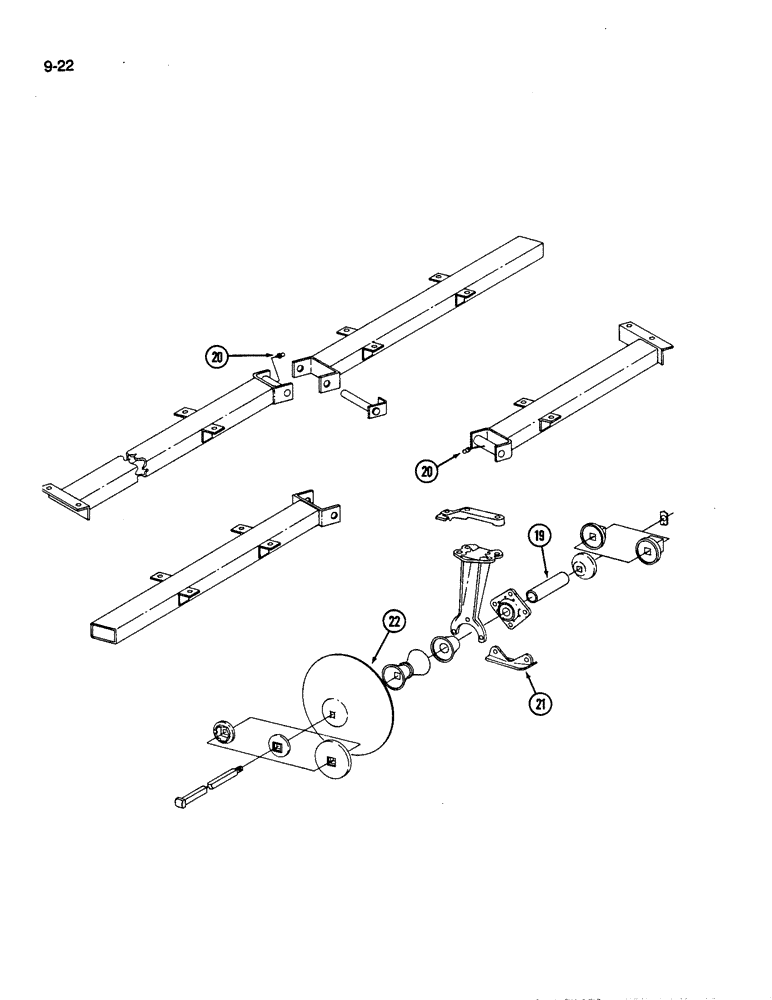

Запчасти Case IH 496 (9-22) - DISC AND GANG 1-1/8 INCH SQUARE ARBOR BOLT (09) - CHASSIS/ATTACHMENTS

19

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

- support, 7-1/2 inch spacing (Disk Harrow coded A and B)

22шт.

19

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

- support, 7-1/2 inch spacing (Disk Harrow coded C)

24шт.

19

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

- support, 7-1/2 inch spacing (Disk Harrow coded D)

16шт.

19

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

- support, 7-1/2 inch spacing (Disk Harrow coded E)

20шт.

19

112410C1

TUBE

BUSHING - support, 9 inch spacing (Disk Harrow coded F and G)

22шт.

19

112410C1

TUBE

BUSHING - support, 9 inch spacing (Disk Harrow coded H)

24шт.

19

112410C1

TUBE

BUSHING - support, 9 inch spacing (Disk Harrow coded I)

16шт.

19

112410C1

TUBE

BUSHING - support, 9 inch spacing (Disk Harrow coded J)

20шт.

20

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, straight, 1/4 inch taper drive thread

4шт.

21

129753C1

BEARING COVER

- bearing wear

2шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

22

482986R2

DISK HARROW

DISC - solid, 18 inch diameter x 4 mm thick

1шт.

22

472217R1

DISK HARROW

DISC - solid, 20 inch diameter x 4 mm thick

1шт.

22

482973R1

DISC

- solid, 20 inch diameter x 4.5 mm thick

1шт.

22

482975R1

PLOW DISC

DISC - solid, 22 inch diameter x 5 mm thick

1шт.

22

482974R1

DISC

- square hole concave, 510 mm diameter x 4.5 mm thick

1шт.

22

472218R1

DISC

- square hole concave, 560 mm diameter x 4.5 mm thick

1шт.

22

P24425

DISC

- notched, 22 inch diameter x 4.5 mm thick

1шт.

22

482976R1

DISK HARROW

DISC - notched, 22 inch diameter x 5 mm thick

1шт.
