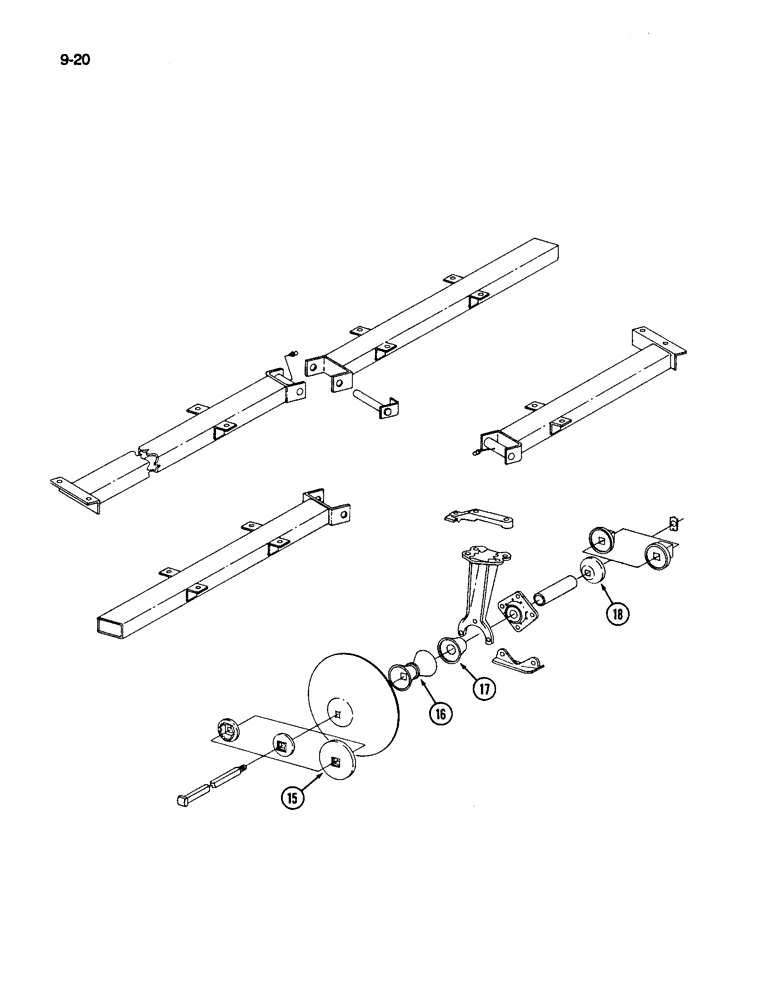

Запчасти Case IH 496 (9-20) - DISC AND GANG 1-1/8 INCH SQUARE ARBOR BOLT (09) - CHASSIS/ATTACHMENTS

15

468584R2

SQ HOLE WASHER

- bumper

2шт.

16

481416R1

SPOOL

- 7-1/2 inch spacing (Disk Harrow coded A)

50шт.

16

481416R1

SPOOL

- 7-1/2 inch spacing (Disk Harrow coded B)

62шт.

16

481416R1

SPOOL

- 7-1/2 inch spacing (Disk Harrow coded C)

72шт.

16

481416R1

SPOOL

- 7-1/2 inch spacing (Disk Harrow coded D)

36шт.

16

481416R1

SPOOL

- 7-1/2 inch spacing (Disk Harrow coded E)

44шт.

16

481417R1

SPOOL

- 9 inch spacing (Disk Harrow coded F)

38шт.

16

481417R1

SPOOL

- 9 inch spacing (Disk Harrow coded G)

46шт.

16

481417R1

SPOOL

- 9 inch spacing (Disk Harrow coded H)

56шт.

16

481417R1

SPOOL

- 9 inch spacing (Disk Harrow coded I)

28шт.

16

481417R1

SPOOL

- 9 inch spacing (Disk Harrow coded J)

32шт.

17

101191C1

SPOOL

- bearing, 4 inch (Disk Harrow coded A, B, F and G)

22шт.

17

101191C1

SPOOL

- bearing, 4 inch (Disk Harrow coded C and H)

24шт.

17

101191C1

SPOOL

- bearing, 4 inch (Disk Harrow coded D and I)

16шт.

17

101191C1

SPOOL

- bearing, 4 inch (Disk Harrow coded E and J)

20шт.

18

101189C1

SPOOL

- bearing, 1-1/2 inch (Disk Harrow coded A and B)

22шт.

18

101189C1

SPOOL

- bearing, 1-1/2 inch (Disk Harrow coded C)

24шт.

18

101189C1

SPOOL

- bearing, 1-1/2 inch (Disk Harrow coded D)

16шт.

18

101189C1

SPOOL

- bearing, 1-1/2 inch (Disk Harrow coded E)

20шт.

18

101190C1

SPOOL

- bearing, 3 inch (Disk Harrow coded F and G)

22шт.

18

101190C1

SPOOL

- bearing, 3 inch (Disk Harrow coded H)

24шт.

18

101190C1

SPOOL

- bearing, 3 inch (Disk Harrow coded I)

16шт.

18

101190C1

SPOOL

- bearing, 3 inch (Disk Harrow coded J)

20шт.
