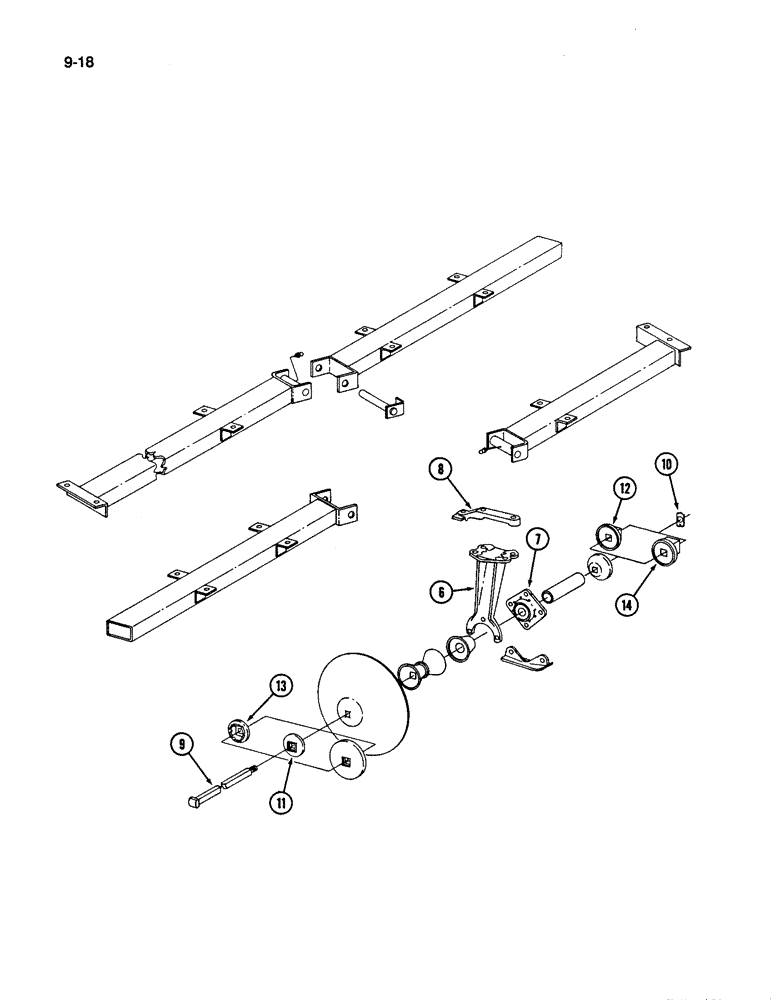

Запчасти Case IH 496 (9-18) - DISC AND GANG 1-1/8 INCH SQUARE ARBOR BOLT (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
6
129532C2
HOLDER
SUPPORT - bearing (Disk Harrow coded A, B, F and G)
22шт.
6
129532C2
HOLDER
SUPPORT - bearing (Disk Harrow coded C and H)
24шт.
6
129532C2
HOLDER
SUPPORT - bearing (Disk Harrow coded D and I)
16шт.
6
129532C2
HOLDER
SUPPORT - bearing (Disk Harrow coded E and J)
20шт.
7
ST491A
BALL BEARING,45mm ID
BEARING - ball (Quantity of 1 per Ref 6 support)
1шт.
7
ST491A-IMPGV
BEARING
Value, 1-3/4 In. Round Bore Bearing Assy
1шт.
424-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 2
- hex, 1/2 NC x 1-1/2 inch, Grade 2
3шт.
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
- hex, 1/2 NC x 1-1/4 inch
3шт.
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
3шт.
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
3шт.
8
139583C5
SUPPORT
- scraper angle (Disk Harrow coded A, B, F and G)
22шт.
8
139583C5
SUPPORT
- scraper angle (Disk Harrow coded C and H)
24шт.
8
139583C5
SUPPORT
- scraper angle (Disk Harrow coded D and I)
16шт.
8
139583C5
SUPPORT
- scraper angle (Disk Harrow coded F and J)
20шт.
413-1284
BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5
- hex, 3/4 NC x 5-1/4 inch
1шт.
473244R1
LOCK NUT,3/4"-10, GB
NUT - hex lock, two way, 3/4 inch NC
1шт.
9
REF
INSTRUCTION
BOLT - arbor, 1-1/8 inch diameter (See Page 9-34)
4шт.
10
489292R1
SUPPORT ASSY.
STRIP - arbor bolt
8шт.
492-11112
LOCK WASHER,1 1/8"
1 1/8"
8шт.
425-1018
NUT,1 1/8"-7, G5
- hex, 1-1/8 inch NC
8шт.
11
596769R1
SQ HOLE WASHER
WASHER - head
4шт.
12
PA4167
WASHER
- nut (Disk Harrow coded D and I)
8шт.
12
PA4167
WASHER
- nut (Disk Harrow coded E and J)
4шт.
12
PA4167
WASHER
- nut (Disk Harrow coded F, G and H)
2шт.
13
100696C1
WASHER
- furrow filler
2шт.
14
481611R1
WASHER
- arbor nut (Disk Harrow coded A, B and C)
8шт.
14
481611R1
WASHER
- arbor nut (Disk Harrow coded E and J)
4шт.
14
481611R1
WASHER
- arbor nut (Disk Harrow coded F, G and H)
6шт.
Выбрано товаров: 28
