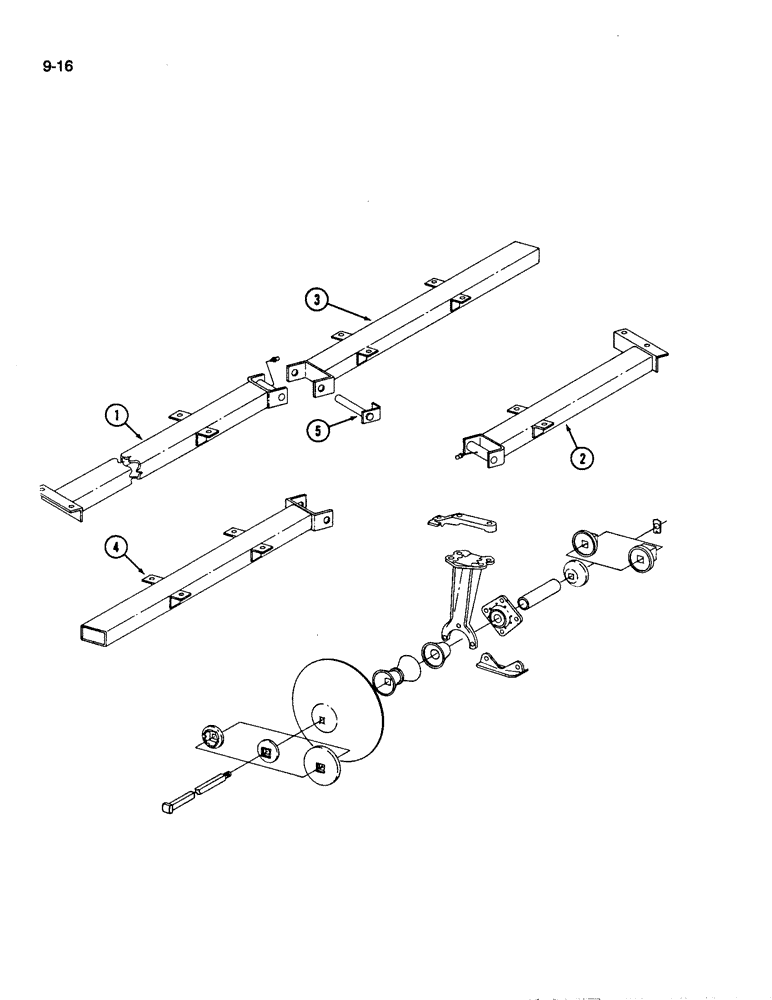

Запчасти Case IH 496 (9-16) - DISC AND GANG 1-1/8 INCH SQUARE ARBOR BOLT (09) - CHASSIS/ATTACHMENTS

1

121417C1

BAR

FRAME - gang, left front (Disk Harrow coded A, B, C, F, G and H)

1шт.

1

121418C1

BAR

FRAME - gang, right front (Disk Harrow coded A, B, C, F, G and H)

1шт.

1

129856C1

BAR

FRAME - gang, left front (Disk Harrow coded D, E, I and J)

1шт.

1

129857C1

BAR

FRAME - gang, right front (Disk Harrow coded D, E, I and J)

1шт.

2

121417C1

BAR

FRAME - gang, right rear (Disk Harrow coded A, B, C, F, G and H)

1шт.

2

121418C1

BAR

FRAME - gang, left rear (Disk Harrow coded A, B, C, F, G and H)

1шт.

2

129859C2

BAR ASSY.

FRAME - gang, left rear (Disk Harrow coded D, E, I and J)

1шт.

2

129860C2

BAR ASSY.

FRAME - gang, right rear (Disk Harrow coded D, E, I and J)

1шт.

3

129770C1

TUBE,1384 mm Length

FRAME - wing gang, left front, 21 foot

1шт.

Ref #3, 129770C1 & 129771C1 are used on 18' & 19'.

1шт.

3

129771C1

TUBE

FRAME - wing gang, right front, 21 foot

1шт.

Ref #3, 129770C1 & 129771C1 are used on 18' & 19'.

1шт.

3

129523C1

TUBE,1930 mm Length

FRAME - wing gang, left front, 24 foot

1шт.

3

129524C1

TUBE

FRAME - wing gang, right front, 24 foot

1шт.

3

129776C1

TUBE,2495 mm Length

FRAME - wing gang, left front, 28 foot

1шт.

3

129777C1

TUBE

FRAME - wing gang, right front, 28 foot

1шт.

3

121425C1

TUBE,3075 mm Length

FRAME - wing gang, left front, 32 foot

1шт.

3

121426C1

TUBE

FRAME - wing gang, right front, 32 foot

1шт.

4

129772C1

FRAME

- wing gang, left rear, 21 foot

1шт.

Ref #4, 129772C1 & 129773C1 are used on 18' & 19'.

1шт.

4

129773C1

TUBE

FRAME - wing gang, right rear, 21 foot

1шт.

Ref #4, 129772C1 & 129773C1 are used on 18' & 19'.

1шт.

4

129599C1

TUBE

FRAME - wing gang, left rear, 24 foot

1шт.

Ref #4, 129599C1 & 129600C1 are used on 22' & 24'.

1шт.

4

129600C1

TUBE

FRAME - wing gang, right rear, 24 foot

1шт.

Ref #4, 129599C1 & 129600C1 are used on 22' & 24'.

1шт.

4

129778C1

TUBE

FRAME - wing gang, left rear, 28 foot

1шт.

4

129779C1

FRAME

- wing gang, right rear, 28 foot

1шт.

4

121423C1

TUBE

FRAME - wing gang, left rear, 32 foot

1шт.

4

121424C1

TUBE

FRAME - wing gang, right rear, 32 foot

1шт.

Ref #4, 129523C1 & 129524C1 are used on 22' & 24'.

1шт.

5

139640C1

PIN

- wing hinge

4шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange lock, 1/2 inch NC

4шт.

271816

BOLT,Hex, 7/8" - 9 x 2 1/4", Gr 5

- hex, 7/8 NC x 2-1/4 inch

32шт.

492-11088

LOCK WASHER,7/8"

7/8"

32шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

32шт.
