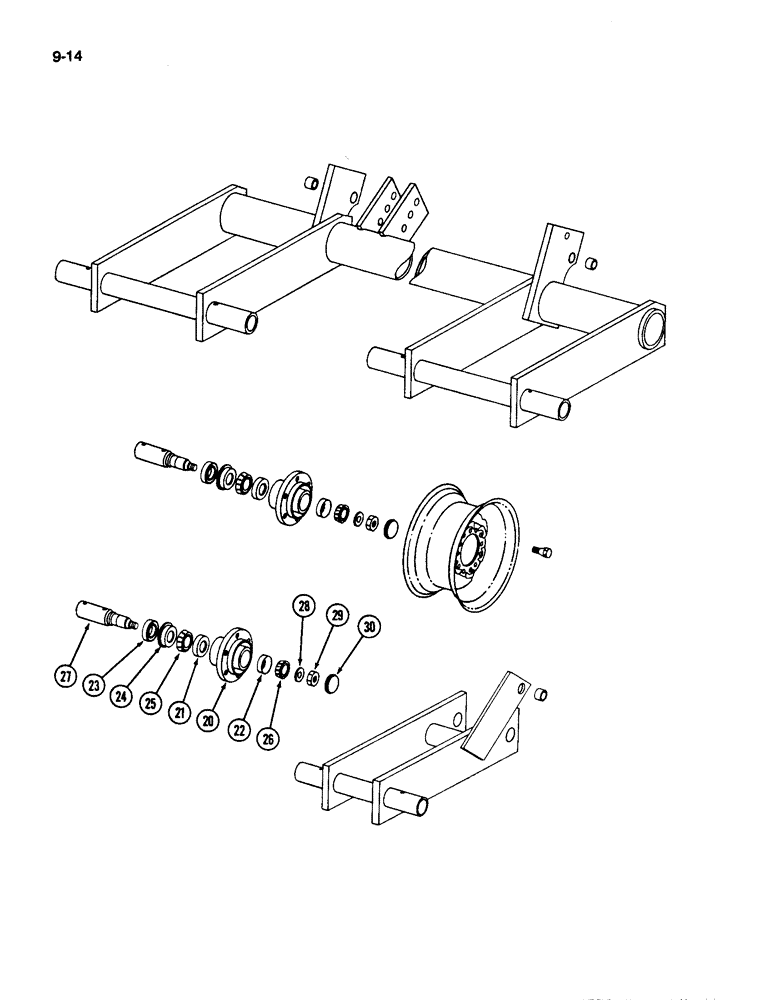

Запчасти Case IH 496 (9-14) - WHEEL AXLE (09) - CHASSIS/ATTACHMENTS

20

606468R21

HUB

- wheel, 6 bolt, heavy duty

6шт.

21

663558R1

BEARING CUP

CUP - bearing, inner

1шт.

22

651817R1

BEARING CUP

CUP - bearing, outer

1шт.

606556R91

OIL SEAL

SEAL ASSEMBLY - wheel hub oil, with wear sleeve

6шт.

23

NSS

NOT SOLD SEPARAT

SEAL - wheel hub oil

1шт.

24

NSS

NOT SOLD SEPARAT

RING - oil seal wear

1шт.

25

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - bearing, inner

6шт.

26

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, outer

6шт.

27

1978726C1

SPINDLE

- wheel, 2-1/8 inch diameter

6шт.

424-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 2

- hex, 1/2 NC x 3-1/2 inch, Grade 2

6шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

6шт.

REF# 29-P/N 70120D NUT IS A 7/8-14 FINE THREAD. PARTSBOOK IS IN ERROR. 9/3/96 JBEDFORD.

1шт.

28

495-81060

WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk

- flat, 29/32 x 1-3/4 x 7/64 inch

6шт.

29

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

6шт.

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

6шт.

30

663906R1

CAP

- wheel hub

6шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, straight, 1/4 inch NF

6шт.
