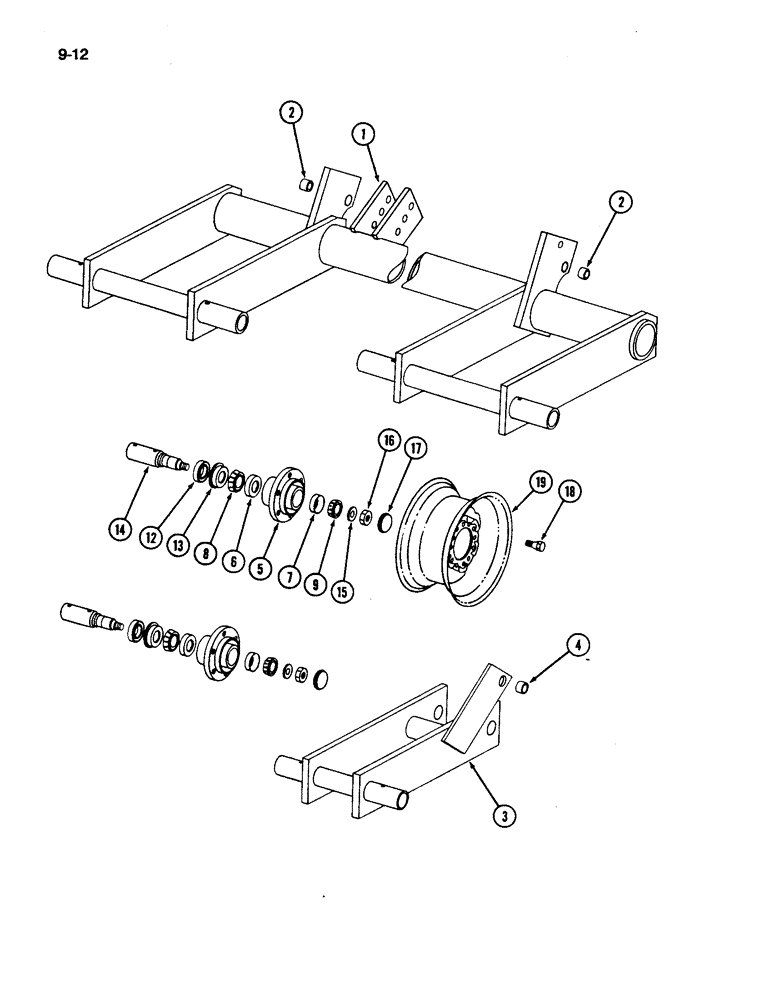

Запчасти Case IH 496 (9-12) - WHEEL AXLE (09) - CHASSIS/ATTACHMENTS

1

1978717C2

AXLE HOUSING

AXLE ASSEMBLY - wheel (Replaces 121440C91)(See Note A)

1шт.

1

1978718C2

AXLE

ASSEMBLY - wheel (Replaces 129873C91)(See Note B)

1шт.

1

1978720C2

AXLE HOUSING

AXLE ASSEMBLY - wheel (Replaces 1337068C1)(Disk Harrow coded V, W and X, see Page 1-6)

1шт.

1

1978719C2

AXLE HOUSING

AXLE ASSEMBLY - wheel (Replaces 1337067C1)(Disk Harrow coded Y and Z, see Page 1-6)

1шт.

re it no. 1 - if dealer is looking for the spindle tube that is (as illustrated on the end of the frame w/ 2 holes - 1/2" ea.) the tube no. is 1978721c1, set up in gpn. ph 3/10/97

1шт.

2

64601C1

BUSHING

- tension

2шт.

1344887C1

BUSHING,44.7mm ID x 53.89mm OD x 80mm L

- axle assembly (Used with 1978717C2, 1978718C2 1978719C2 and 1978720C2)

4шт.

3

1978723C3

ARM ASSY.

ARM ASSEMBLY - wing wheel, left (Replaces 1284199C91)

1шт.

3

1284199C91

ARM ASSY.

ARM ASSEMBLY - wing wheel, left (Replaces 129801C91)

1шт.

3

1978724C3

ARM ASSY.

ARM ASSEMBLY - wing wheel, right (Replaces 1284200C91)

1шт.

3

129802C91

PACKAGE,SERVICE

ARM ASSEMBLY - wing wheel, right (Replaces 129802C91)

1шт.

4

64601C1

BUSHING

- tension

1шт.

91317C91

RING, SET

KIT - arm pivot (Used with 129801C91 or 129802C91 arm)

1шт.

1284112C91

PACKAGE

KIT - wing wheel pivot (See Page 9-5 and 9-7)

1шт.

5

465493R2

HUB

- wheel, 6 bolt

6шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, straight, 1/4 inch NF (Replaces 110146R91)

6шт.

6

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

6шт.

7

371883R1

BEARING CUP

Outer

6шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE - bearing, inner

6шт.

9

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

6шт.

12

667599R91

OIL SEAL

- wheel hub oil

6шт.

13

667564R1

RING

- oil seal wear

6шт.

14

478375R1

SPINDLE

- wheel, 1-3/4 inch diameter

6шт.

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

6шт.

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

6шт.

15

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, hardened

6шт.

16

69442D

NUT

- slotted hex, 3/4 inch NF

6шт.

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

6шт.

17

663908R1

CAP

- hub

6шт.

18

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-1/2 inch

36шт.

19

481344R91

WHEEL

- 14 x 8 KB

6шт.

810768C1

VALVE

- tubeless tire steel

6шт.

19

A57879

RIM

WHEEL - 15 x 8LB

6шт.

810769C1

VALVE

- tubeless tire steel

6шт.

wheel bearing kit on late 496 models is part number 123096a2.

1шт.
