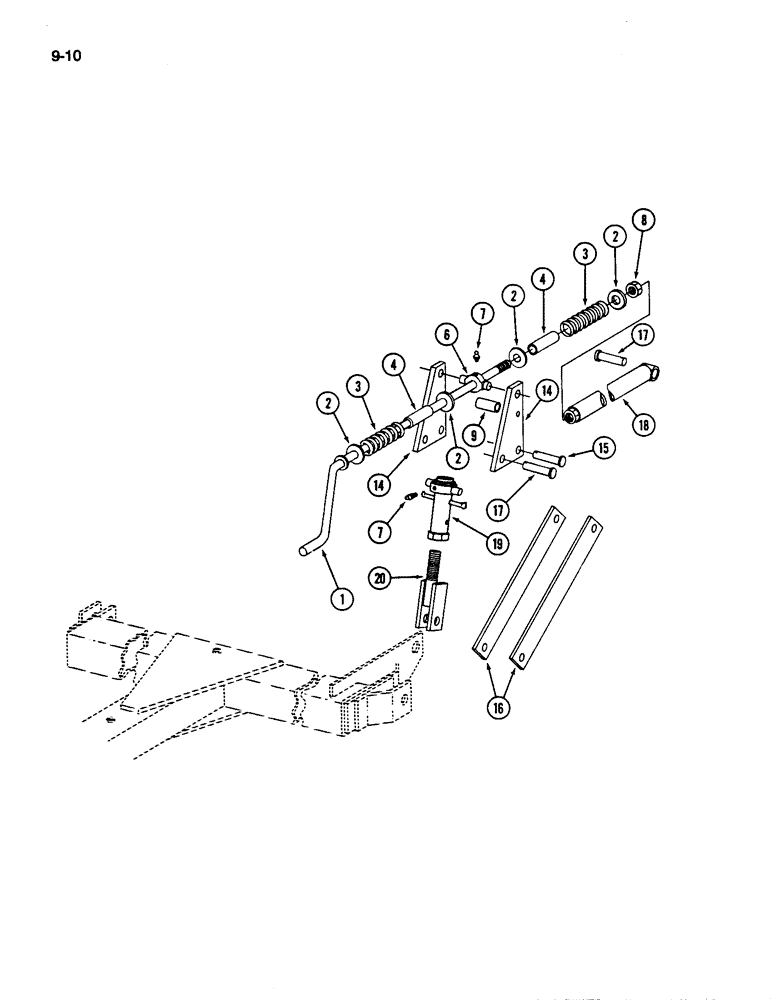

Запчасти Case IH 496 (9-10) - HITCH CRANK (09) - CHASSIS/ATTACHMENTS

1

139571C2

CRANK

- hitch (See Note A)

1шт.

1

139647C2

CRANK

- hitch (See Note B)

1шт.

2

60146C1

WASHER,32.51mm ID x 63.5mm OD x 6.35mm Thk

- spring plug

4шт.

3

139501C1

SPRING

- hitch crank

2шт.

4

147968C1

SPACER

- crank

2шт.

6

60134C1

TRUNNION

- hitch crank

1шт.

7

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, straight, 1/4 inch taper drive thread

2шт.

8

60149C2

LOCK NUT

- hex special, 1-1/4 inch NC

1шт.

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW - square head cup point set, 5/16 NC x 1/2 inch

1шт.

9

139453C1

SPACER

- bell crank

1шт.

413-1084

BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 5

- hex, 5/8 NC x 5-1/4 inch

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

14

139483C1

BAR

- bell crank

2шт.

15

28539R1

CLEVIS PIN,1 1/4" x 6 1/4"

PIN - clevis, 1-1/4 x 6-1/4 inch

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

16

147755C2

BAR

BRACE - hitch crank

2шт.

17

28538R1

CLEVIS PIN,1 1/4" x 5"

PIN - clevis, 1-1/4 x 5 inch

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

18

139668C1

TUBE,477 mm Length

- hitch crank

1шт.

21899R1

HEADED PIN

PIN - headed, 1/2 x 2-1/2 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

19

139670C2

TUBE

LINK - crank

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

1017087R1

PLUG,Cap, .612" OD

CONTAINER - plastic tapered

2шт.

20

147589C2

YOKE

- hitch

1шт.
