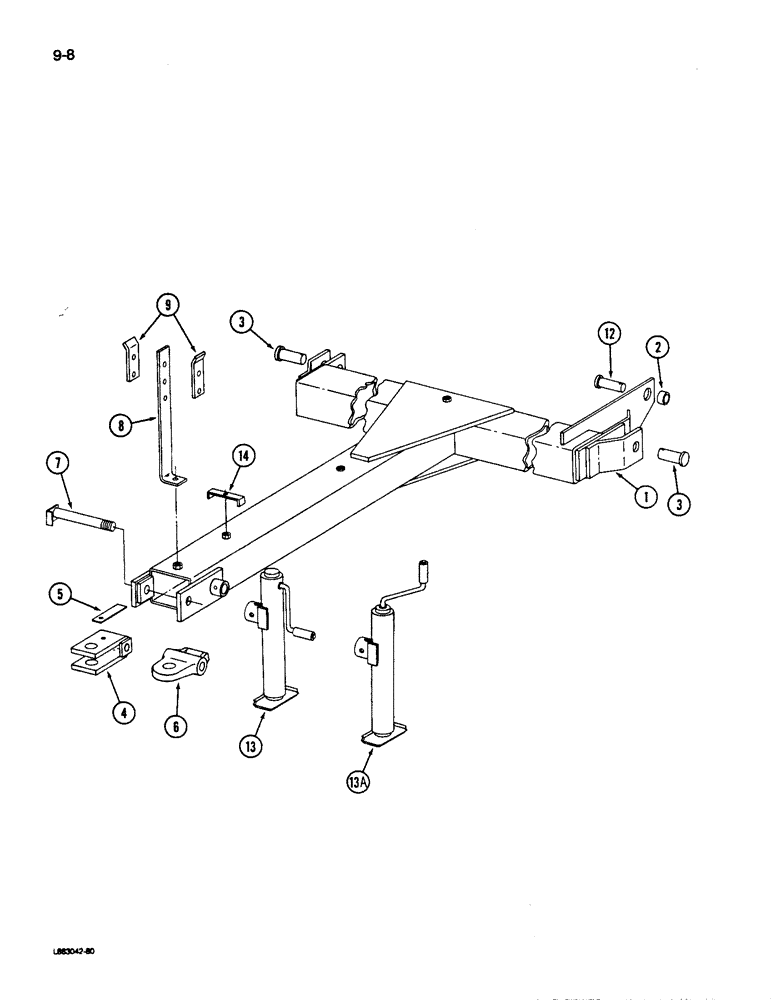

Запчасти Case IH 496 (9-08) - HITCH (09) - CHASSIS/ATTACHMENTS

1

121411C95

HITCH ASSY, TRAILER

HITCH ASSEMBLY - disk harrow main (See Note A)

1шт.

1

129895C95

HITCH ASSY

HITCH ASSEMBLY - disk harrow main (See Note B)

1шт.

2

112886C1

BUSHING

- hitch tension

1шт.

3

28535R1

CLEVIS PIN

PIN - clevis, 1-1/4 x 3-1/4 inch

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

4

129900C2

CLEVIS

ASSEMBLY - hitch (See Note C)

1шт.

5

540475R1

SPRING

- clevis (See Note C)

2шт.

424-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 2

- hex, 5/8 NC x 5 inch, Grade 2

1шт.

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

6

61023C3

HITCH

- hitch (See Note D)

1шт.

7

121362C1

PIN

- hitch clevis

1шт.

20787R1

LOCK NUT,1 1/4"-7, G5

NUT - hex lock, 1-1/4 inch NC

1шт.

8

58643C1

SUPPORT

- hydraulic hose

1шт.

9

58644C1

HOLDER

- hydraulic hose

2шт.

424-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 2

- hex, 3/4 NC x 1-1/4 inch, Grade 2

1шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

424-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 2

- hex, 1/2 NC x 3-1/2 inch, Grade 2

2шт.

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

12

28534R1

CLEVIS PIN,1 1/4" x 3"

PIN - clevis, 1-1/4 x 3 inch

1шт.

1978738C1

HAIR PIN COTTER

3/16"

1шт.

13

119354C1

JACK

ASSEMBLY - side crank (Used, Serial Range: prior-1989)

1шт.

13a

1980965C1

JACK ASSY.

JACK ASSEMBLY - top crank, 5 ton

1шт.

14

129888C2

CLAMP

- hose

3шт.

424-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 2

- hex, 1/2 NC x 1-1/2 inch, Grade 2

3шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

3шт.
