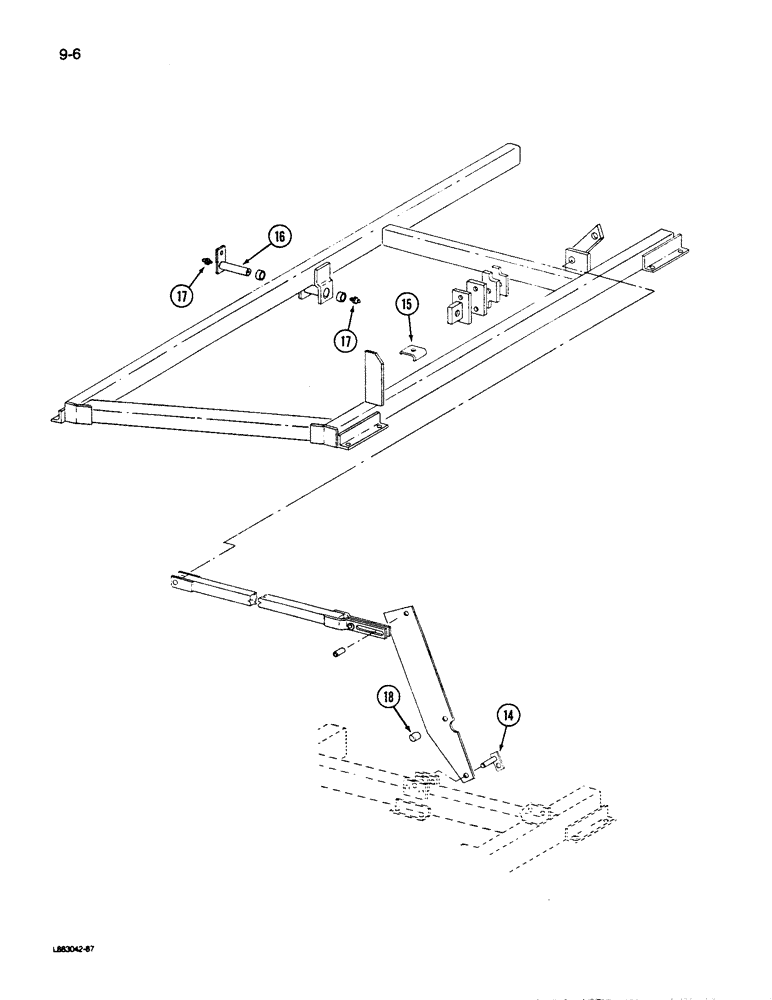

Запчасти Case IH 496 (9-06) - WING FRAME (09) - CHASSIS/ATTACHMENTS

14

139642C1

PIN,25.4mm OD x 190mm L

ASSEMBLY - lift arm pivot

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

15

129886C2

CLAMP

- hose

1шт.

424-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 2

- hex, 1/2 NC x 3/4 inch, Grade 2

1шт.

424-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 2

- hex, 1/2 NC x 1-1/2 inch, Grade 2

1шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

16

1284054C1

PIN ASSY.

PIN ASSEMBLY - wing wheel

2шт.

Part of wing wheel pivot kit P/N 1284112C91

1шт.

413-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 5

- hex, 7/8 NC x 2 inchc , Course threads

2шт.

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

2шт.

17

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, straight, 1/4 inch taper drive thread

4шт.

Part of wing wheel pivot kit P/N 1284112C91

1шт.

1284112C91

PACKAGE

KIT - wing wheel pivot, Includes: Ref. 16 and 17 and Ref. 2, 3 from figure 9-04

1шт.

18

64601C1

BUSHING

- tension

2шт.
