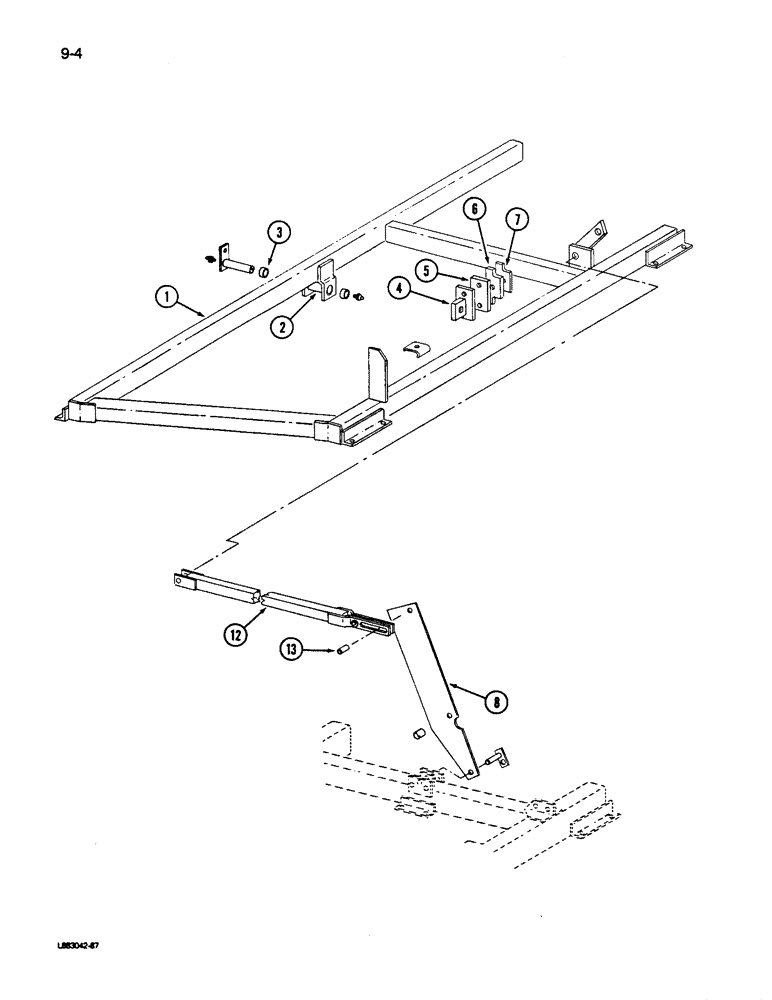

Запчасти Case IH 496 (9-04) - WING FRAME (09) - CHASSIS/ATTACHMENTS

1

1284183C1

BAR

FRAME ASSEMBLY - left wing, 18 foot

1шт.

1

1337055C1

BAR ASSY.

FRAME ASSEMBLY - left wing, 18 foot (Disk Harrow coded Y, see Page 1-6)

1шт.

1

1284184C1

BAR ASSY.

FRAME ASSEMBLY - right wing, 18 foot

1шт.

1

1337056C1

BAR ASSY.

FRAME ASSEMBLY - right wing, 18 foot (Disk Harrow coded Y, see Page 1-6)

1шт.

1

1284185C1

BAR

FRAME ASSEMBLY - left wing, 22 and 24 foot

1шт.

1

1337057C1

BAR ASSY.

FRAME ASSEMBLY - left wing, 22 and 24 foot (Disk Harrow coded V and Z, see Page 1-6)

1шт.

1

1284186C1

BAR ASSY.

FRAME ASSEMBLY - right wing, 22 and 24 foot

1шт.

1

1337058C1

BAR ASSY.

FRAME ASSEMBLY - right wing, 22 and 24 foot (Disk Harrow coded V and Z, see Page 1-6)

1шт.

1

1284187C1

BAR

FRAME ASSEMBLY - left wing, 28 and 32 foot

1шт.

1

1337059C1

BAR ASSY.

FRAME ASSEMBLY - left wing, 28 and 32 foot (Disk Harrow coded W and X, see Page 1-6)

1шт.

1

1284188C1

BAR

FRAME ASSEMBLY - right wing, 28 and 32 foot

1шт.

1

1337060C1

BAR ASSY.

FRAME ASSEMBLY - right wing, 28 and 32 foot (Disk Harrow coded W and X, see Page 1-6)

1шт.

2

1284053C1

TUBE,44.958 - 46.05 mm ID, 60.325 mm OD, 146 mm Length

SUPPORT - wing wheel pivot

2шт.

REF#2 is actually like a tube.Ref#3 bushings go into this.

1шт.

Part of wing wheel pivot kit P/N 1284112C91

1шт.

3

1284106C1

BUSHING,44.45mm ID x 50.8mm OD x 31.75mm L

- frame tension

4шт.

REF#2 is actually like a tube.Ref#3 bushings go into this.

1шт.

Part of wing wheel pivot kit P/N 1284112C91

1шт.

4

129682C2

ANCHOR

SUPPORT - wing cylinder anchor

2шт.

5

129683C1

BAR

- wing cylinder anchor

2шт.

6

129685C1

BAR

- spacer

4шт.

7

129686C1

BAR

- spacer

2шт.

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

4шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT - hex lock, two way, 3/4 inch NC

4шт.

8

121461C3

BAR

- cylinder arm

2шт.

Used on disk harrow coded A, B, C, F, G, H, K, L, M, Q, R, S, V, W and X. See page 1-6 for applicaation

1шт.

8

129869C5

BAR

- cylinder arm

2шт.

Used on disk harrow coded D, E, I, J, N, P, T, U, Y and Z. See page 1-6 for application index.

1шт.

12

121433C1

TUBE,1797, 54 mm Length

ARM - lift link

2шт.

Used on disk harrow coded A, B, C, F, G, H, K, L, M, Q, R, S, V, W and X. See page 1-6 for applicaation

1шт.

12

129876C1

TUBE,1342 mm Length

ARM - lift link

2шт.

Used on disk harrow coded D, E, I, J, N, P, T, U, Y and Z. See page 1-6 for application index.

1шт.

28544R1

PIN

- clevis, 1 x 3-1/2 inch

2шт.

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

13

129597C1

PIN,25.4mm OD x 82mm L

- arm

2шт.

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

1284112C91

PACKAGE

KIT - wing wheel pivot, Includes: Ref. 2 and 3 and Ref. 16, 17 from figure 9-06

1шт.
