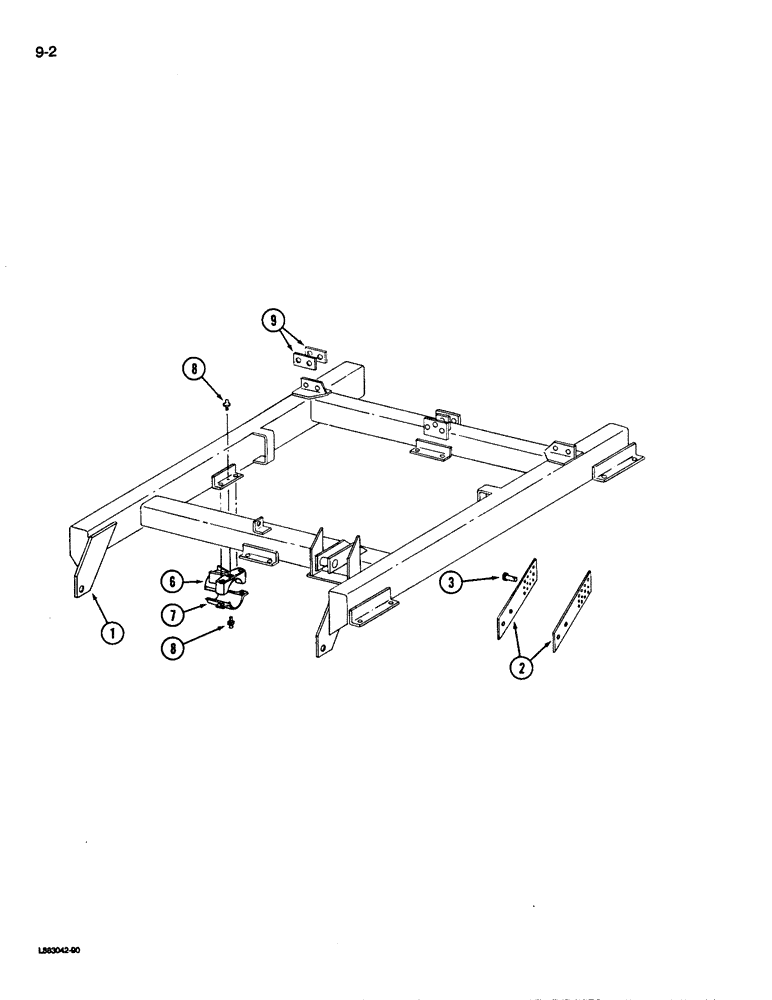

Запчасти Case IH 496 (9-02) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

96164C92

FUNNEL

FRAME ASSEMBLY - main (Also order two 96273C1 bearing) (See Note A)

1шт.

1

96165C92

FUNNEL

FRAME ASSEMBLY - main (Also order two 96273C1 bearing) (See Note B)

1шт.

REF

INSTRUCTION

DECAL - caution, operation (See Page 9-59 and 61)

1шт.

REF

INSTRUCTION

DECAL - warning, keep clear (See Page 9-59 and 61)

1шт.

2

139490C4

BAR

- gauging

2шт.

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- hex, 7/8 NC x 3 inch

2шт.

9413973

LOCK NUT,7/8"-9, GB

NUT - hex lock, 7/8 inch NC

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

3

22096R1

HEADED PIN,3/4" x 2 1/4"

PIN - headed, 3/4 x 2-1/4 inch

4шт.

1978738C1

HAIR PIN COTTER

3/16"

2шт.

6

96273C1

BEARING HALF

BEARING - wheel shaft (Part no. stamped on part)

2шт.

6

491921R1

CYLINDER END CAP

BEARING - wheel shaft (Part no. stamped on part)

2шт.

6

1263593C1

SUPPORT

BEARING - wheel shaft (Part no. stamped on part)

1шт.

7

1284387C1

CAP

- wheel shaft bearing (Used with 96273C1)

2шт.

7

540979R1

BEARING CAP,3"

CAP - wheel shaft bearing (Used with 491921R1 and 1263593C1)

2шт.

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

8

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, straight, 1/4 inch taper drive thread

4шт.

9

139584C2

BAR

- transport lock

4шт.

21957R1

HEADED PIN,5/8" x 2"

PIN - headed, 5/8 x 2 inch

4шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

1978738C1

HAIR PIN COTTER

3/16"

2шт.
