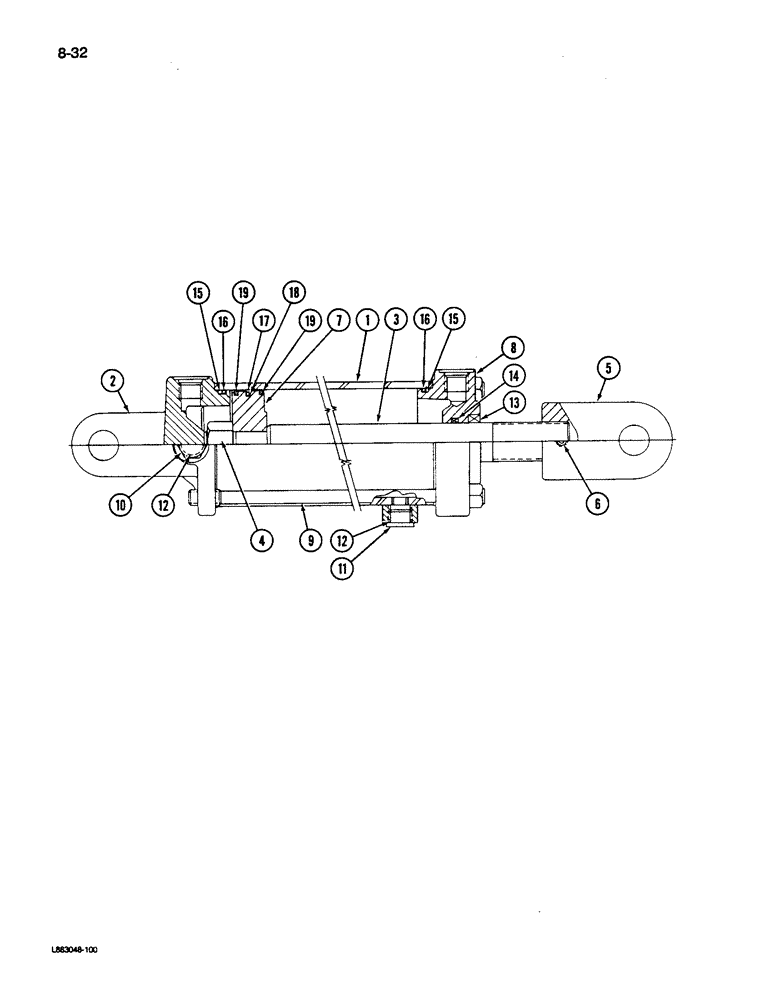

Запчасти Case IH 496 (8-32) - TRANSPORT LIFT CYLINDER 3-1/2 X 8 INCH (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1282324C92
CYLINDER
ASSEMBLY - lift (Stamped on cylinder)(Replaces 145428C93 Cylinder assembly, See Page 8-31)
1шт.
84255910R
REMAN-HYD CYLINDER
496, Reman For New P/N 1282324C92
1шт.
84255910C
CORE-HYD CYLINDER
Return Number
1шт.
1
145424C2
HYD TUBE,3.5" ID, 10.167" Length
BODY - cylinder
1шт.
2
1923599C1
HEAD
- cylinder rear
1шт.
3
145231C1
PISTON ROD
ROD - piston
1шт.
4
20268R1
LOCK NUT,7/8"-14, GC
NUT - hex lock, 7/8 inch NF, Grade 8
1шт.
5
145233C1
CLEVIS,1/4" - 12
- rod
1шт.
6
145453C1
PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon
PAD - insert
1шт.
125843
SET SCREW,Hex Skt, 3/8"-16 x 3/8"
SCREW - set, hex socket, 3/8 NC x 3/8 inch
1шт.
7
85179C1
PISTON
- cylinder
1шт.
8
1272826C1
HEAD
- cylinder, front
1шт.
9
1272524C1
TIE-ROD,1/2" -13 x 12.65", UNC
ROD - cylinder retaining
4шт.
102637
NUT,1/2"-13, G5
4шт.
10
9410359
PLUG
- hex, 3/4-16 inch o-ring boss
1шт.
11
224582C1
PLUG
- hex socket, 3/4-16 inch, o-ring boss
1шт.
12
NSS
NOT SOLD SEPARAT
O-RING - 1/2 inch OD
2шт.
Part of O-Ring cylinder repair kit P/N 84919C2
1шт.
13
NSS
NOT SOLD SEPARAT
WIPER - piston rod
1шт.
Part of O-Ring cylinder repair kit P/N 84919C2
1шт.
14
NSS
NOT SOLD SEPARAT
SEAL - piston rod
1шт.
Part of O-Ring cylinder repair kit P/N 84919C2
1шт.
15
NSS
NOT SOLD SEPARAT
WASHER - backup
2шт.
Part of O-Ring cylinder repair kit P/N 84919C2
1шт.
16
NSS
NOT SOLD SEPARAT
O-RING - 3-1/4 x 3-1/2 inch
2шт.
Part of O-Ring cylinder repair kit P/N 84919C2
1шт.
17
NSS
NOT SOLD SEPARAT
RING - piston seal
1шт.
Part of O-Ring cylinder repair kit P/N 84919C2
1шт.
18
NSS
NOT SOLD SEPARAT
O-RING - 3 x 3-3/16 inch
1шт.
Part of O-Ring cylinder repair kit P/N 84919C2
1шт.
19
NSS
NOT SOLD SEPARAT
RING - piston wear
2шт.
Part of O-Ring cylinder repair kit P/N 84919C2
1шт.
84919C2
GASKET KIT
KIT - cylinder repair, o-ring, Includes: Ref. 12, 13, 14, 15, 16, 17, 18 and 19
1шт.
