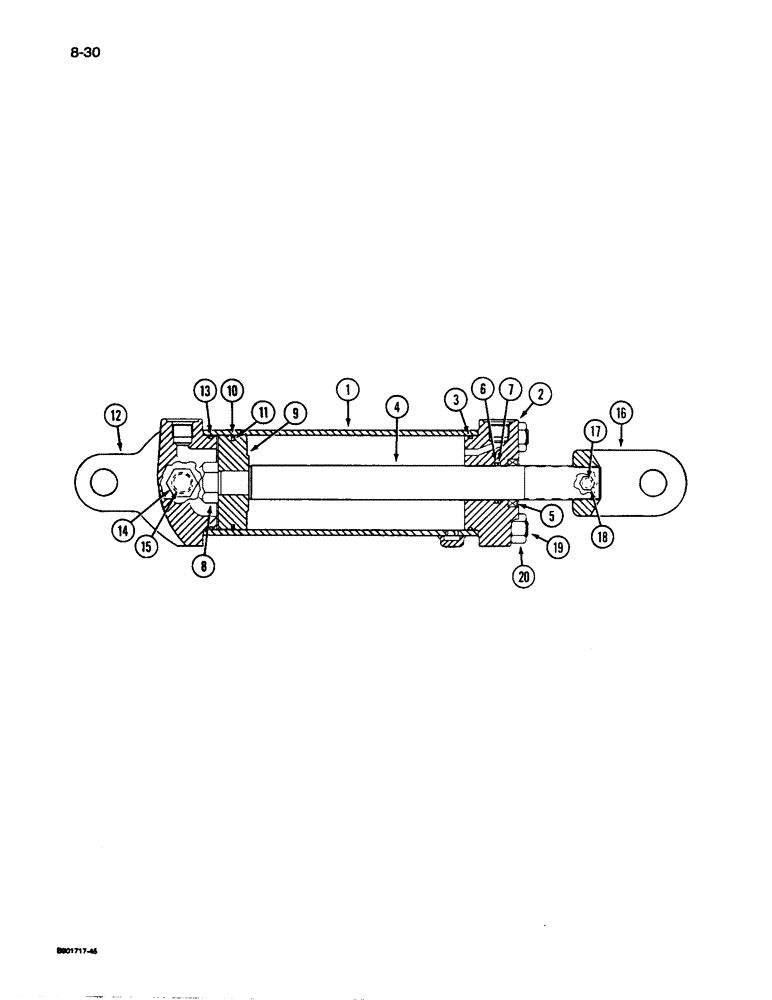

Запчасти Case IH 496 (8-30) - TRANSPORT LIFT CYLINDER 3-1/2 X 8 INCH (08) - HYDRAULICS

145428C93

CYLINDER

ASSEMBLY - lift (Stamped on cylinder)(Replaced by 1282324C92 Cylinder assembly,

1шт.

84255910R

REMAN-HYD CYLINDER

496, Reman For New P/N 145428C93

1шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

145476C1

HEAD

GLAND - cylinder (Replaced by 1260879C1)

1шт.

2

1260879C1

HEAD

GLAND - cylinder (Replaces 145476C1)

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 x 3-1/2 inch

1шт.

4

145231C1

PISTON ROD

ROD - piston

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston rod (Use with 1260879C1 gland)

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 x 1-1/2 inch (Use with 145476C1 gland)

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup (Use with 145476C1 gland)

1шт.

8

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, Grade 8

1шт.

9

145422C2

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 3 x 3-3/16 inch

1шт.

12

142453C3

HEAD

- cylinder, closed end

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 x 3-1/2 inch, cylinder head

1шт.

14

9410359

PLUG

- hex, 3/4-16 inch o-ring boss

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch, plug

1шт.

16

145233C1

CLEVIS,1/4" - 12

- piston rod

1шт.

17

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

18

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

19

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT - tie, cylinder

4шт.

20

425-1010

NUT,5/8"-11, G5

4шт.

84919C2

GASKET KIT

KIT - seal, use with 1260879C1 gland, includes items 3, 5, 6 (Seal), 10, 13 and 15

1шт.

145574C1

KIT

- seal, use with 145476C1 gland, includes items 3, 5, 6 (O-ring), 7, 10, 11, 13 and 15

1шт.
