Артикул
Название
Примечание
Количество

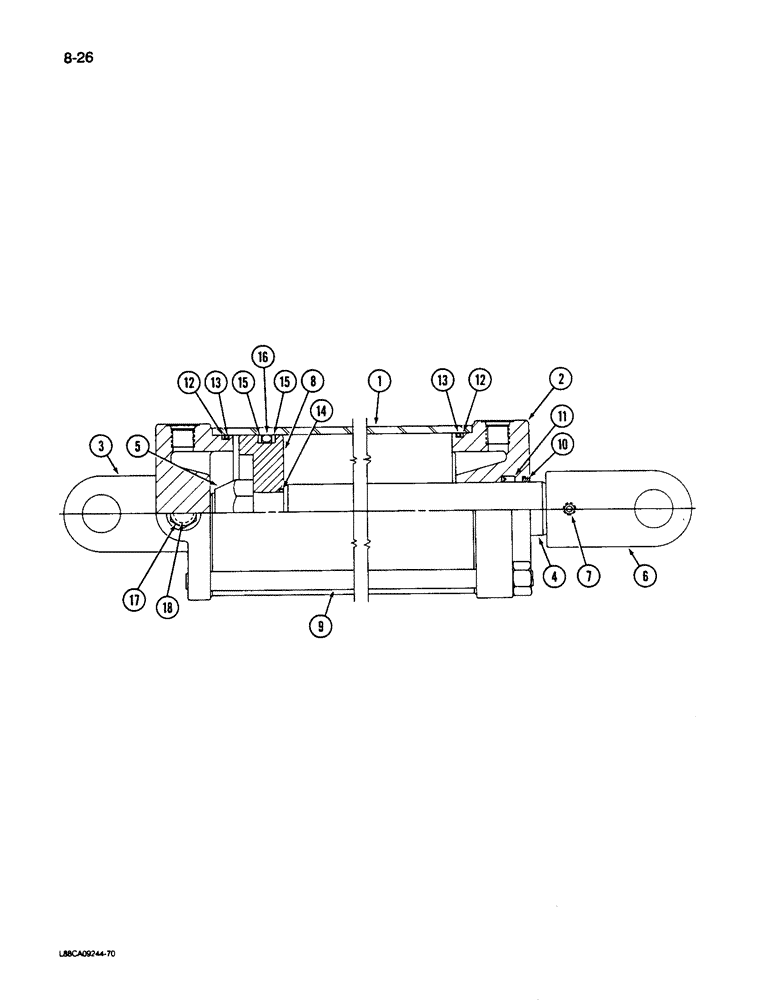

84993C91
CYLINDER ASSY.
CYLINDER ASSEMBLY - wing folding (Stamped on cylinder)
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - cylinder (Order 84993C91)
1шт.
2
92477C1
END
HEAD - cylinder, front
1шт.
3
92478C1
END
HEAD - cylinder, rear
1шт.
4
78049C1
ROD
- piston
1шт.
5
27137R1
LOCK NUT,1 1/4"-12, GC
NUT - hex lock, 1-1/4 inch NF, Grade 8
1шт.
6
76704C1
FORK
CLEVIS - rod end
1шт.
7
145453C1
PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon
PAD - insert
1шт.
222518
SET SCREW,Hex Soc, 3/8"-24 x 3/8"
SCREW - hex socket set, 3/8 NF x 3/8 inch
1шт.
8
76701C1
PISTON
- cylinder
1шт.
9
78048C1
ROD,5/8" - 18 x 21 5/8"
- cylinder retaining
4шт.
129-127
NUT,5/8"-18, G5
4шт.
10
NSS
NOT SOLD SEPARAT
WIPER - piston rod
1шт.
Part of O-Ring repair kit P/N 92633C1
1шт.
11
NSS
NOT SOLD SEPARAT
SEAL - piston rod
1шт.
Part of O-Ring repair kit P/N 92633C1
1шт.
12
NSS
NOT SOLD SEPARAT
WASHER - backup
2шт.
Part of O-Ring repair kit P/N 92633C1
1шт.
13
NSS
NOT SOLD SEPARAT
O-RING - 4-5/8 x 4-7/8 inch
2шт.
Part of O-Ring repair kit P/N 92633C1
1шт.
14
NSS
NOT SOLD SEPARAT
O-RING - 1-1/4 x 1-3/8 inch
1шт.
Part of O-Ring repair kit P/N 92633C1
1шт.
15
NSS
NOT SOLD SEPARAT
WASHER - backup
2шт.
Part of O-Ring repair kit P/N 92633C1
1шт.
16
NSS
NOT SOLD SEPARAT
O-RING - 4-1/2 x 5 inch
1шт.
Part of O-Ring repair kit P/N 92633C1
1шт.
17
9410359
PLUG
- hex, 3/4-16 inch o-ring boss
1шт.
18
NSS
NOT SOLD SEPARAT
O-RING - 1/2 inch OD
1шт.
Part of O-Ring repair kit P/N 92633C1
1шт.
92633C1
SEAL KIT
KIT - o-ring repair, Includes: Ref. 10, 11, 12, 13, 14, 15, 16 and 18
1шт.
Выбрано товаров: 30
