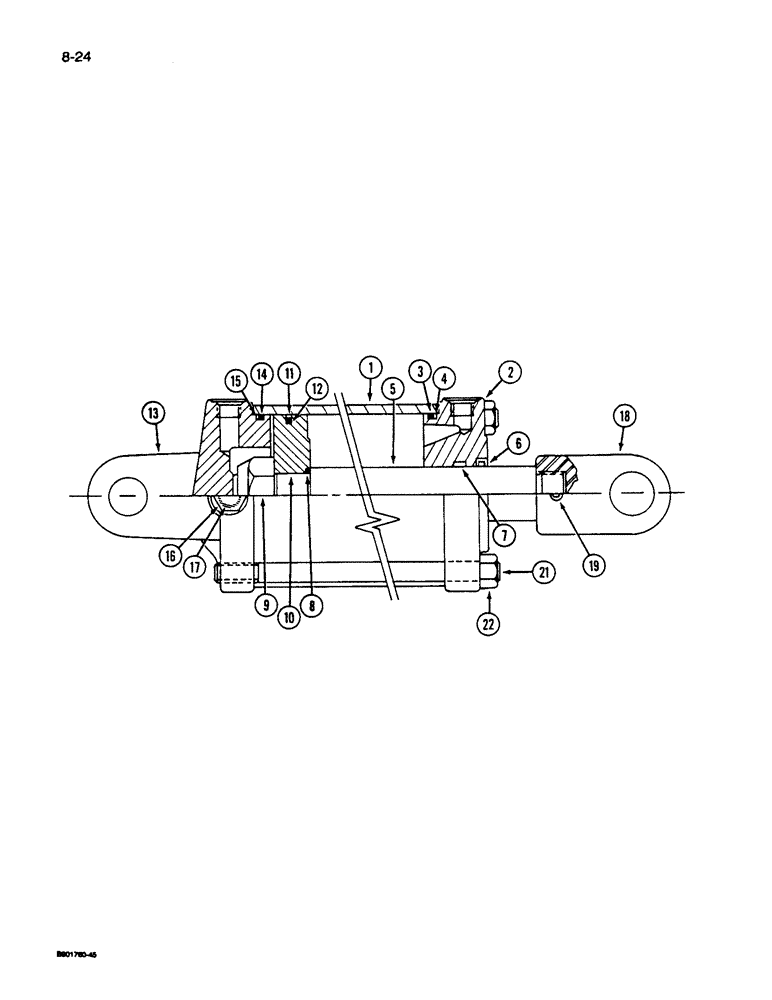

Запчасти Case IH 496 (8-24) - WING FOLDING CYLINDER 5 X 8 INCH (08) - HYDRAULICS

1343711C1

CYLINDER,Double Acting, 44.45mm Rod, 203.2mm Stroke

ASSEMBLY - wing folding (Stamped on cylinder)(Replaces 1286450C91 Cylinder assembly, See Page 8-23)

1шт.

1343711C1R

REMAN-HYD CYLINDER

496 CASE IH DISK HARROW, ASSY, wing folding

1шт.

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1286380C1

HEAD

- cylinder, front

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of O-Ring repair kit P/N 85125C2

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland o-ring

1шт.

Part of O-Ring repair kit P/N 85125C2

1шт.

5

1343712C1

ROD

- piston

1шт.

Part of O-Ring repair kit P/N 85125C2

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of O-Ring repair kit P/N 85125C2

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

Part of O-Ring repair kit P/N 85125C2

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston, Serial Range: rod-piston

1шт.

Part of O-Ring repair kit P/N 85125C2

1шт.

9

27137R1

LOCK NUT,1 1/4"-12, GC

NUT - hex lock, 1-1/4 inch NF, Grade 8

1шт.

10

1286382C2

PISTON

- cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of O-Ring repair kit P/N 85125C2

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - backup, piston seal

1шт.

Part of O-Ring repair kit P/N 85125C2

1шт.

13

1286381C1

HEAD

- cylinder, rear

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

1шт.

Part of O-Ring repair kit P/N 85125C2

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head o-ring

1шт.

Part of O-Ring repair kit P/N 85125C2

1шт.

16

9410359

PLUG

- hex, 3/4-16 inch o-ring boss

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of O-Ring repair kit P/N 85125C2

1шт.

18

1343713C1

CLEVIS,1 -1/2" - 12

- rod

1шт.

19

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

1шт.

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert (Not shown)

1шт.

21

1286385C1

TIE-ROD,3/4" - 10 x 13.81"

ROD - cylinder retaining

4шт.

22

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

85125C2

SEAL KIT

KIT - o-ring repair, Includes: Ref. 3, 4, 5, 6, 7, 8, 11, 12, 14, 15, and 17

1шт.
