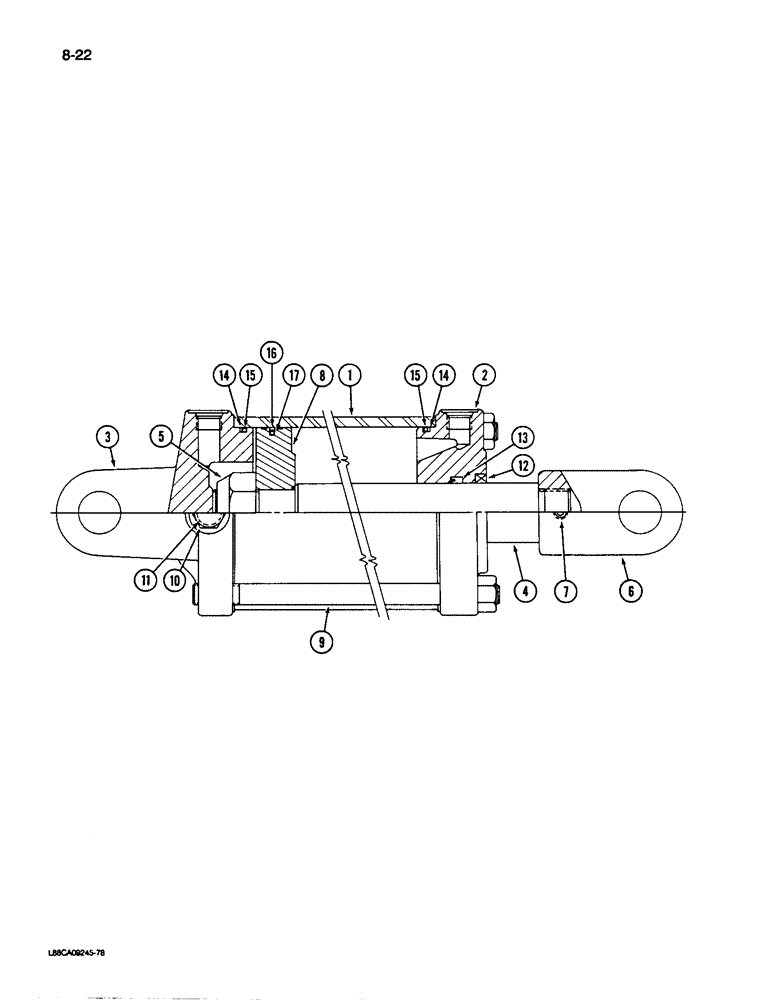

Запчасти Case IH 496 (8-22) - WING FOLDING CYLINDER 5 X 8 INCH (08) - HYDRAULICS

1286450C91

CYLINDER

ASSEMBLY - wing folding (Stamped on cylinder)(Replaced by 1343711C1 Cylinder assembly, See Page 8-25)

1шт.

1343711C1R

REMAN-HYD CYLINDER

496 CASE IH DISK HARROW, ASSY, wing folding, Reman for New PN 1286450C91

1шт.

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order 1286450C91)

1шт.

2

1286380C1

HEAD

- cylinder, front

1шт.

3

1286381C1

HEAD

- cylinder, rear

1шт.

4

1286383C1

ROD

- piston

1шт.

5

27137R1

LOCK NUT,1 1/4"-12, GC

NUT - hex lock, 1-1/4 inch NF, Grade 8

1шт.

6

1286384C1

CLEVIS,1 -3/8" - 12

- rod end

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - set, hex socket, 3/8 NC x 3/8 inch

1шт.

8

1286382C2

PISTON

- cylinder

1шт.

9

1286385C1

TIE-ROD,3/4" - 10 x 13.81"

ROD - cylinder retaining

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

10

9410359

PLUG

- hex, 3/4-16 inch o-ring boss

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch OD

1шт.

Part of O-Ring repair kit P/N 85125C2

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of O-Ring repair kit P/N 85125C2

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of O-Ring repair kit P/N 85125C2

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

Part of O-Ring repair kit P/N 85125C2

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - 4-3/4 x 5 inch

2шт.

Part of O-Ring repair kit P/N 85125C2

1шт.

16

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

Part of O-Ring repair kit P/N 85125C2

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - 4-1/2 x 4-11/16 inch

1шт.

Part of O-Ring repair kit P/N 85125C2

1шт.

85125C2

SEAL KIT

KIT - o-ring repair, Includes: Ref. 11, 12, 13, 14, 15, 16 and 17

1шт.
