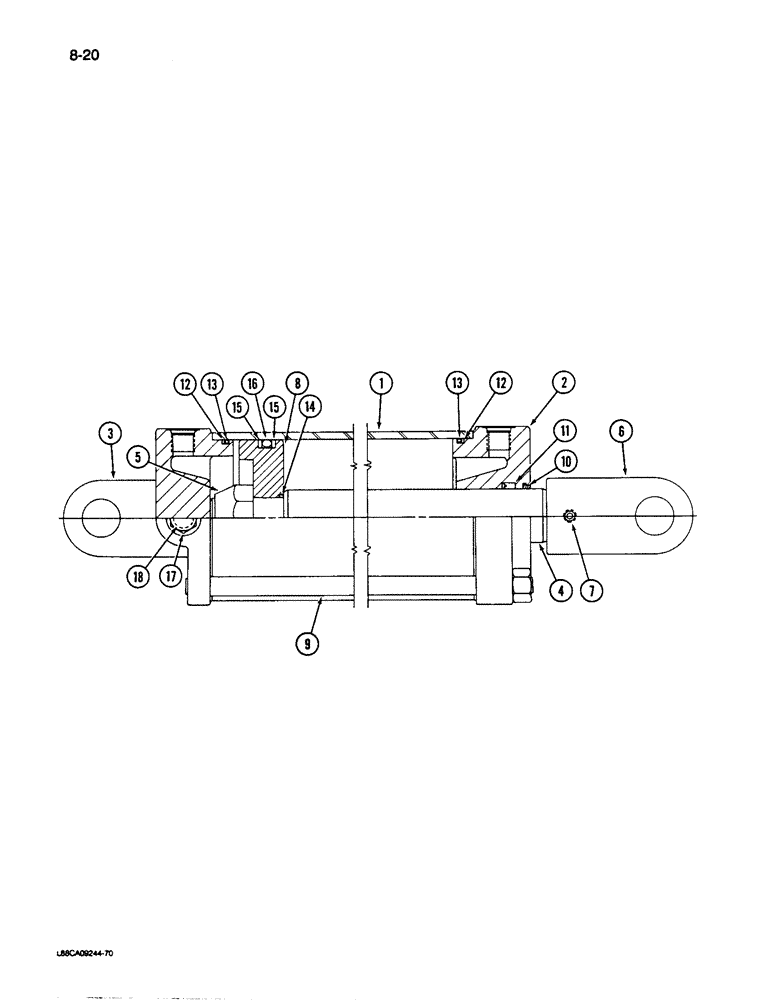

Запчасти Case IH 496 (8-20) - WING FOLDING CYLINDER 5 X 8 INCH (08) - HYDRAULICS

84997C91

CYLINDER

ASSEMBLY - wing folding

1шт.

1343711C1R

REMAN-HYD CYLINDER

496 CASE IH DISK HARROW, ASSEMBLY - wing folding, Reman for New PN 84997C91

1шт.

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order 84997C91)

1шт.

2

92481C1

END

HEAD - cylinder, front

1шт.

3

92482C1

END

HEAD - cylinder, rear

1шт.

4

76791C1

ROD

- piston

1шт.

5

27137R1

LOCK NUT,1 1/4"-12, GC

NUT - hex lock, 1-1/4 inch NF, Grade 8

1шт.

6

76794C1

CLEVIS,1 -1/2" - 12

- rod end (replaces 79794C1)

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

222518

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW - hex socket set, 3/8 NF x 3/8 inch

1шт.

8

76701C1

PISTON

- cylinder

1шт.

9

76793C1

STUD,5/8" - 18 x 13 5/8"

ROD - cylinder retaining

4шт.

129-127

NUT,5/8"-18, G5

4шт.

10

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of O-Ring repair kit P/N 92634C1

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of O-Ring repair kit P/N 92634C1

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

Part of O-Ring repair kit P/N 92634C1

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 4-5/8 x 4-7/8 inch

2шт.

Part of O-Ring repair kit P/N 92634C1

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 x 1-3/8 inch

1шт.

Part of O-Ring repair kit P/N 92634C1

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

Part of O-Ring repair kit P/N 92634C1

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 4-1/2 x 5 inch

1шт.

Part of O-Ring repair kit P/N 92634C1

1шт.

17

9410359

PLUG

- hex, 3/4-16 inch o-ring boss

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch OD

1шт.

Part of O-Ring repair kit P/N 92634C1

1шт.

92634C1

SEAL KIT

KIT - o-ring repair, Includes: Ref. 10, 11, 12, 13, 14, 15, 16 and 18

1шт.
