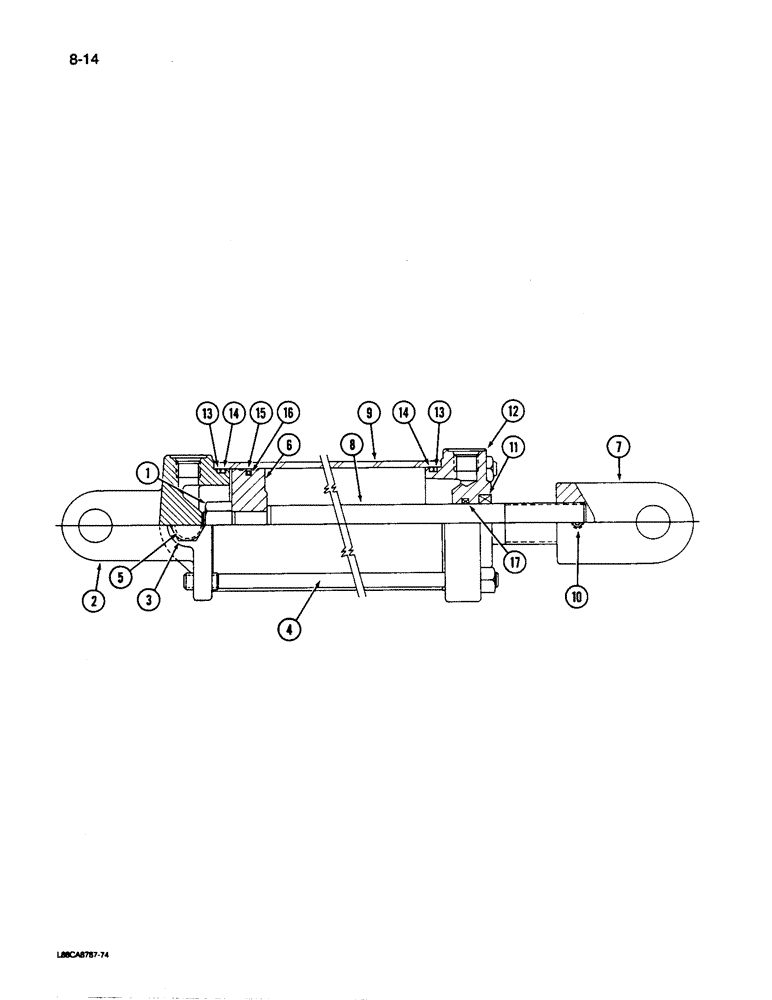

Запчасти Case IH 496 (8-14) - WING FOLDING CYLINDER 3-1/2 X 16 INCH (08) - HYDRAULICS

1272149C91

CYLINDER

ASSEMBLY - wing folding (Stamped on cylinder)

1шт.

1272149C92R

REMAN-HYD CYLINDER

496 CASE IH DISK HARROW, ASSEMBLY, wing folding, Reman for New PN 1272149C91

1шт.

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

1

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, Grade 8

1шт.

2

1282334C1

HEAD

- cylinder, rear

1шт.

3

9410359

PLUG

- hex, 3/4-16 inch o-ring boss

1шт.

4

1282287C1

TIE-ROD,1/2" - 13 x 28.656"

ROD - cylinder retaining

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

5

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch OD

1шт.

Part of seal and O-Ring kit P/N 79978C2

1шт.

6

145422C1

PISTON

- cylinder

1шт.

7

145240C1

CLEVIS,1 -1/2" - 12

- rod

1шт.

8

1282397C1

PISTON ROD

ROD - piston

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order 1272149C91)

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - set, hex socket, 3/8 NC x 3/8 inch

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal and O-Ring kit P/N 79978C2

1шт.

12

1282335C1

HEAD

- cylinder, front

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

Part of seal and O-Ring kit P/N 79978C2

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 x 3-1/2 inch

2шт.

Part of seal and O-Ring kit P/N 79978C2

1шт.

15

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

Part of seal and O-Ring kit P/N 79978C2

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 3 x 3-3/16 inch

1шт.

Part of seal and O-Ring kit P/N 79978C2

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal and O-Ring kit P/N 79978C2

1шт.

79978C2

SEAL KIT

KIT - seal and o-ring, Includes: Ref. 5, 11, 13, 14, 15, 16 and 17

1шт.
