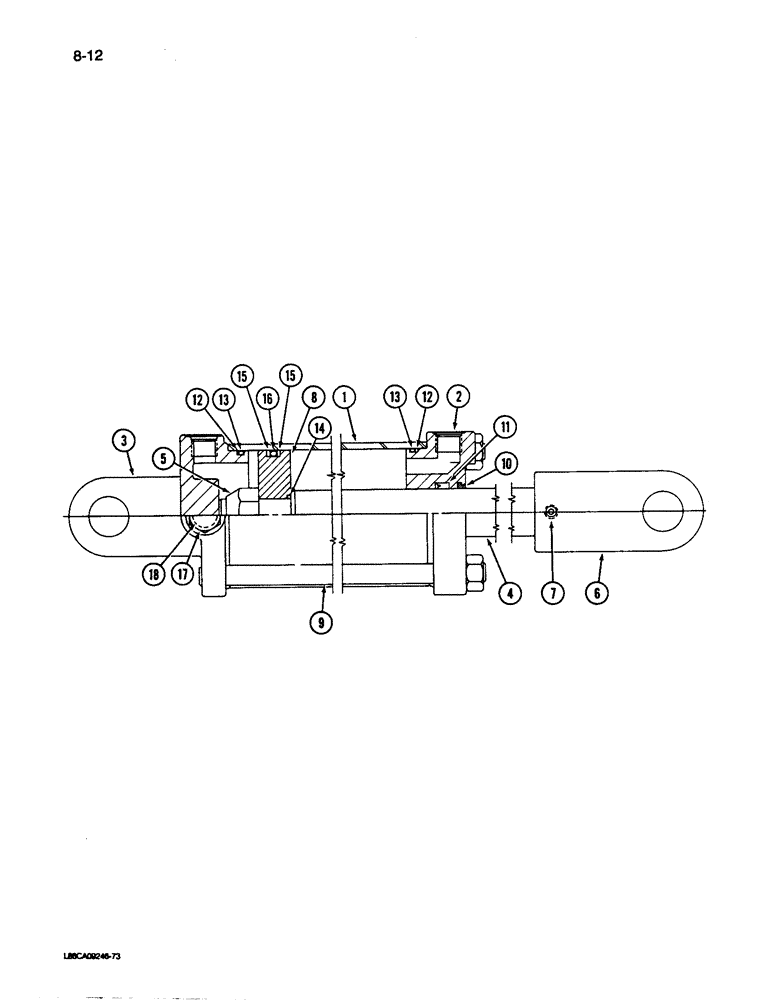

Запчасти Case IH 496 (8-12) - WING FOLDING CYLINDER 3-1/2 X 16 INCH (08) - HYDRAULICS

84994C91

CYLINDER

ASSEMBLY - wing folding (Stamped on cylinder)

1шт.

1272149C92R

REMAN-HYD CYLINDER

496 CASE IH DISK HARROW, ASSEMBLY, wing folding, Reman for New PN 84994C91

1шт.

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order 84994C91)

1шт.

2

92475C1

END

HEAD - cylinder, front

1шт.

3

92533C1

END

HEAD - cylinder, rear

1шт.

4

92540C1

ROD

- piston

1шт.

5

25878R1

LOCK NUT,1"-14, GC

NUT - hex lock, 1 inch NF

1шт.

6

76704C1

FORK

CLEVIS - rod end

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

222518

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW - hex socket set, 3/8 NF x 3/8 inch

1шт.

8

92539C1

PISTON

- cylinder

1шт.

9

92541C1

TIE-ROD

ROD - cylinder retaining

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

10

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of O-Ring repair kit P/N 79155C1

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of O-Ring repair kit P/N 79155C1

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

Part of O-Ring repair kit P/N 79155C1

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 3-1/16 x 3-3/8 inch

2шт.

Part of O-Ring repair kit P/N 79155C1

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 1 x 1-1/16 inch

1шт.

Part of O-Ring repair kit P/N 79155C1

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

Part of O-Ring repair kit P/N 79155C1

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 3-1/16 x 3-1/2 inch

1шт.

Part of O-Ring repair kit P/N 79155C1

1шт.

17

9410359

PLUG

- hex, 3/4-16 inch o-ring boss

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch OD

1шт.

Part of O-Ring repair kit P/N 79155C1

1шт.

79155C1

SEAL KIT

- o-ring repair, Includes: Ref. 10, 11, 12, 13, 14, 15, 16 and 18

1шт.
