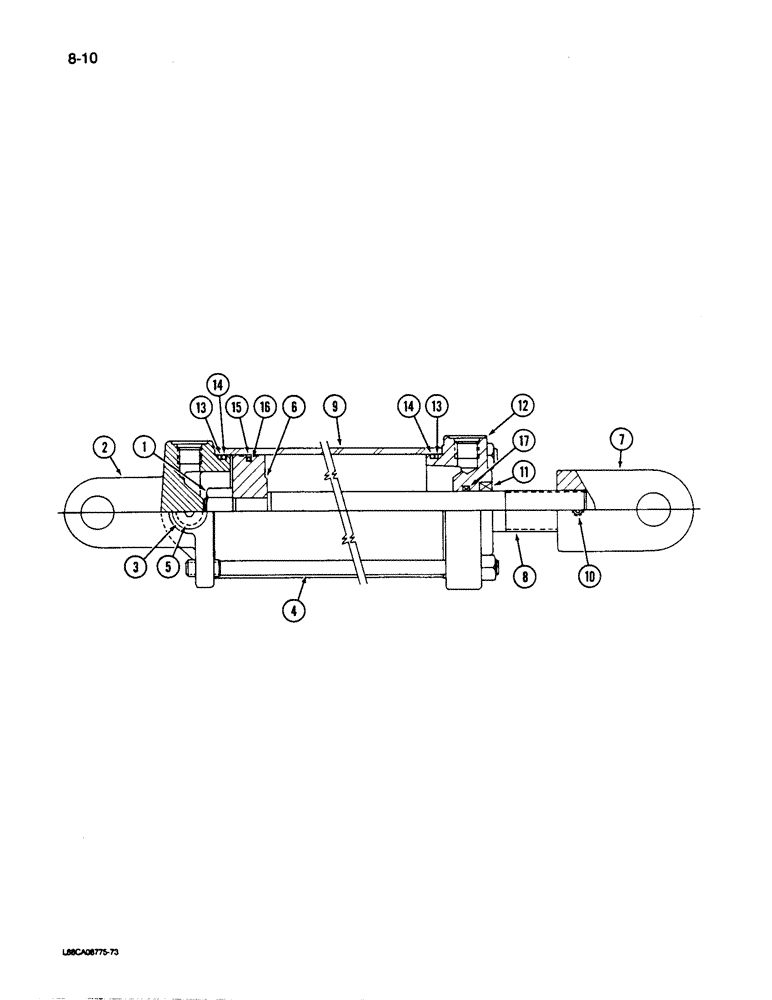

Запчасти Case IH 496 (8-10) - WHEEL LIFT CYLINDER 3-1/2 X 8 INCH RE-PHASING (08) - HYDRAULICS

1272147C92

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

CYLINDER ASSEMBLY - wing folding (Stamped on cylinder)

1шт.

1

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, Grade 8

1шт.

2

1923599C1

HEAD

- cylinder rear

1шт.

3

224582C1

PLUG

- hex socket, 3/4-16 inch, o-ring boss

1шт.

4

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

ROD - cylinder retaining

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

5

NSS

NOT SOLD SEPARAT

O-RING - 3/4 inch OD

1шт.

Part of cylinder repair kit P/N 84919C2

1шт.

6

145422C2

PISTON

- cylinder

1шт.

7

145233C1

CLEVIS,1/4" - 12

- rod

1шт.

8

145231C1

PISTON ROD

ROD - piston

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order 1272147C91)

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - set, hex socket, 3/8 NC x 3/8 inch

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of cylinder repair kit P/N 84919C2

1шт.

12

1272826C1

HEAD

- cylinder, front

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

Part of cylinder repair kit P/N 84919C2

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 x 3-1/2 inch

2шт.

Part of cylinder repair kit P/N 84919C2

1шт.

15

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

Part of cylinder repair kit P/N 84919C2

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 3 x 3-3/16 inch

1шт.

Part of cylinder repair kit P/N 84919C2

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of cylinder repair kit P/N 84919C2

1шт.

84919C2

GASKET KIT

KIT - cylinder repair, o-ring, Includes: Ref. 5, 11, 13, 14, 15, 16 and 17

1шт.
