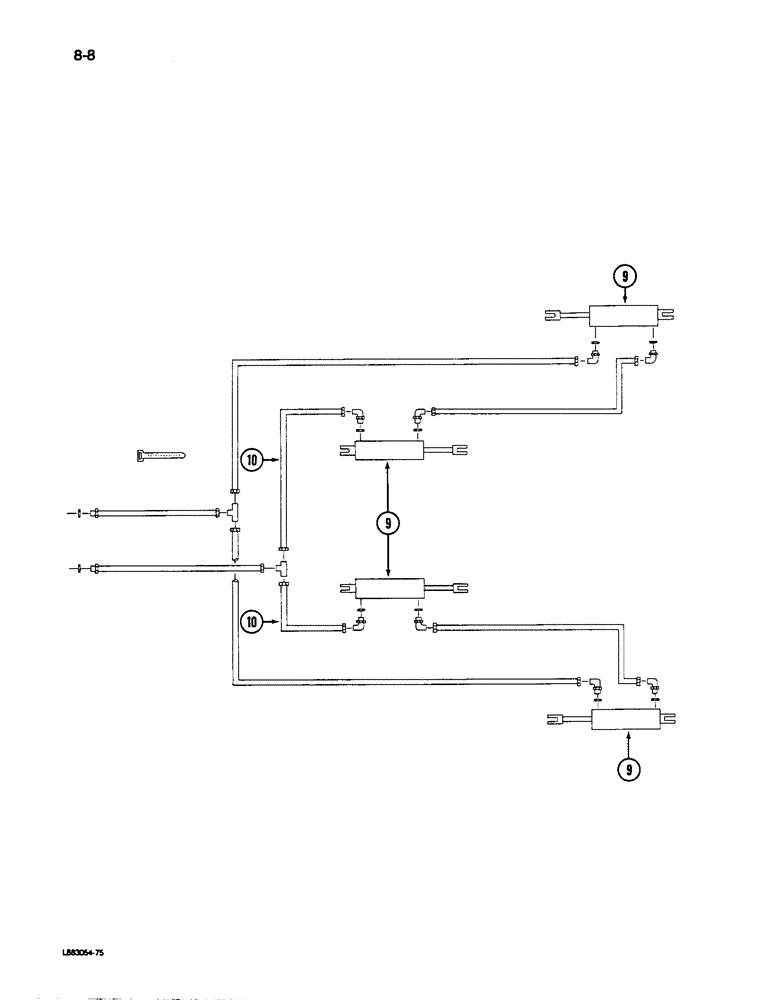

Запчасти Case IH 496 (8-08) - HYDRAULIC SYSTEM TRANSPORT, HYDRAULIC COUPLER (08) - HYDRAULICS

9

REF

INSTRUCTION

CYLINDER ASSEMBLY - transport, 3-1/2 x 8 inch (See Page 8-30)

4шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY - transport, 3-1/2 x 8 inch (See Page 8-32)

4шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY - transport, 3-1/2 x 8 inch (See Page 8-34)

4шт.

28544R1

PIN

- clevis, 1 x 3-1/2 inch

8шт.

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

8шт.

10

129672C2

HYDRAULIC HOSE

HOSE ASSEMBLY - 3/8 ID x 39 inch

2шт.

395149R1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread poppet type

1шт.

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male, 7/8-14 thread self sealing type

1шт.

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY - self sealing male, 7/8-14 thread (ISO Standard)

1шт.

1285718C2

QUICK MALE COUPLING

- self sealing male, 3/4-16 thread (ISO Standard)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Used with 7/8-14 thread coupler

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Used with 3/4"-16 thread coupler

1шт.

407045R1

FITTING

BUSHING - reducer, 3/4-16 x 7/8-14 thread (Adapt 3/4-16 fitting to 7/8-14 coupler)

1шт.

407545R1

FITTING

BUSHING - reducer, 7/8-14 x 3/4-16 thread (Adapt 7/8-14 fitting to 3/4-16 coupler)

1шт.
