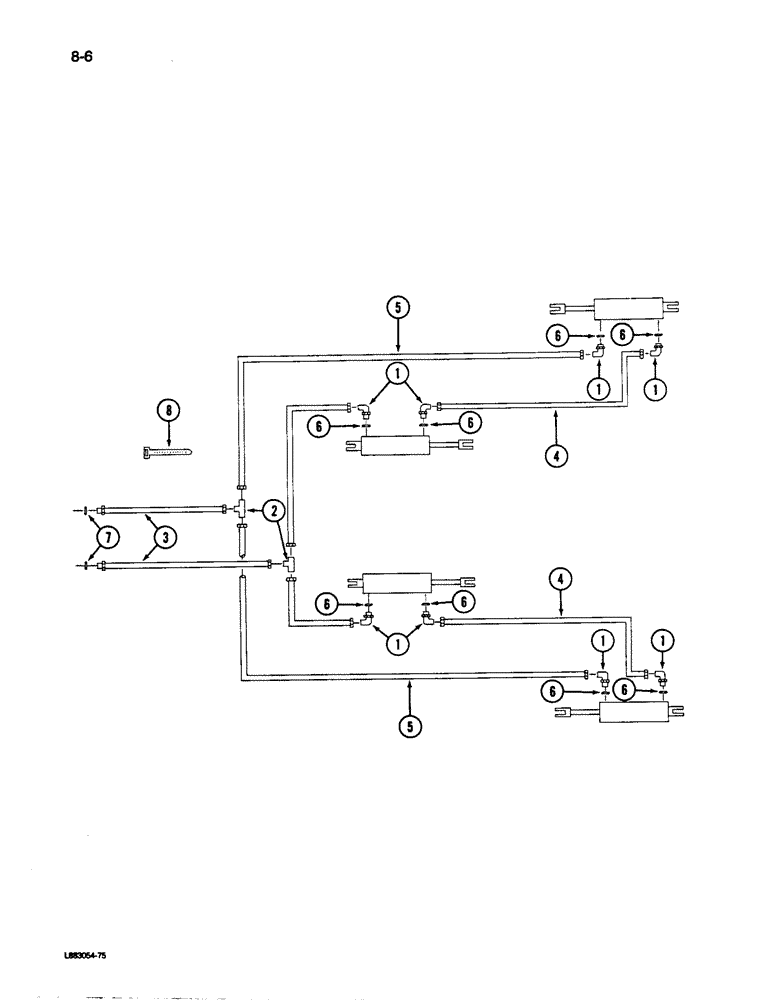

Запчасти Case IH 496 (8-06) - HYDRAULIC SYSTEM TRANSPORT (08) - HYDRAULICS

1

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flared x 3/4-16 inch o-ring boss (Used with 3/4-16 thread cylinder port)

8шт.

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj o-ring boss (Used with 9/16-18 thread cylinder port)

8шт.

2

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare

2шт.

2

673568R1

TEE

- 5/8 inch tube

2шт.

3

1284298C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 160 inch long (Replaces 1284304C1)

2шт.

1284307C1

ADAPTER

- hydraulic hose

2шт.

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short, 9/16-18 flared x 7/8-14 inch o-ring boss

2шт.

4

139655C2

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 155 inch long (Disk Harrow coded E, J, P, U and Z)

2шт.

4

129782C2

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 165 inch long (Disk Harrow coded A, F, K, Q and V)

2шт.

4

129759C2

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 180 inch long (Disk Harrow coded B, C, G, H, L, M, R, S, W and X)

2шт.

4

139654C2

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 125 inch long (Disk Harrow coded D, I, N, T and Y)

2шт.

5

129765C2

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 200 inch long (Disk Harrow coded A, F, K, Q and V)

2шт.

5

129759C2

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 180 inch long (Disk Harrow coded E, J, P, U and Z)

2шт.

5

129764C2

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 215 inch long (Disk Harrow coded B, C, G, H, L, M, R, S, W and X)

2шт.

5

139519C2

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 135 inch long (Disk Harrow coded D, I, N, T and Y)

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

8шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

8

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

6шт.

1252130C1

ADAPTER

- hydraulic, Serial Range: 3/4-16-9/16-18

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

8шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
